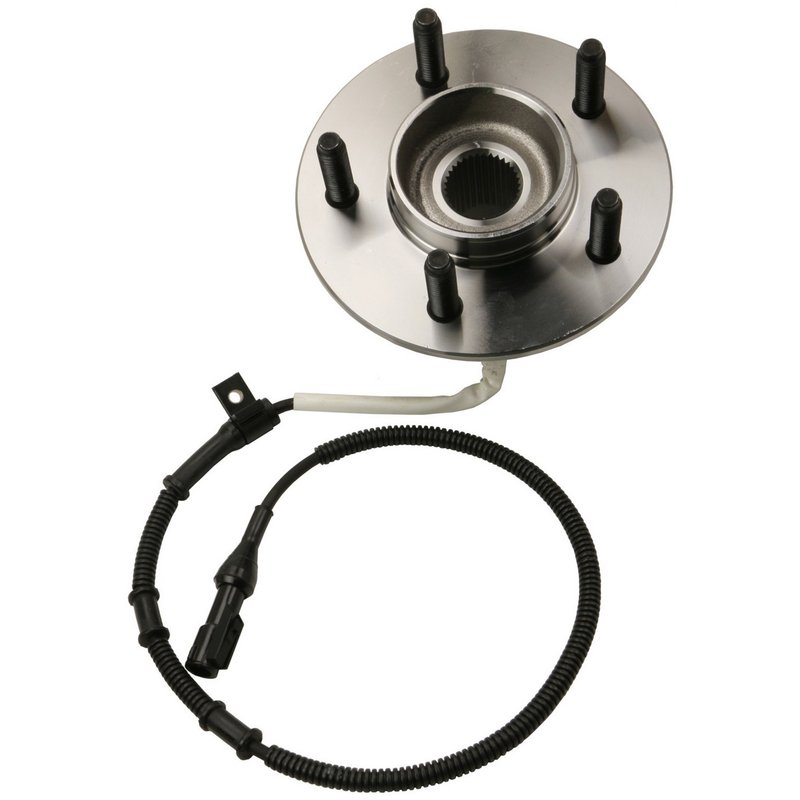

Moog 515029 Wheel Bearing and Hub Assembly - Front

Moog 515029 Wheel Bearing and Hub Assembly Overview

The Moog 515029 wheel bearing and hub assembly is engineered for reliable performance on Ford F-150 and F-150 Heritage models. Designed to meet OEM specifications, this assembly ensures proper fitment and durability for your vehicle's driveline system.

• 33 spline quantity for precise axle engagement
• 5 wheel studs for secure wheel mounting
• Triangular flange shape with 3 bolt holes
• Flange diameter of 181.0 mm and bolt circle diameter of 134.9 mm
• Includes anti-lock brake sensor for ABS functionality
• Wheel pilot diameter of 86.7 mm and brake pilot diameter of 89.9 mm
• Hub pilot diameter measures 99.3 mm with a flange offset of 49.2 mm

Technical Details and Specifications

The Moog 515029 wheel bearing and hub assembly is specifically designed for Ford F-150 and F-150 Heritage trucks, ensuring compatibility and optimal performance. The assembly features a 33 spline axle interface, which provides a secure connection to the drivetrain. The flange has a triangular shape with three bolt holes, supporting a 5-stud wheel configuration. The flange diameter measures 181 mm, while the bolt circle diameter is 134.9 mm (5.310 inches), matching factory specifications for proper wheel alignment and fitment.

This assembly also includes an integrated anti-lock brake sensor, maintaining the vehicle's ABS system functionality. The wheel pilot diameter is 86.7 mm, and the brake pilot diameter is 89.9 mm, which helps center the wheel and brake components accurately. The hub pilot diameter is 99.3 mm, and the flange offset is 49.2 mm, ensuring correct positioning relative to the suspension and brake system.

Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Ford F-150 and F-150 Heritage
• Resolves wheel vibration or noise caused by bearing wear
• Restores proper ABS sensor function with included anti-lock brake sensor
• Corrects wheel alignment issues related to hub or flange damage
• Prevents premature tire wear due to faulty hub assembly

Installation Notes and Tips

When installing the Moog 515029 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Remove the existing hub assembly carefully to avoid damage to surrounding components. Verify the spline count and flange bolt hole pattern match the replacement part. Connect the anti-lock brake sensor wiring properly to maintain ABS functionality. Torque all bolts to manufacturer specifications and check wheel stud tightness before finalizing installation.

Quality Assurance and Warranty

Moog manufactures the 515029 wheel bearing and hub assembly to meet or exceed OEM standards, providing reliable performance and durability. The part includes a pre-installed anti-lock brake sensor to maintain vehicle safety systems. Moog typically offers a limited warranty on their wheel bearing and hub assemblies; please refer to the product documentation or Moog's official resources for specific warranty details.
