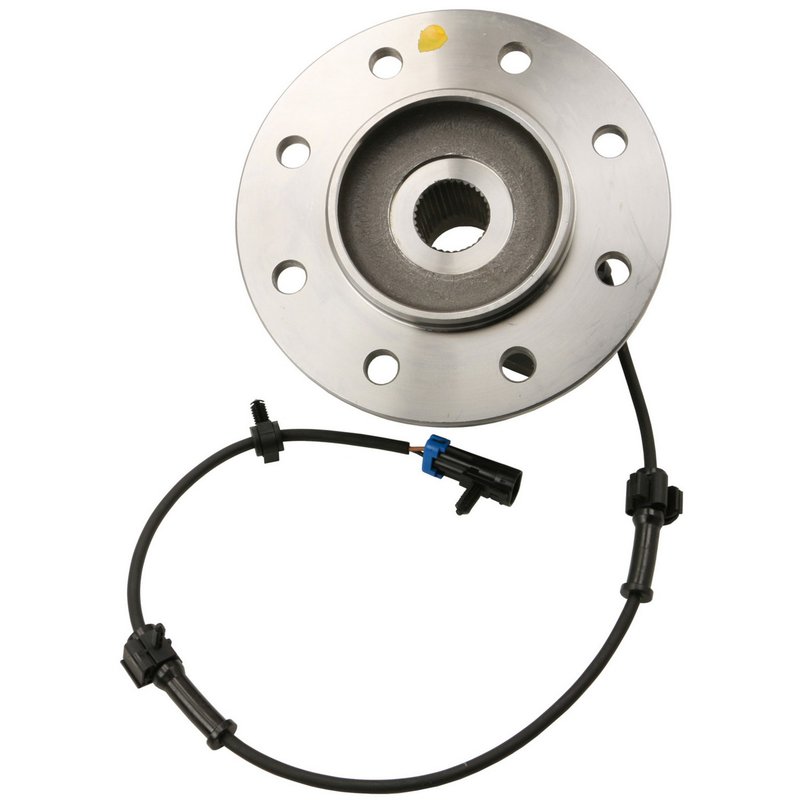

Moog 515041 Wheel Bearing and Hub Assembly - Front
| Brand | Moog 515041 |
|---|---|
| Position | Front |
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter | 6.500 |
| Bolt Circle Diameter | 165.100 |
| Brake Pilot Diameter | 137.100 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 208.000 |
| Flange Offset | 68.300 |
| Flange Shape | RECTANGLE |
| Hub Pilot Diameter | 105.800 |
| Spline Quantity | 33 |
| Wheel Pilot Diameter | 116.600 |
| Wheel Stud Quantity | 8 |
| Wheel Stud Size | 15.3 |
| Fits | Chevrolet and GMC · 41 vehicles |
OE-style hub assembly. Engineered for reliable performance and hassle-free installation.
Rigorous testing. Built with superior materials for dependable hub performance.
ABS sensor included. Integrated sensor simplifies installation and setup.
Cross-references Centric Parts 402.66003E, GMB 730-0218 and Mevotech BXT H515041 for the same application. See all 21.
MOOG 515041 Front Wheel Bearing Hub
The MOOG 515041 wheel bearing and hub assembly is built for front-end service on select Chevrolet and GMC trucks and SUVs. It combines OE-style fitment details with an ABS sensor included for a cleaner replacement on the front hub assembly.
Key Features
- Front wheel bearing and hub assembly for select Chevrolet and GMC applications
- Anti-lock brake sensor included
- 33 spline design
- 8 wheel stud hub configuration with 15.3 wheel stud size
- 4 flange bolt holes and rectangular flange shape
- Hub pilot diameter: 105.800 mm
- Wheel pilot diameter: 116.600 mm
- Brake pilot diameter: 137.100 mm
- Flange diameter: 208.000 mm
- Bolt circle diameter: 165.100 mm / 6.500 in
Detailed Description
MOOG 515041 is a front wheel bearing and hub assembly engineered for service on 1996-2000 Chevrolet K2500 and K3500, 1996-2000 GMC K2500 and K3500, 1996-1999 Chevrolet K1500 with 8 stud hub, 1997 and 1999 Chevrolet K1500 Suburban, 1996-1999 Chevrolet K2500 Suburban, 1996-1999 GMC K1500 with 8 stud hub, 1997-1999 GMC K1500 Suburban with 8 stud hub, and 1996-1999 GMC K2500 Suburban. It is a direct-fit front hub solution for heavy-duty 4x4 and Suburban platforms that need accurate hub dimensions and ABS sensor integration. This part cross-references SKF BR930237 and Timken SP580302 for the same application.
What It Helps Solve
- Front wheel bearing noise or rough rotation
- ABS warning light concerns related to the hub sensor
- Wheel looseness caused by hub wear
- Vibration or play at the front wheel assembly
- Fitment issues when replacing a worn OE-style hub on Chevrolet K2500, GMC K3500, and related models
Installation Notes and Tips
Verify the front axle application, stud pattern, and hub dimensions before installation. Confirm the vehicle uses the 8 stud hub configuration where required, and compare the existing ABS sensor setup to the replacement part before service. Always inspect mating surfaces, fasteners, and related brake components during hub replacement.
Quality Assurance
MOOG hub assemblies use tested materials and application-focused engineering to support reliable service and straightforward installation. The 515041 is built with the fitment and sensor details needed for front hub replacement on the listed Chevrolet and GMC models.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2000 | Chevrolet | K2500 | — | — | Front | — |
| 2000 | Chevrolet | K3500 | — | — | Front | — |
| 2000 | GMC | K2500 | — | — | Front | — |
| 2000 | GMC | K3500 | — | — | Front | — |
| 1999 | Chevrolet | K1500 | — | — | Front | with 8 Stud Hub |
| 1999 | Chevrolet | K1500 Suburban | 6.5L | V8 | Front | — |
| 1999 | Chevrolet | K2500 | — | — | Front | — |
| 1999 | Chevrolet | K2500 Suburban | — | — | Front | — |
| 1999 | Chevrolet | K3500 | — | — | Front | — |
| 1999 | GMC | K1500 | — | — | Front | with 8 Stud Hub |
| 1999 | GMC | K1500 Suburban | 6.5L | V8 | Front | with 8 Stud Hub |
| 1999 | GMC | K2500 | — | — | Front | — |
| 1999 | GMC | K2500 Suburban | — | — | Front | — |
| 1999 | GMC | K3500 | — | — | Front | — |
| 1998 | Chevrolet | K1500 | — | — | Front | with 8 Stud Hub |
| 1998 | Chevrolet | K2500 | — | — | Front | — |
| 1998 | Chevrolet | K2500 Suburban | — | — | Front | — |
| 1998 | Chevrolet | K3500 | — | — | Front | — |
| 1998 | GMC | K1500 | — | — | Front | with 8 Stud Hub |
| 1998 | GMC | K1500 Suburban | 6.5L | V8 | Front | with 8 Stud Hub |
| 1998 | GMC | K2500 | — | — | Front | — |
| 1998 | GMC | K2500 Suburban | — | — | Front | — |
| 1998 | GMC | K3500 | — | — | Front | — |
| 1997 | Chevrolet | K1500 | — | — | Front | with 8 Stud Hub |
| 1997 | Chevrolet | K1500 Suburban | 6.5L | V8 | Front | — |
| 1997 | Chevrolet | K2500 | — | — | Front | — |
| 1997 | Chevrolet | K2500 Suburban | — | — | Front | — |
| 1997 | Chevrolet | K3500 | — | — | Front | — |
| 1997 | GMC | K1500 | — | — | Front | with 8 Stud Hub |
| 1997 | GMC | K1500 Suburban | 6.5L | V8 | Front | with 8 Stud Hub |
| 1997 | GMC | K2500 | — | — | Front | — |
| 1997 | GMC | K2500 Suburban | — | — | Front | — |
| 1997 | GMC | K3500 | — | — | Front | — |
| 1996 | Chevrolet | K1500 | — | — | Front | with 8 Stud Hub |
| 1996 | Chevrolet | K2500 | — | — | Front | — |
| 1996 | Chevrolet | K2500 Suburban | — | — | Front | — |
| 1996 | Chevrolet | K3500 | — | — | Front | — |
| 1996 | GMC | K1500 | — | — | Front | with 8 Stud Hub |
| 1996 | GMC | K2500 | — | — | Front | — |
| 1996 | GMC | K2500 Suburban | — | — | Front | — |
| 1996 | GMC | K3500 | — | — | Front | — |
