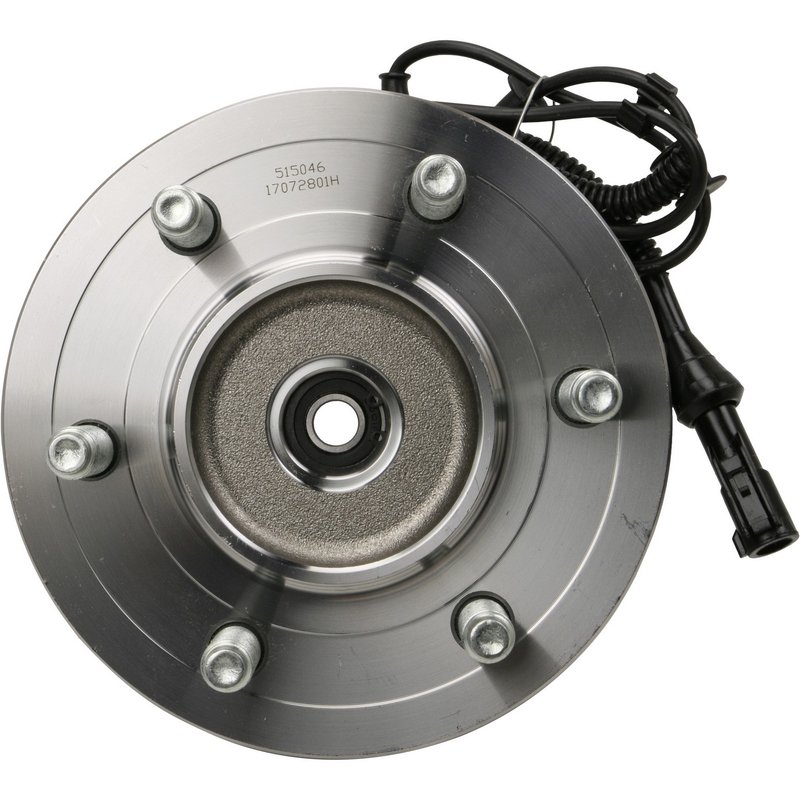

Moog 515046 Wheel Bearing and Hub Assembly - Front

Moog 515046 Wheel Bearing and Hub Assembly Overview

The Moog 515046 wheel bearing and hub assembly is engineered for reliable performance on Ford F-150 and F-150 Heritage models. Designed to meet OEM specifications, this assembly ensures proper fitment and durability for your vehicle's driveline system.

• Compatible with Ford F-150 and F-150 Heritage
• Includes anti-lock brake sensor for ABS functionality
• 45 spline quantity for secure axle engagement
• 6 wheel studs and 4 flange bolt holes for stable mounting
• Hub pilot diameter of 99.3 mm for precise alignment
• Flange diameter of 183 mm and bolt circle diameter of 135 mm
• Brake pilot diameter of 90 mm and wheel pilot diameter of 86.8 mm
• Flange offset of 45.5 mm for correct positioning

Technical Details and Specifications

The Moog 515046 wheel bearing and hub assembly features a 45 spline quantity, ensuring a secure connection with the axle shaft. It includes six wheel studs and four flange bolt holes, providing a robust mounting interface. The hub pilot diameter measures 99.3 mm, which aids in precise hub alignment and reduces vibration. The flange diameter is 183 mm with a bolt circle diameter of 135 mm, matching the OEM specifications for Ford F-150 and F-150 Heritage models. Additionally, the assembly incorporates an anti-lock brake sensor, maintaining the integrity of the vehicle's ABS system. The brake pilot diameter is 90 mm, and the wheel pilot diameter is 86.8 mm, both critical for proper brake and wheel fitment. The flange offset of 45.5 mm ensures the hub sits correctly relative to the suspension components.

Applications and Problem Solving

This wheel bearing and hub assembly is designed specifically for Ford F-150 and F-150 Heritage trucks, addressing common driveline and wheel hub issues. It is used to:

• Replace worn or damaged wheel bearings to restore smooth wheel rotation
• Resolve wheel hub noise caused by bearing wear or damage
• Maintain proper ABS sensor function with the included anti-lock brake sensor
• Correct wheel alignment issues related to hub pilot diameter wear
• Ensure secure wheel mounting with the correct number of studs and bolt holes

Installation Notes and Tips

When installing the Moog 515046 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Clean the mounting surface thoroughly to prevent misalignment. Verify the spline count and pilot diameters match the axle and brake components. Connect the anti-lock brake sensor carefully to avoid damage. Torque all flange bolts and wheel studs to manufacturer specifications to maintain safety and performance.

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The 515046 part number undergoes rigorous quality control to ensure proper fit and function on Ford F-150 and F-150 Heritage models. Moog typically offers a limited warranty covering defects in materials and workmanship; please refer to Moog's official warranty documentation for specific terms.
