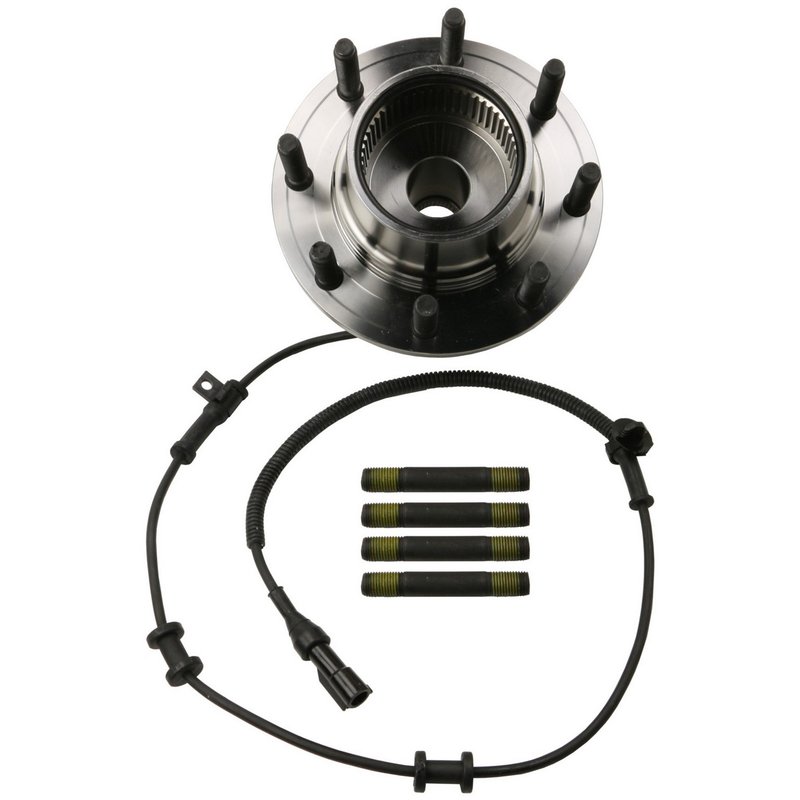

Moog 515056 Wheel Bearing and Hub Assembly - Front

Overview of Moog 515056 Wheel Bearing and Hub Assembly

The Moog 515056 wheel bearing and hub assembly is engineered for reliable performance in Ford Excursion, F-250 Super Duty, and F-350 Super Duty models. Designed to meet precise specifications, this assembly ensures proper fit and function for your vehicle's driveline system.

• Compatible with Ford Excursion, F-250 Super Duty, and F-350 Super Duty
• Includes anti-lock brake sensor for enhanced safety
• Features 55 spline quantity for secure axle engagement
• Equipped with 8 wheel studs and 4 flange bolt holes
• Square flange shape with 54.5 mm flange offset
• Wheel pilot diameter of 125 mm and brake pilot diameter of 129 mm
• Hub pilot diameter measures 113.9 mm for precise alignment
• Bolt circle diameter of 170 mm (6.693 inches) for proper mounting

Technical Specifications and Features

The Moog 515056 wheel bearing and hub assembly is designed with a 55 spline quantity, ensuring a strong connection between the axle and hub. The assembly includes 8 wheel studs and 4 flange bolt holes arranged on a 170 mm bolt circle diameter, providing secure mounting to the vehicle. The square flange shape with a 54.5 mm flange offset supports proper wheel positioning and load distribution. Additionally, the wheel pilot diameter of 125 mm and brake pilot diameter of 129 mm help maintain accurate wheel and brake alignment. The hub pilot diameter of 113.9 mm further contributes to precise fitment. This assembly also includes an anti-lock brake sensor, which integrates with the vehicle’s ABS system to monitor wheel speed and enhance braking performance.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is specifically compatible with the following Ford models:

• Ford Excursion
• Ford F-250 Super Duty
• Ford F-350 Super Duty

Part number 515056 is designed to meet the exact requirements of these vehicles, ensuring proper fit and function within the driveline and axle system.

Common Issues Addressed by This Assembly

• Wheel bearing noise or roughness during operation
• Excessive wheel play or looseness
• ABS sensor malfunction or warning lights
• Uneven tire wear due to hub misalignment
• Vibration or wobbling at higher speeds

Installation Notes and Tips

When installing the Moog 515056 wheel bearing and hub assembly, ensure the following:

• Verify compatibility with your specific Ford model and year
• Inspect the axle shaft splines and clean before installation
• Torque flange bolts and wheel studs to manufacturer specifications
• Confirm proper connection of the anti-lock brake sensor wiring
• Check for smooth rotation and absence of play after installation

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards. The 515056 part undergoes rigorous quality control to ensure durability and reliable performance. This product includes a limited warranty covering defects in materials and workmanship under normal use conditions. Refer to Moog’s warranty policy for specific terms and coverage details.
