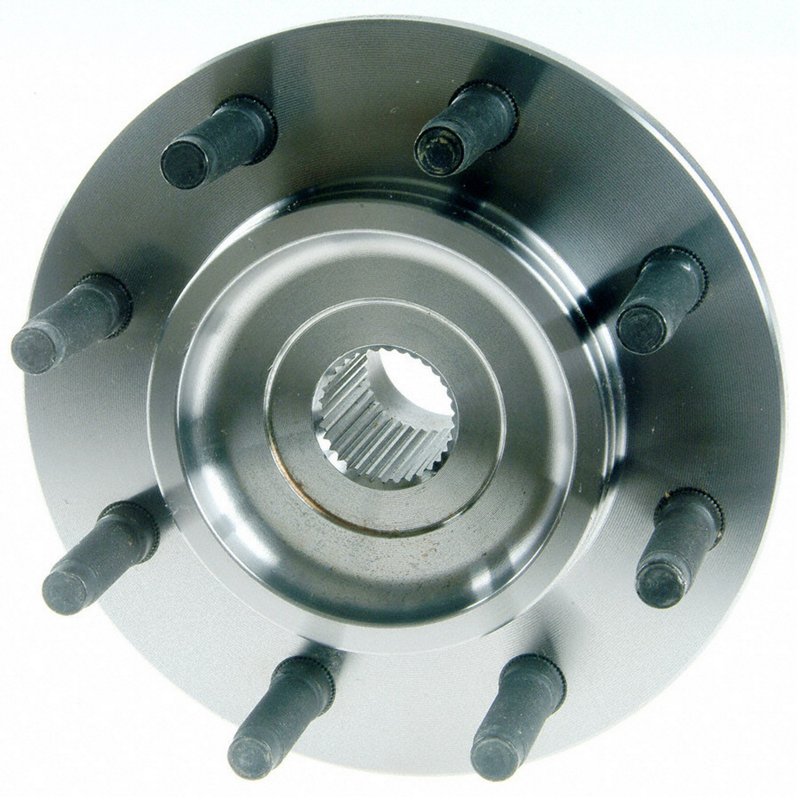

Moog 515062 Wheel Bearing and Hub Assembly - Front
| Brand | Moog 515062 |
|---|---|
| Position | Front |
| Anti Lock Brake Sensor Included | No |
| Bolt Circle Diameter | 165.100 |
| Brake Pilot Diameter | 122.000 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 205.000 |
| Flange Offset | 54.300 |
| Hub Pilot Diameter | 113.800 |
| Spline Quantity | 33 |
| Wheel Pilot Diameter | 120.900 |
| Wheel Stud Quantity | 8 |
| Fits | Dodge · 2 vehicles |
Fast, hassle-free installation. MOOG problem-solving innovations simplify the install process.
Rigorous testing. Built with superior materials for reliable performance you can count on.
Wheel bearing and hub assembly. A complete hub assembly for driveline and axle applications.
Cross-references Centric Parts 400.67010E, GMB 799-0169 and Mevotech BXT H515062 for the same application. See all 14.
Front Wheel Bearing Hub Assembly for Ram 2500
MOOG 515062 is a front wheel bearing and hub assembly built for 2000-2001 Dodge Ram 2500 applications. It combines the hub, bearing, and mounting interface into one service part for a direct replacement on the front axle.
- Fits 2000-2001 Dodge Ram 2500, front
- Wheel bearing and hub assembly for driveline and axle service
- 33-spline hub design
- 4 flange bolt holes for mounting
- 8 wheel studs
- Anti-lock brake sensor not included
- Flange diameter: 205.000 mm
- Bolt circle diameter: 165.100 mm
- Wheel pilot diameter: 120.900 mm
- Brake pilot diameter: 122.000 mm
- Hub pilot diameter: 113.800 mm
- Flange offset: 54.300 mm
Built for Front-End Service
This MOOG hub assembly is engineered with materials selected for durability and tested for dependable operation. MOOG also focuses on problem-solving design details that help make installation more straightforward during front hub replacement on a Dodge Ram 2500.
This part cross-references Timken HA590503 and SKF BR930503 for the same application.
Common Problems This Part Can Address
- Front wheel bearing noise or growling from the hub area
- Excessive wheel play or looseness at the front axle
- Uneven hub wear that affects steering feel
- Service replacement for a worn front hub assembly on a Dodge Ram 2500
- Brake or wheel mounting issues related to a damaged hub flange
Installation Notes
Verify spline count, bolt circle diameter, flange dimensions, and pilot diameters before installation. Confirm front-position fitment for 2000-2001 Dodge Ram 2500 and inspect related components such as axle hardware, brake parts, and wheel mounting surfaces during service.
Quality Assurance
MOOG hub assemblies are backed by material selection and testing standards intended to support reliable service life and consistent fitment. Part number 515062 is built as a direct replacement hub assembly for the listed Ram 2500 front application.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2001 | Dodge | Ram 2500 | 4WD | Front | — |
| 2000 | Dodge | Ram 2500 | 4WD | Front | — |
