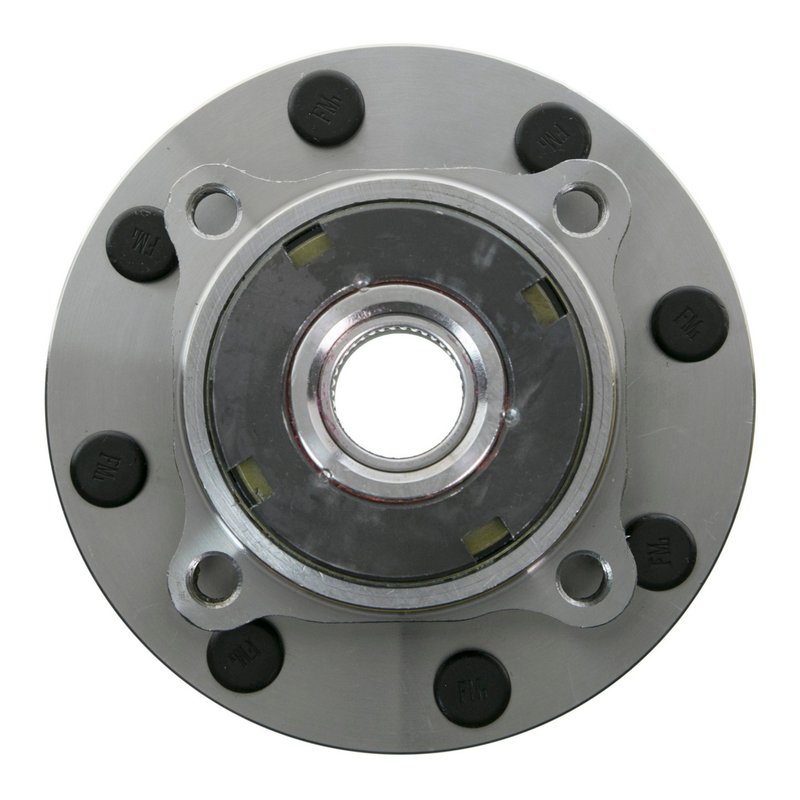

Moog 515076 Wheel Bearing and Hub Assembly - Front

Moog 515076 Wheel Bearing and Hub Assembly Overview

The Moog 515076 wheel bearing and hub assembly is engineered for reliable performance on Ford F-250 Super Duty and F-350 Super Duty trucks. Designed to meet OEM specifications, this assembly ensures proper fitment and durability for heavy-duty applications.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty models
• 55 spline quantity for secure axle engagement
• 8 wheel studs and 4 flange bolt holes for stable wheel mounting
• Square flange shape with a flange diameter of 203 mm
• Wheel pilot diameter of 125 mm and brake pilot diameter of 129 mm for precise alignment
• Flange offset of 51.5 mm and bolt circle diameter of 170 mm (6.693 inches)
• Hub pilot diameter of 113.9 mm for accurate hub positioning
• Does not include an anti-lock brake sensor

Detailed Product Description

The Moog 515076 wheel bearing and hub assembly is specifically designed for Ford F-250 Super Duty and F-350 Super Duty trucks, providing a direct replacement that maintains factory specifications. The assembly features a 55 spline axle interface, ensuring a secure connection to the driveline. With 8 wheel studs and 4 flange bolt holes arranged on a 170 mm bolt circle diameter, this hub assembly offers stable and reliable wheel mounting. The square flange shape and 203 mm flange diameter contribute to proper load distribution and structural integrity.

Precision dimensions such as the 125 mm wheel pilot diameter, 129 mm brake pilot diameter, and 113.9 mm hub pilot diameter ensure accurate alignment with the wheel and brake components. The flange offset of 51.5 mm is designed to maintain correct wheel positioning relative to the suspension and steering components. Note that this assembly does not include an anti-lock brake sensor, so it is intended for vehicles without ABS sensor integration at the hub.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearings on Ford F-250 Super Duty and F-350 Super Duty
• Eliminates wheel hub noise caused by bearing wear or failure
• Resolves wheel vibration issues related to hub assembly defects
• Restores proper wheel alignment and stability
• Addresses wheel stud or flange bolt hole damage for secure wheel attachment

Installation Notes and Tips

• Ensure compatibility with Ford F-250 Super Duty and F-350 Super Duty models before installation
• Verify spline count (55) and flange bolt hole quantity (4) match vehicle specifications
• Use proper torque specifications for wheel studs and flange bolts to avoid premature wear
• Inspect related suspension and brake components during installation for overall system integrity
• Professional installation is recommended to maintain safety and performance standards

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The 515076 part number undergoes rigorous quality control to ensure precise fit and function on Ford F-250 Super Duty and F-350 Super Duty trucks. While specific warranty details may vary, Moog typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
