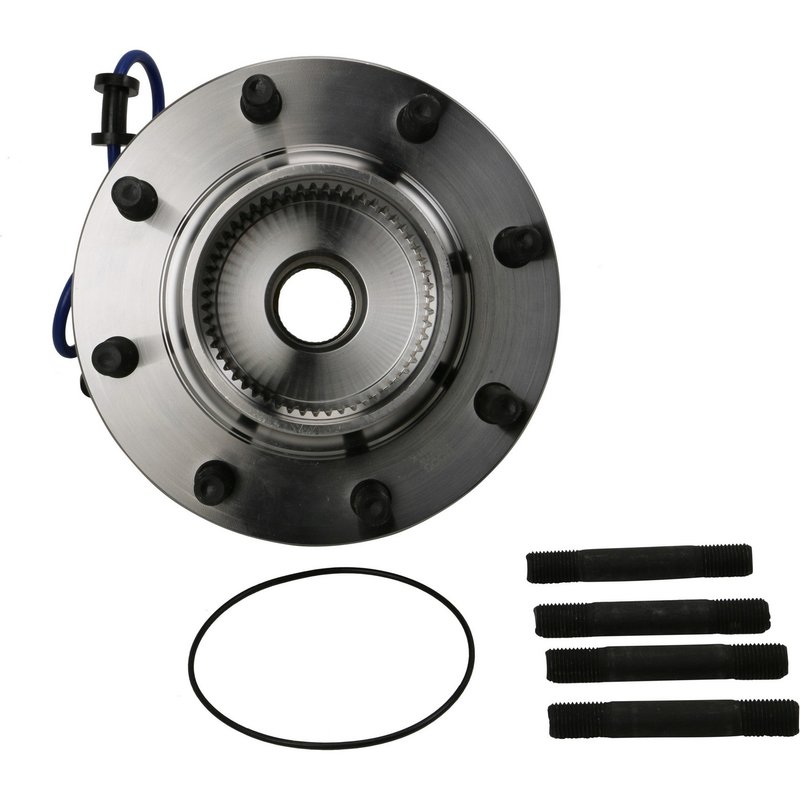

Moog 515077 Wheel Bearing and Hub Assembly - Front

Overview of Moog 515077 Wheel Bearing and Hub Assembly

The Moog 515077 wheel bearing and hub assembly is engineered for Ford F-250 Super Duty and F-350 Super Duty trucks. Designed to meet OEM specifications, this assembly ensures reliable performance and precise fitment for your heavy-duty vehicle.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty models
• Includes anti-lock brake sensor for ABS functionality
• Features 55 spline quantity for secure axle engagement
• Equipped with 8 wheel studs and 4 flange bolt holes
• Flange diameter of 203 mm with a square flange shape
• Wheel pilot diameter of 124.9 mm and brake pilot diameter of 129 mm
• Hub pilot diameter measures 113.8 mm for accurate alignment
• Flange offset of 51.5 mm and bolt circle diameter of 170 mm (6.693 inches)

Technical Details and Specifications

The Moog 515077 wheel bearing and hub assembly is designed with a 55 spline quantity, ensuring a strong connection to the axle shaft. The assembly includes 8 wheel studs and 4 flange bolt holes arranged on a 170 mm bolt circle diameter, providing secure mounting to the vehicle hub. The flange has a square shape with a diameter of 203 mm and an offset of 51.5 mm, which aligns precisely with the Ford F-250 Super Duty and F-350 Super Duty brake components. The wheel pilot diameter of 124.9 mm and brake pilot diameter of 129 mm help maintain proper wheel and brake rotor positioning, while the hub pilot diameter of 113.8 mm ensures accurate hub centering. Additionally, this assembly comes with an integrated anti-lock brake sensor to maintain ABS system functionality.

Applications and Problem Solving

• Replaces worn or damaged wheel bearing and hub assemblies on Ford F-250 Super Duty and F-350 Super Duty trucks
• Addresses wheel vibration or noise caused by bearing wear
• Restores proper ABS sensor operation with included anti-lock brake sensor
• Corrects wheel alignment issues related to hub pilot or flange damage
• Prevents premature tire wear and improves vehicle handling

Installation Notes and Tips

• Ensure compatibility with Ford F-250 Super Duty and F-350 Super Duty models before installation
• Use proper torque specifications for flange bolts and wheel studs to avoid damage
• Inspect axle splines and clean mating surfaces prior to assembly
• Verify ABS sensor connection and functionality after installation
• Professional installation is recommended for accurate fitment and safety

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards, providing reliable durability and performance. The 515077 part number undergoes rigorous quality control to ensure precise fit and function. While specific warranty details may vary, Moog typically offers coverage against defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
