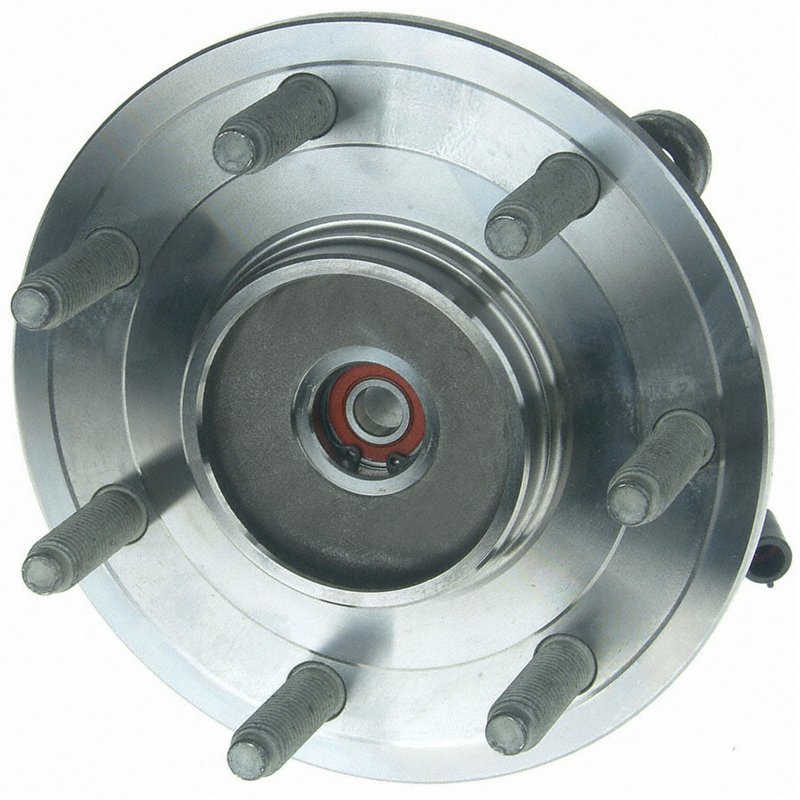

Moog 515080 Wheel Bearing and Hub Assembly - Front

Overview of Moog 515080 Wheel Bearing and Hub Assembly

The Moog 515080 wheel bearing and hub assembly is engineered for reliable performance on Ford F-150 trucks. Designed to meet OEM specifications, this assembly ensures proper fitment and function for your vehicle's driveline and axle system.

• Compatible with Ford F-150 models
• Includes anti-lock brake sensor for ABS functionality
• 45 spline quantity for secure axle engagement
• 7 wheel studs and 4 flange bolt holes for stable wheel mounting
• Modified flange shape with 46.5 mm flange offset
• Precise pilot diameters: wheel pilot 86.8 mm, brake pilot 90 mm, hub pilot 99.3 mm
• Flange diameter of 190 mm and bolt circle diameter of 150 mm (5.906 inches)

Technical Details and Specifications

The Moog 515080 wheel bearing and hub assembly features a 45 spline count, ensuring a secure connection to the axle shaft. The assembly includes seven wheel studs and four flange bolt holes, providing a robust mounting interface for the wheel. The modified flange shape and 46.5 mm flange offset are designed to maintain proper wheel alignment and clearance. Precise pilot diameters—86.8 mm for the wheel pilot, 90 mm for the brake pilot, and 99.3 mm for the hub pilot—help ensure accurate centering of the wheel and brake components. Additionally, the flange diameter measures 190 mm, with a bolt circle diameter of 150 mm (5.906 inches), matching the specifications required for Ford F-150 applications. This assembly also includes an anti-lock brake sensor, supporting the vehicle's ABS system for enhanced safety.

Applications and Problem Resolution

This wheel bearing and hub assembly is specifically compatible with Ford F-150 trucks, providing a direct replacement for worn or damaged components. It addresses several common issues, including:

• Wheel bearing noise or roughness during operation
• Excessive wheel play or looseness
• ABS sensor malfunctions related to hub assembly
• Uneven tire wear caused by improper wheel alignment
• Vibration or wobbling at the wheel hub

Installation Notes and Tips

When installing the Moog 515080 assembly, ensure the vehicle is securely lifted and supported. Verify that the spline count and pilot diameters match the axle and wheel components. Proper torque specifications should be followed for the flange bolts and wheel studs to maintain safety and performance. The included anti-lock brake sensor must be connected correctly to preserve ABS functionality. It is recommended to inspect related components such as brake rotors and calipers during installation.

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards, providing dependable performance and durability. The 515080 part number undergoes rigorous quality control to ensure fitment accuracy and long service life. While specific warranty details may vary, Moog typically offers coverage against defects in materials and workmanship, supporting professional repair and maintenance needs.
