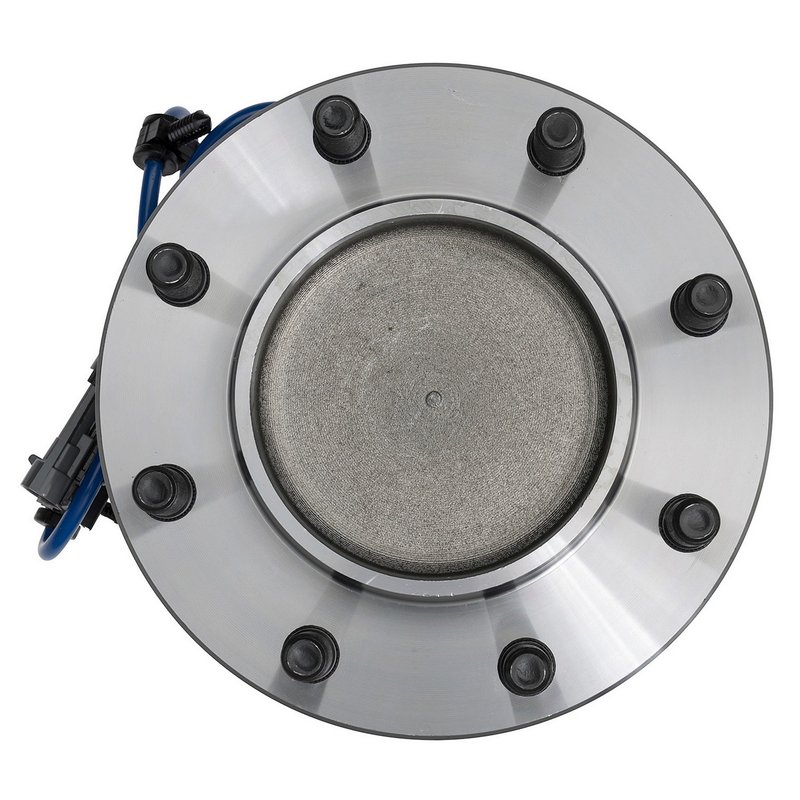

Moog 515087 Wheel Bearing and Hub Assembly - Front
| Brand | Moog 515087 |
|---|---|
| Position | Front |
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter | 6.500 |
| Bolt Circle Diameter | 165.100 |
| Brake Pilot Diameter | 117.900 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 199.300 |
| Flange Offset | 58.400 |
| Flange Shape | SQUARE |
| Hub Pilot Diameter | 105.800 |
| Wheel Pilot Diameter | 116.700 |
| Wheel Stud Quantity | 8 |
| Fits | Chevrolet and GMC · 14 vehicles |
Fast, hassle-free installation. MOOG problem-solving design helps make replacement straightforward.
Reliable performance. Backed by superior materials and rigorous testing.
Wheel bearing and hub assembly. Complete hub solution for driveline and axle service.
Cross-references Centric Parts 402.66012E, Mevotech BXT H515087 and Raybestos Brakes 715087 for the same application. See all 18.
Front Wheel Bearing Hub Assembly
MOOG 515087 is a front wheel bearing and hub assembly built for the Chevrolet Silverado 3500 and GMC Sierra 3500 applications listed below. It combines a hub assembly design with an integrated ABS sensor for direct replacement service on 2001-2007 heavy-duty front axle applications.
Key Features
- Front wheel bearing and hub assembly for Chevrolet Silverado 3500 and GMC Sierra 3500 fitments
- Integrated anti-lock brake sensor included
- 8 wheel studs with a 6.500 bolt circle diameter
- 4 flange bolt holes with a square flange shape
- Hub pilot diameter: 105.800 mm
- Wheel pilot diameter: 116.700 mm
- Brake pilot diameter: 117.900 mm
- Flange diameter: 199.300 mm
- Flange offset: 58.400 mm
Detailed Description
MOOG 515087 is engineered for front-end service where precise hub support and consistent wheel mounting are required. Backed by quality materials and testing, this hub assembly is built to deliver dependable operation and straightforward installation on the specified Chevrolet Silverado 3500 and GMC Sierra 3500 front positions. This part cross-references SKF BR930667 and Timken SP580311 for the same application.
What It Helps Solve
- Wheel bearing noise from a worn front hub assembly
- ABS warning light concerns related to a failed hub sensor
- Front wheel looseness or play caused by hub wear
- Uneven wheel mounting issues from damaged hub pilot surfaces
- Brake and driveline vibration traced to hub assembly wear
Installation Notes and Tips
Fits 2001-2006 Chevrolet Silverado 3500, front; 2007 Chevrolet Silverado 3500 Classic, front; 2001-2006 GMC Sierra 3500, front; and 2007 GMC Sierra 3500 Classic, front. Verify flange bolt pattern, pilot diameters, and ABS sensor connection before installation. Confirm the vehicle’s front hub configuration matches the listed dimensions and position.
Quality Assurance
MOOG hub assemblies are built with tested materials and application-focused engineering to support reliable service life and consistent fitment on the listed Chevrolet Silverado 3500 and GMC Sierra 3500 front applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2007 | Chevrolet | Silverado 3500 Classic | RWD | Front | — |
| 2007 | GMC | Sierra 3500 Classic | RWD | Front | — |
| 2006 | Chevrolet | Silverado 3500 | RWD | Front | — |
| 2006 | GMC | Sierra 3500 | RWD | Front | — |
| 2005 | Chevrolet | Silverado 3500 | RWD | Front | — |
| 2005 | GMC | Sierra 3500 | RWD | Front | — |
| 2004 | Chevrolet | Silverado 3500 | RWD | Front | — |
| 2004 | GMC | Sierra 3500 | RWD | Front | — |
| 2003 | Chevrolet | Silverado 3500 | RWD | Front | — |
| 2003 | GMC | Sierra 3500 | RWD | Front | — |
| 2002 | Chevrolet | Silverado 3500 | RWD | Front | — |
| 2002 | GMC | Sierra 3500 | RWD | Front | — |
| 2001 | Chevrolet | Silverado 3500 | RWD | Front | — |
| 2001 | GMC | Sierra 3500 | RWD | Front | — |
| No rows match your filter. | |||||
