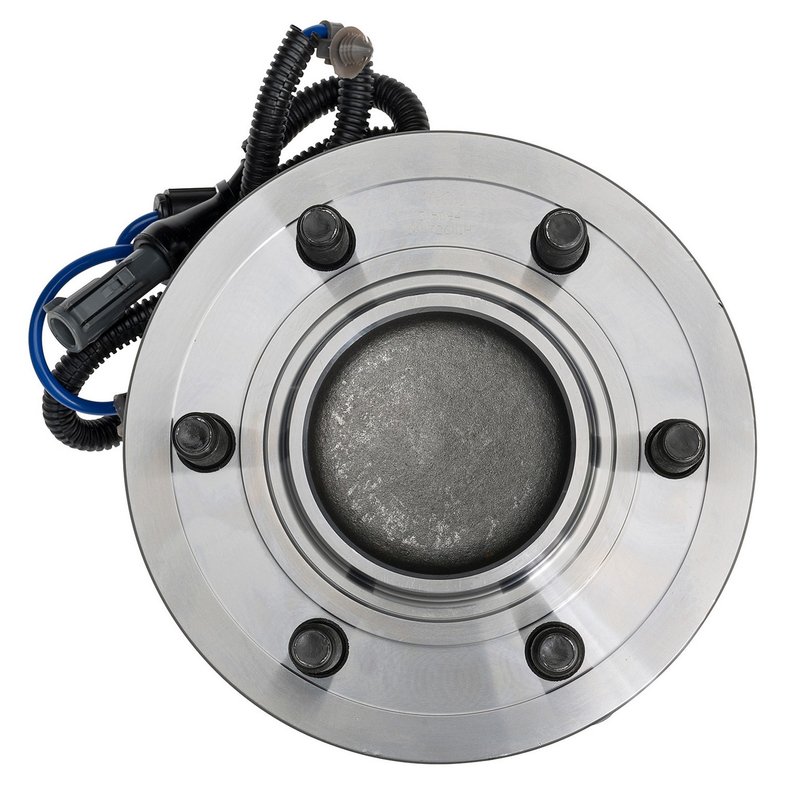

Moog 515094 Wheel Bearing and Hub Assembly - Front

Moog 515094 Wheel Bearing and Hub Assembly Overview

The Moog 515094 wheel bearing and hub assembly is engineered for reliable performance in Ford Expedition and Lincoln Navigator vehicles. Designed to meet OEM specifications, this assembly ensures proper fit and function for driveline and axle applications.

• Flange bolt hole quantity: 4 for secure mounting
• Wheel pilot diameter: 86.8 mm for precise wheel alignment
• Brake pilot diameter: 90.0 mm to support brake component fitment
• Wheel stud quantity: 6 for stable wheel attachment
• Hub pilot diameter: 99.3 mm ensuring correct hub positioning
• Modified flange shape with 45.6 mm flange offset
• Flange diameter: 183.0 mm and bolt circle diameter: 135.0 mm (5.315 inches)
• Includes anti-lock brake sensor for ABS functionality

Technical Details and Compatibility

This Moog wheel bearing and hub assembly (part number 515094) is specifically designed for use with Ford Expedition and Lincoln Navigator models. The assembly features a modified flange shape and precise pilot diameters to maintain proper wheel and brake alignment. The inclusion of an anti-lock brake sensor supports the vehicle’s ABS system, ensuring safety and performance. With six wheel studs and four flange bolt holes, this hub assembly provides a secure and stable connection between the wheel and axle.

Applications and Problem Resolution

This wheel bearing and hub assembly is used to replace worn or damaged components in the front or rear driveline of compatible vehicles. It addresses several common issues:

• Eliminates wheel bearing noise and roughness
• Resolves wheel vibration and wobble
• Restores proper ABS sensor function
• Corrects wheel alignment problems caused by hub wear
• Prevents premature tire wear due to hub instability

Installation Notes and Tips

Installation of the Moog 515094 hub assembly requires proper torque specifications for the flange bolts and wheel studs. Ensure the mating surfaces are clean and free of debris before installation. The anti-lock brake sensor must be connected correctly to maintain ABS functionality. It is recommended to inspect related suspension and brake components during replacement to ensure overall system integrity.

Quality Assurance and Warranty

Moog parts are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The 515094 wheel bearing and hub assembly undergoes rigorous testing to ensure fitment and function. Moog typically offers a limited warranty on their parts; please refer to official Moog documentation for specific warranty details.
