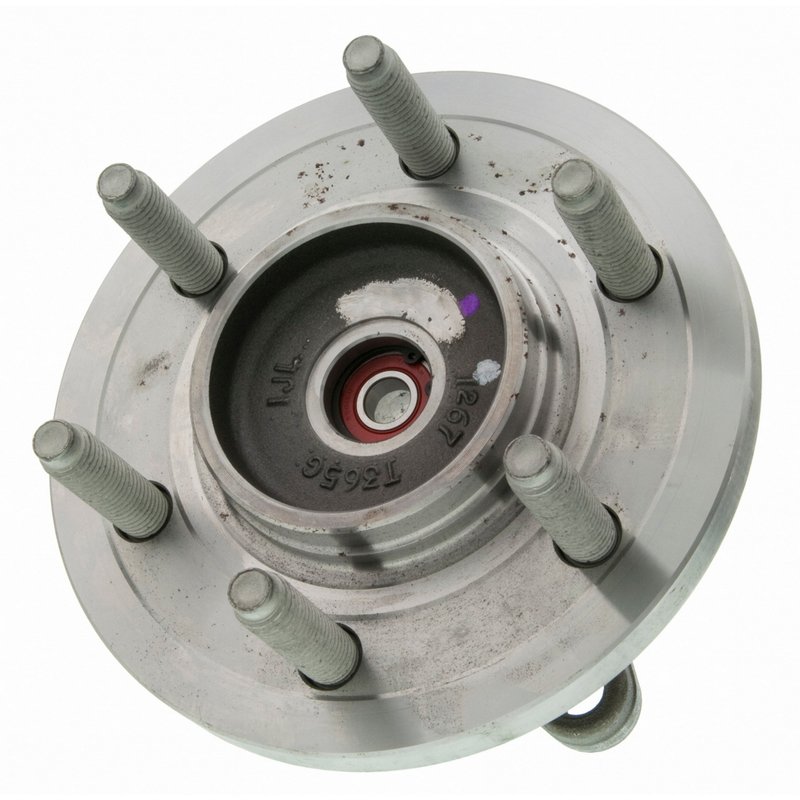

Moog 515095 Wheel Bearing and Hub Assembly - Front

Overview of Moog 515095 Wheel Bearing and Hub Assembly

The Moog 515095 wheel bearing and hub assembly is engineered for reliable performance in Ford Expedition and Lincoln Navigator vehicles. Designed to meet OEM specifications, this assembly ensures proper fit and function for your driveline and axle needs.

• Compatible with Ford Expedition and Lincoln Navigator models
• Includes anti-lock brake sensor for ABS functionality
• 45 spline quantity for secure axle engagement
• 6 wheel studs and 4 flange bolt holes for stable mounting
• Modified flange shape with 182.9 mm flange diameter
• Wheel pilot diameter of 86.8 mm and brake pilot diameter of 90 mm
• Hub pilot diameter of 99.3 mm and flange offset of 45.6 mm
• Bolt circle diameter of 135 mm (5.315 inches)

Technical Details and Specifications

The Moog 515095 wheel bearing and hub assembly features a 45 spline count, ensuring a precise fit with the axle shaft for Ford Expedition and Lincoln Navigator models. The assembly includes six wheel studs and four flange bolt holes, providing a secure and stable connection to the vehicle’s hub. The modified flange shape and 182.9 mm flange diameter are designed to accommodate specific brake and wheel configurations. The wheel pilot diameter measures 86.8 mm, while the brake pilot diameter is 90 mm, allowing for proper alignment of the brake components. Additionally, the hub pilot diameter of 99.3 mm and flange offset of 45.6 mm contribute to accurate positioning and load distribution. This assembly also includes an anti-lock brake sensor, which is essential for maintaining ABS functionality on compatible vehicles.

Applications and Problem Solving

• Replaces worn or damaged wheel bearing and hub assemblies on Ford Expedition and Lincoln Navigator
• Restores proper wheel alignment and reduces vibration
• Ensures ABS sensor functionality for safe braking performance
• Eliminates wheel noise caused by bearing wear
• Prevents premature tire wear due to hub misalignment

Installation Notes and Tips

When installing the Moog 515095 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify that the spline count matches the axle shaft to avoid fitment issues. Carefully align the flange bolt holes and wheel studs during installation to prevent damage. It is recommended to inspect the ABS sensor wiring and connectors for any signs of wear or damage before reassembly. Torque all fasteners to manufacturer specifications to maintain proper assembly integrity.

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The 515095 part number undergoes rigorous quality control testing to ensure proper fit and function. This product includes a limited warranty against defects in materials and workmanship, offering peace of mind for your vehicle maintenance needs.
