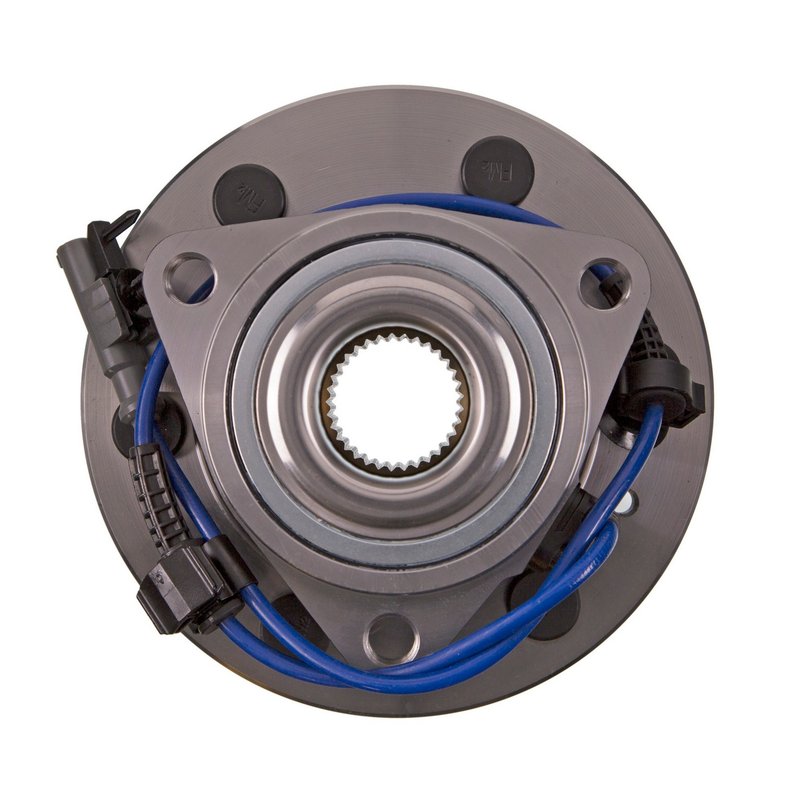

Moog 515096 Wheel Bearing and Hub Assembly - Front

Moog 515096 Wheel Bearing and Hub Assembly Overview

The Moog 515096 wheel bearing and hub assembly is engineered for reliable driveline performance on select GM trucks and SUVs. Designed to meet the specifications of Cadillac, Chevrolet, and GMC models, this assembly ensures proper fit and function for vehicles like the Escalade, Silverado 1500, and Yukon XL 1500.

• 33 spline quantity for secure axle engagement
• 6 wheel studs for stable wheel mounting
• Triangle flange shape with 3 bolt holes
• Includes anti-lock brake sensor for ABS compatibility
• Precise flange and pilot diameters for accurate fitment

Technical Specifications and Features

This wheel bearing and hub assembly features a 33 spline count, providing a robust connection to the axle shaft. The flange includes 3 bolt holes arranged in a triangle shape, with a bolt circle diameter of 139.7 mm (5.5 inches) and a flange offset of 1.976 inches. The assembly supports 6 wheel studs, ensuring secure wheel attachment. The wheel pilot diameter measures 77.7 mm, while both the brake pilot and hub pilot diameters are 3.087 inches, allowing for precise alignment with brake components and hub mounting surfaces. An integrated anti-lock brake sensor is included to maintain ABS functionality on compatible vehicles.

Compatible Vehicles and Applications

This Moog 515096 wheel bearing and hub assembly is compatible with a range of GM vehicles, including:

• Cadillac Escalade, Escalade ESV, Escalade EXT
• Chevrolet Avalanche, Silverado 1500, Suburban 1500, Tahoe
• GMC Sierra 1500, Yukon, Yukon XL 1500

It is designed to replace worn or damaged wheel bearing and hub assemblies on these models, restoring proper wheel rotation and vehicle stability.

Common Issues Addressed by This Assembly

• Eliminates wheel bearing noise and vibration
• Restores proper wheel alignment and rotation
• Resolves ABS sensor faults related to hub assembly
• Prevents premature tire wear caused by hub play
• Improves overall driveline safety and performance

Installation Notes and Tips

Installation of the Moog 515096 requires proper torque specifications for the flange bolts and wheel studs. Ensure the ABS sensor connector is securely attached to maintain anti-lock brake system functionality. It is recommended to inspect related components such as axle shafts and brake rotors during installation. Professional installation is advised to guarantee correct fitment and operation.

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards. The 515096 part number undergoes rigorous testing to ensure durability and performance under normal operating conditions. Moog typically offers a limited warranty covering defects in materials and workmanship, providing confidence in the product's reliability.
