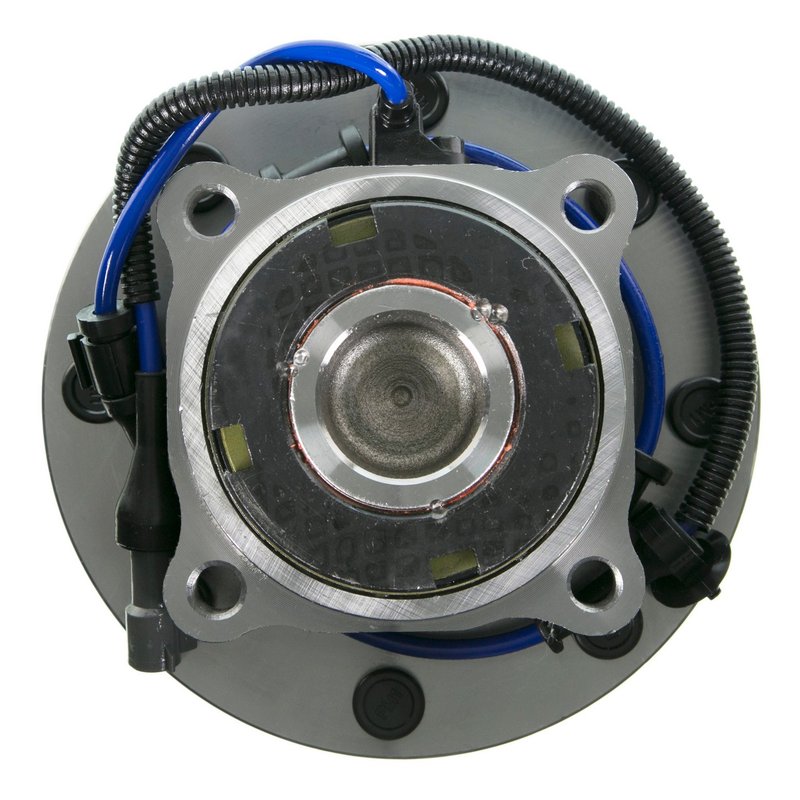

Moog 515100 Wheel Bearing and Hub Assembly - Front

Overview of Moog 515100 Wheel Bearing and Hub Assembly

The Moog 515100 wheel bearing and hub assembly is engineered for reliable performance on Ford F-250 Super Duty and F-350 Super Duty trucks. Designed to meet OEM specifications, this assembly includes an anti-lock brake sensor to maintain safety and functionality.

• Flange bolt hole quantity: 4 for secure mounting
• Wheel pilot diameter: 124.8 mm for precise wheel alignment
• Brake pilot diameter: 129.0 mm ensuring proper brake component fit
• Wheel stud quantity: 8 for enhanced wheel stability
• Hub pilot diameter: 114.0 mm for accurate hub positioning
• Modified flange shape with 55.1 mm flange offset
• Flange diameter: 203.0 mm and bolt circle diameter: 169.8 mm (6.685 inches)
• Includes anti-lock brake sensor for ABS compatibility

Technical Details and Specifications

The Moog 515100 hub assembly is designed with a modified flange shape and a flange offset of 55.1 mm, which ensures proper fitment and alignment on Ford Super Duty trucks. The assembly features eight wheel studs and four flange bolt holes, providing a robust connection to the vehicle’s driveline. The wheel pilot diameter of 124.8 mm and brake pilot diameter of 129.0 mm allow for precise mounting of wheels and brake components, reducing vibration and wear. The included anti-lock brake sensor integrates seamlessly with the vehicle’s ABS system, maintaining safety and control during braking.

Compatible Vehicles and Applications

• Compatible with Ford F-250 Super Duty models
• Compatible with Ford F-350 Super Duty models
• Designed for use in driveline and axle hub replacement
• Suitable for addressing wheel bearing noise and hub assembly wear
• Ideal for restoring proper wheel alignment and ABS sensor function

Installation Notes and Tips

When installing the Moog 515100 wheel bearing and hub assembly, ensure the flange bolt holes align correctly with the vehicle’s mounting points. Verify the wheel pilot and brake pilot diameters match the wheel and brake components to avoid fitment issues. The anti-lock brake sensor should be connected carefully to maintain ABS functionality. It is recommended to torque all bolts to manufacturer specifications and inspect the hub for any signs of damage or wear before installation.

Quality Assurance and Warranty

Moog manufactures the 515100 wheel bearing and hub assembly to meet strict quality standards, ensuring durability and reliable performance. This part is engineered to OEM specifications for Ford Super Duty trucks. While specific warranty details are not provided here, Moog typically offers coverage against defects in materials and workmanship. Consult the product documentation or Moog’s official resources for complete warranty information.
