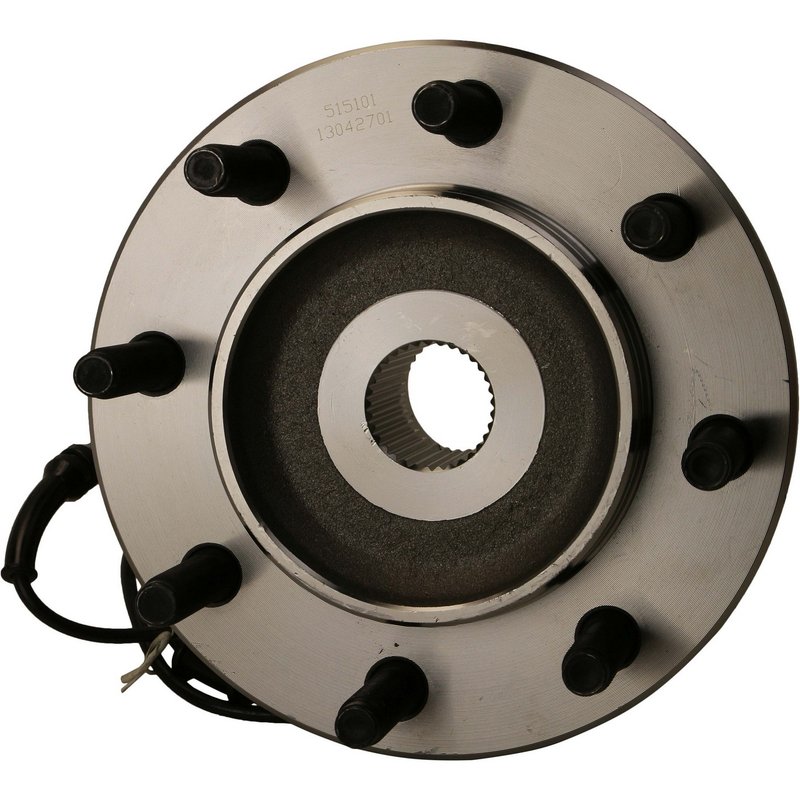

Moog 515101 Wheel Bearing and Hub Assembly - Front

Moog 515101 Wheel Bearing and Hub Assembly Overview

The Moog 515101 wheel bearing and hub assembly is engineered for reliable performance on Dodge Ram 1500, Ram 2500, and Ram 3500 models. Designed to meet OEM specifications, this assembly ensures proper fitment and durability for your vehicle's driveline system.

• 33 spline quantity for secure axle engagement
• Includes anti-lock brake sensor for ABS functionality
• 8 wheel studs and 4 flange bolt holes for stable wheel mounting
• Modified flange shape with a flange diameter of 205 mm
• Precise pilot diameters: wheel pilot 121 mm, brake pilot 122 mm, hub pilot 113.8 mm
• Flange offset of 54.9 mm and bolt circle diameter of 164.8 mm (6.487 inches)

Technical Details and Specifications

The Moog 515101 hub assembly features a 33-spline design that ensures a secure connection to the axle shaft, critical for maintaining driveline integrity. The assembly includes an anti-lock brake sensor, which integrates seamlessly with the vehicle's ABS system to provide accurate wheel speed data. With 8 wheel studs and 4 flange bolt holes, the hub assembly offers a robust mounting platform for the wheel, supporting safe and stable operation. The modified flange shape and precise flange diameter of 205 mm contribute to proper wheel alignment and load distribution. Additionally, the wheel pilot diameter of 121 mm, brake pilot diameter of 122 mm, and hub pilot diameter of 113.8 mm ensure exact fitment on compatible Dodge Ram models.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with the following Dodge models:

• Dodge Ram 1500
• Dodge Ram 2500
• Dodge Ram 3500

Use the Moog 515101 assembly to address issues related to wheel bearing wear, hub damage, or ABS sensor failure on these vehicles.

Common Issues Addressed by Moog 515101

• Eliminates wheel bearing noise and roughness
• Resolves wheel hub looseness or play
• Restores proper ABS sensor function
• Prevents uneven tire wear caused by hub misalignment
• Corrects vibration or wobble during driving

Installation Notes and Tips

Installation of the Moog 515101 wheel bearing and hub assembly requires proper torque specifications for the flange bolts and wheel studs to ensure safety and performance. It is recommended to inspect the axle shaft splines and clean the mounting surfaces before installation. The included ABS sensor should be connected carefully to avoid damage. Professional installation is advised to maintain vehicle safety and driveline integrity.

Quality Assurance and Warranty

Moog manufactures the 515101 wheel bearing and hub assembly to meet or exceed OEM standards, ensuring reliable performance and durability. This part includes an integrated ABS sensor and is backed by Moog's quality control processes. Warranty coverage details should be confirmed with the distributor or retailer at the time of purchase.
