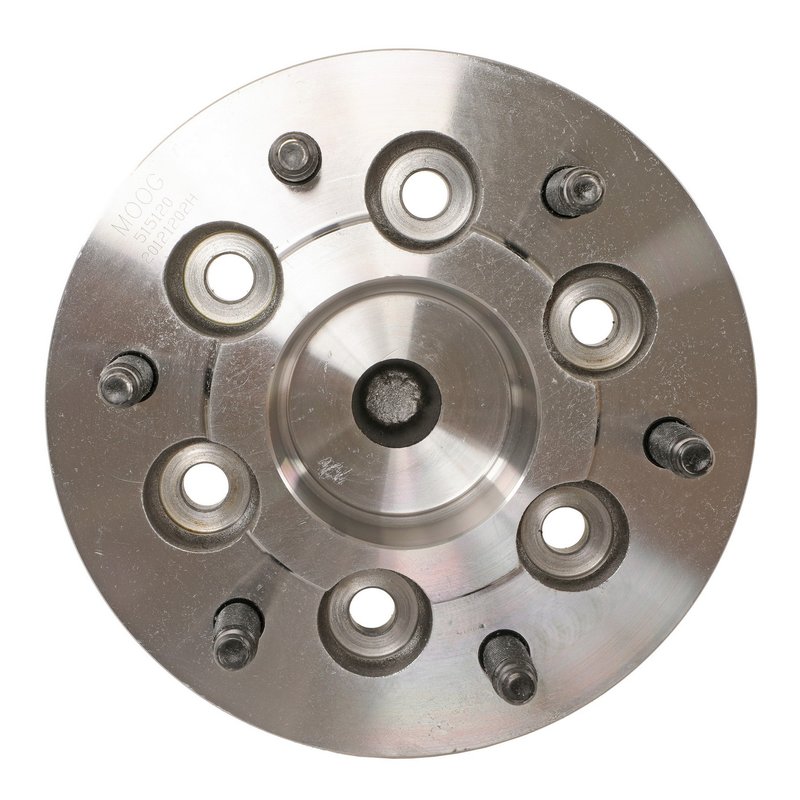

Moog 515120 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Colorado and Canyon

The MOOG 515120 is a front wheel bearing and hub assembly for 2009-2012 Chevrolet Colorado and 2009-2012 GMC Canyon models. Built with durable materials and tested for dependable operation, it is made for a straightforward replacement on the front axle.

Key Features

• Front wheel bearing and hub assembly for Chevrolet Colorado and GMC Canyon
• Includes an ABS sensor for vehicles equipped with anti-lock braking systems
• Modified flange shape with 4 flange bolt holes
• 6 wheel studs with a 139.900 mm bolt circle diameter
• Wheel pilot diameter: 99.500 mm
• Brake pilot diameter: 91.900 mm
• Hub pilot diameter: 85.000 mm
• Flange diameter: 184.000 mm with 67.100 mm flange offset

Detailed Description

MOOG part number 515120 is a front hub assembly engineered for 2009-2012 Chevrolet Colorado and 2009-2012 GMC Canyon applications. It is built around the hub, bearing, and flange dimensions needed for proper wheel mounting and brake alignment, while the integrated ABS sensor supports vehicles that rely on wheel speed input for braking system operation. This makes the MOOG 515120 a direct-fit service part for front-end bearing and hub replacement on Colorado and Canyon trucks.

This part cross-references Timken HA590300 and SKF BR930571K for the same application.

What It Helps Fix

• Wheel bearing noise from the front hub area
• Excessive front wheel play or looseness
• ABS warning light concerns related to hub sensor failure
• Uneven wheel mounting caused by worn hub components
• Front-end vibration traced to hub or bearing wear

Installation Notes and Tips

Verify front axle fitment by year, make, and model before installation. Confirm the bolt circle diameter, pilot diameters, and flange dimensions match the original hub assembly on the vehicle. Because this assembly includes an ABS sensor, inspect the connector and wiring path during replacement and clear any stored ABS codes after installation if required.

Quality Assurance

MOOG hub assemblies are built with tested materials and are backed by the brand’s focus on reliable fit and consistent performance. The design emphasizes easier installation and dependable service on 2009-2012 Chevrolet Colorado and GMC Canyon front applications.
