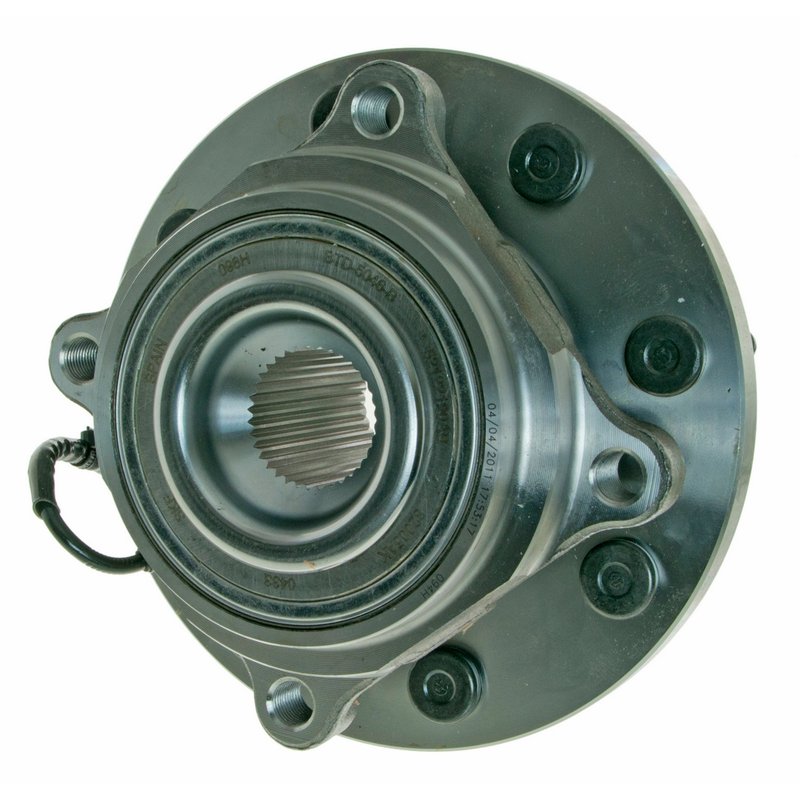

Moog 515122 Wheel Bearing and Hub Assembly - Front
| Brand | Moog 515122 |
|---|---|
| Position | Front |
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter | 165.100 |
| Brake Pilot Diameter | 122.900 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 205.000 |
| Flange Offset | 56.300 |
| Hub Pilot Diameter | 140.000 |
| Spline Quantity | 35 |
| Wheel Pilot Diameter | 121.000 |
| Wheel Stud Quantity | 8 |
| Fits | Ram and Dodge · 6 vehicles |
Wheel bearing and hub assembly. Reliable replacement for smooth hub performance.
Fast installation. Problem-solving design helps make the job hassle-free.
Rigorous testing. Built with superior materials for dependable performance.
Cross-references SKF BR930546, Timken HA590346 and 52122186AB for the same application. See all 4.
Front Wheel Bearing Hub Assembly for Ram 2500/3500
MOOG 515122 is a front wheel bearing and hub assembly for select 2009-2011 Dodge Ram 2500 and Ram 3500 trucks. It combines the hub, bearing, and ABS sensor integration needed for a direct front-end service replacement on heavy-duty Ram applications.
Key Features
- Front wheel bearing and hub assembly for 2009-2011 Dodge Ram 2500 and 2011 Ram 3500
- Includes ABS sensor integration for vehicles equipped with anti-lock braking systems
- 35-spline hub design
- 8 wheel studs with 165.100 mm bolt circle diameter
- 4 flange bolt holes for mounting
- Wheel pilot diameter: 121.000 mm
- Brake pilot diameter: 122.900 mm
- Hub pilot diameter: 140.000 mm
- Flange diameter: 205.000 mm
- Flange offset: 56.300 mm
Detailed Description
MOOG 515122 is built for front axle service on Ram heavy-duty trucks, including 2009-2010 Dodge Ram 2500 front, 2009-2010 Dodge Ram 3500 front, 2011 Ram 2500 front, and 2011 Ram 3500 front. MOOG uses tested materials and application-focused engineering to support dependable hub performance and straightforward replacement on the front suspension and driveline interface. This part cross-references SKF BR930546 and Timken HA590346 for the same application.
What It Helps Fix
- Front wheel bearing noise or rough rotation
- ABS warning light concerns related to the hub sensor circuit
- Wheel end looseness or play at the front hub
- Vibration or instability caused by worn hub components
- Service issues on Ram 2500 and Ram 3500 front wheel ends
Installation Notes and Tips
Verify spline count, bolt circle diameter, flange offset, and pilot diameters before installation. Confirm the vehicle is a front-position application and match the ABS sensor configuration to the original part. For best results, inspect the mating surfaces, axle interface, and related fasteners during service on Dodge Ram 2500, Ram 3500, and Ram 2500 front hub replacement jobs.
Quality Assurance
MOOG hub assemblies are backed by material selection and testing practices aimed at consistent fit and performance. Part number 515122 is engineered as a direct replacement for the listed Ram front hub applications and is supported by MOOG problem-solving design features for efficient installation.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Ram | 2500 | 4WD | Front | — |
| 2011 | Ram | 3500 | 4WD | Front | — |
| 2010 | Dodge | Ram 2500 | 4WD | Front | — |
| 2010 | Dodge | Ram 3500 | 4WD | Front | — |
| 2009 | Dodge | Ram 2500 | 4WD | Front | — |
| 2009 | Dodge | Ram 3500 | 4WD | Front | — |
