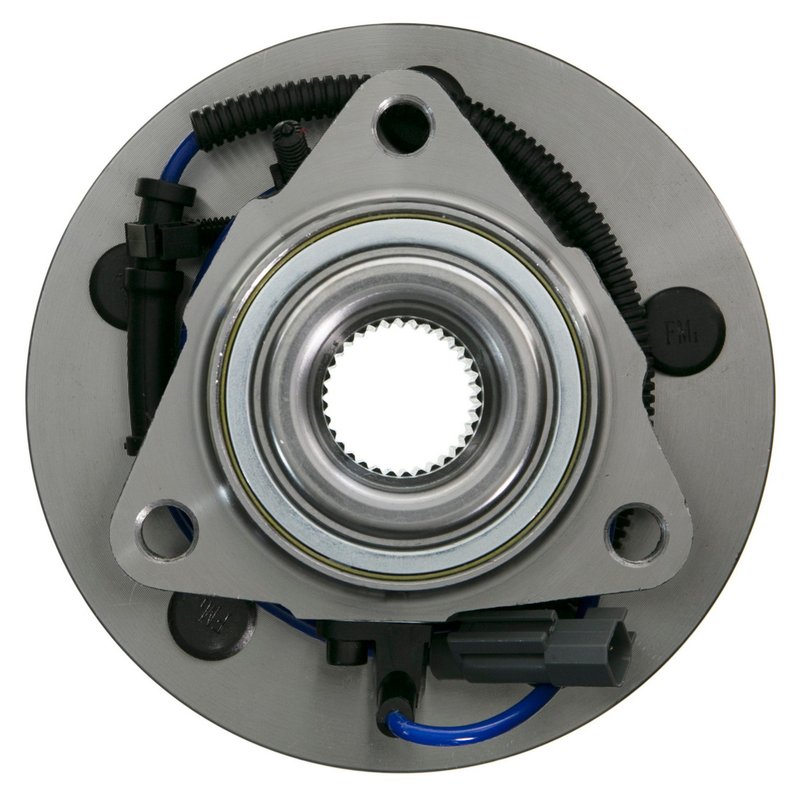

Moog 515126 Wheel Bearing and Hub Assembly - Front
| Brand | Moog 515126 |
|---|---|
| Position | Front |
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter | 5.500 |
| Bolt Circle Diameter | 183.000 |
| Brake Pilot Diameter | 78.400 |
| Flange Bolt Hole Quantity | 3 |
| Flange Diameter | 183.000 |
| Flange Offset | 49.800 |
| Flange Shape | TRIANGLE |
| Hub Pilot Diameter | 90.000 |
| Spline Quantity | 33 |
| Wheel Pilot Diameter | 77.700 |
| Wheel Stud Quantity | 5 |
| Fits | Ram and Dodge · 3 vehicles |
Fast, hassle-free installation. MOOG problem-solving innovations simplify the job.
Superior materials. Built with rigorous testing for reliable performance.
Wheel bearing and hub assembly. A complete hub assembly for driveline and axle service.
Cross-references Mopar 68024245AA, SKF BR930808 and Timken HA590354 for the same application. See all 6.
Front Wheel Bearing and Hub Assembly for Ram 1500
MOOG 515126 is a front wheel bearing and hub assembly built for 2009-2011 Ram 1500 5-stud applications. It combines OE-style fitment details with a hub design that supports reliable wheel mounting, ABS sensor integration, and straightforward service work.
Key Features
- Front wheel bearing and hub assembly for Ram 1500 applications
- Fits 2011 Ram 1500, front, 5 stud wheel
- Fits 2010 Dodge Ram 1500, front, 5 stud wheel
- Fits 2009 Dodge Ram 1500, front, 5 stud wheel; from 12/08/2008
- Anti-lock brake sensor included for direct sensor-equipped service
- 33-spline hub design with 5 wheel studs
- Triangle flange shape with 3 flange bolt holes
- Hub pilot diameter: 90.000 mm
- Wheel pilot diameter: 77.700 mm
- Brake pilot diameter: 78.400 mm
- Flange diameter and bolt circle diameter: 183.000 mm
- Flange offset: 49.800 mm
Detailed Description
MOOG 515126 is engineered as a front hub assembly for Ram 1500 trucks that use a 5-stud wheel pattern. Built with superior materials and tested for dependable performance, this wheel bearing and hub assembly is made to support consistent wheel mounting and accurate ABS sensor operation. The OE-style dimensions, including the 90.000 mm hub pilot diameter and 183.000 mm flange diameter, help match the original front-end service requirements on the listed Dodge Ram 1500 and Ram 1500 applications. This part cross-references Mopar 68024245AA for the same application.
Common Problems This Part Can Address
- Front wheel bearing noise or rough rotation
- ABS warning light concerns related to a failed hub sensor assembly
- Wheel looseness or play at the front hub
- Vibration or uneven wheel support at the front axle
- Service issues caused by worn hub mounting surfaces
Installation Notes and Tips
Verify the vehicle’s front hub configuration, 5-stud wheel setup, and build date before ordering. Confirm the spline count, flange bolt pattern, and pilot diameters against the original part to ensure proper alignment on 2009-2011 Ram 1500 front applications. Clean the mounting surface thoroughly and inspect related brake and suspension components during replacement.
Quality Assurance
MOOG hub assemblies are backed by tested materials and application-focused engineering to support dependable service on Ram 1500 front-end repairs. The included ABS sensor and OE-matched dimensions help streamline installation and restore proper hub function.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Ram | 1500 | Front | 5 Stud Wheel |
| 2010 | Dodge | Ram 1500 | Front | 5 Stud Wheel |
| 2009 | Dodge | Ram 1500 | Front | 5 Stud Wheel; From 12/08/2008 |
