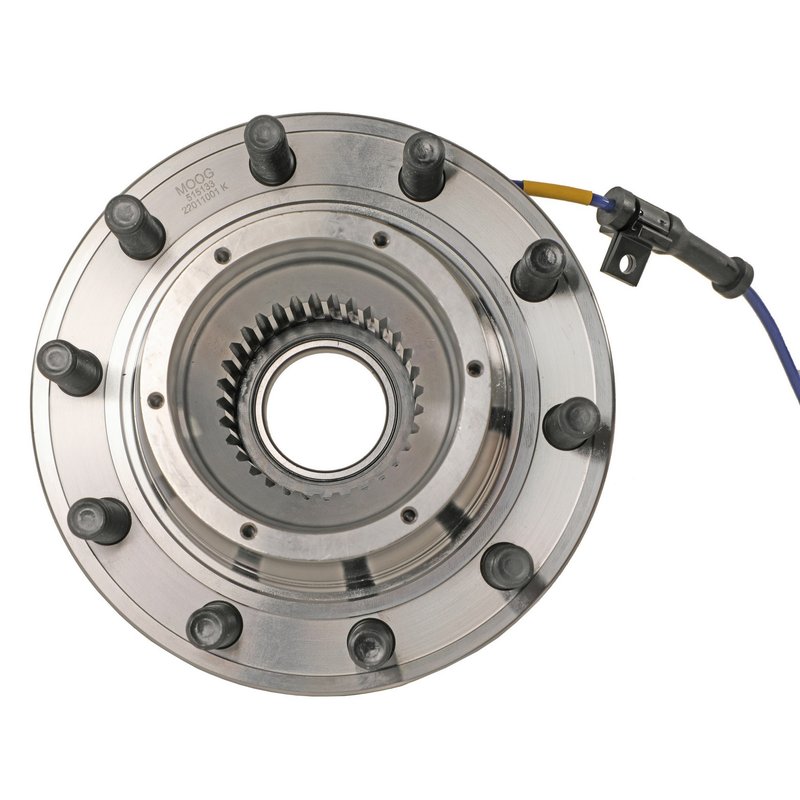

Moog 515133 Wheel Bearing and Hub Assembly - Front

MOOG 515133 Wheel Bearing Hub Assembly

MOOG 515133 is a wheel bearing and hub assembly built for driveline and axle service where precise fit and dependable wheel support matter. It combines a 32-spline hub design with an integrated ABS sensor to support stable braking and wheel-speed signal performance.

Compatible with Ford Super Duty applications, this hub assembly is built around the key dimensions needed for accurate installation and proper wheel mounting. The MOOG 515133 is a practical choice for technicians and owners looking for a direct replacement hub assembly with OE-style geometry.

Key Features

• Wheel bearing and hub assembly for driveline and axle service
• 32 spline quantity for the hub interface
• Integrated anti-lock brake sensor included
• 10 wheel studs and 4 flange bolt holes
• Flange diameter: 203.000 mm
• Bolt circle diameter: 170.000 mm
• Wheel pilot diameter: 124.900 mm
• Brake pilot diameter: 129.100 mm
• Hub pilot diameter: 139.900 mm
• Flange offset: 45.600 mm

Product Details

MOOG hub assemblies are built with materials selected for durability and tested for consistent performance. The 515133 uses problem-solving design details to support faster, cleaner installation while maintaining the dimensional accuracy needed for proper wheel and brake alignment. If you are searching for a Ford Super Duty wheel bearing hub assembly, a front or rear hub replacement, or a hub assembly with ABS sensor included, this part number is a strong match for that type of repair.

This part cross-references SKF (e.g., BR930767, BR930803) for the same application.

Common Repair Symptoms

• Wheel bearing noise or growling from the hub area
• ABS warning light caused by a failing wheel speed sensor circuit
• Wheel looseness or play at the hub
• Uneven braking feel related to hub or bearing wear
• Vibration or rough rotation at the wheel end

Installation Notes

Verify spline count, bolt circle diameter, flange offset, and pilot diameters before installation. Confirm the ABS sensor connection and mounting points match the vehicle’s original setup. Clean the mounting surface, inspect the axle and knuckle interface, and torque fasteners to the vehicle manufacturer’s specifications.

For Ford Super Duty hub replacement work, compare the original hub assembly to MOOG 515133 before final assembly. The part number 515133 is also commonly searched as a replacement wheel bearing and hub assembly for Ford truck driveline service.

Quality Assurance

MOOG backs this hub assembly with superior materials and rigorous testing to support reliable service life and consistent fit. The brand’s engineering focus is on reducing installation issues and delivering a replacement part that meets the demands of axle and hub repair.
