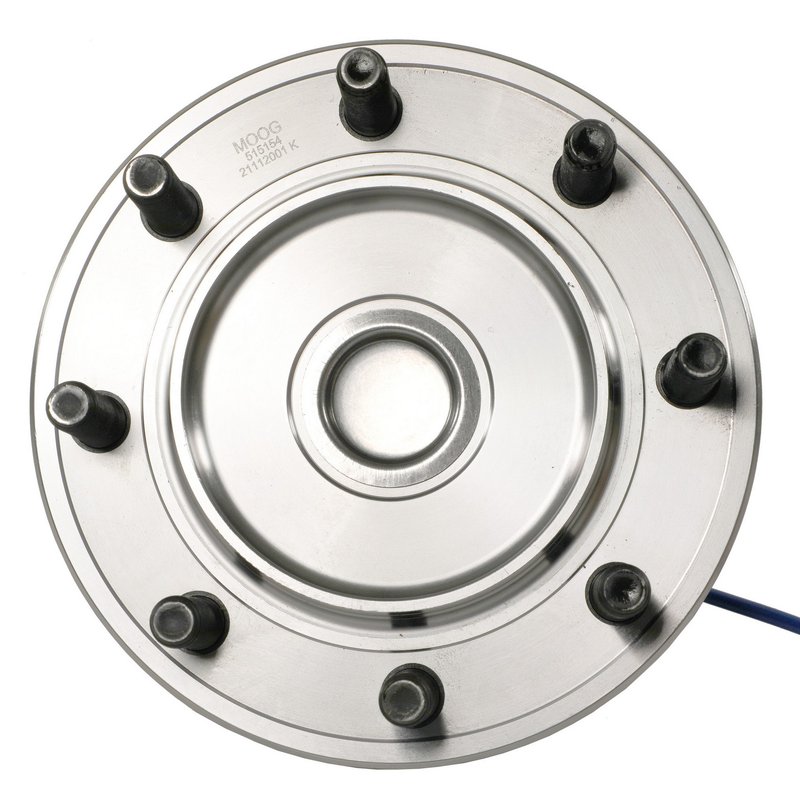

Moog 515154 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Ram 2500/3500

Moog 515154 is a front wheel bearing and hub assembly built for 2012-2013 Ram 2500 and 2012 Ram 3500 applications. It combines the hub, bearing, and ABS sensor interface in one service part for direct replacement on the front axle.

Key Features

• Front wheel bearing and hub assembly for Ram 2500 and Ram 3500
• Anti-lock brake sensor included
• 4 flange bolt holes for mounting
• 8 wheel studs
• Flange diameter: 205.000 mm
• Bolt circle diameter: 165.100 mm
• Wheel pilot diameter: 121.000 mm
• Brake pilot diameter: 123.000 mm
• Hub pilot diameter: 199.900 mm
• Flange offset: 56.300 mm

Detailed Description

Moog 515154 is a direct-fit front hub assembly engineered for heavy-duty Ram truck service. It is listed for 2012-2013 Ram 2500 front and 2012 Ram 3500 front, making it a focused replacement for front-end wheel bearing wear and hub-related drivability concerns. MOOG is known for ongoing design updates that improve service life and make replacement easier, and this part reflects that approach with a service-ready hub design and integrated ABS sensor provision.

This part cross-references SKF BR930552 and Timken HA590466 for the same application. Search terms such as front wheel bearing hub assembly for 2012-2013 Ram 2500, 2012 Ram 3500 front hub replacement, and Moog 515154 front wheel hub assembly can help identify the correct part quickly.

What It Is Used For

• Replacing a worn or noisy front wheel bearing hub assembly
• Restoring proper wheel support at the front axle
• Addressing ABS warning light concerns tied to the hub sensor interface
• Correcting hub play, rough rotation, or front-end vibration caused by bearing wear
• Servicing a damaged or corroded front hub on Ram heavy-duty trucks

Installation Notes and Tips

Verify front-axle fitment by year, model, and position before installation. Confirm the bolt circle diameter, flange bolt hole quantity, wheel stud quantity, and pilot diameters against the original hub assembly. Inspect the mating surfaces, axle components, and ABS wiring during replacement, and torque fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

Moog develops chassis and driveline replacement parts with design refinements aimed at extending service life and simplifying installation and replacement. Part number 515154 is built as a direct replacement hub assembly for the listed Ram applications.
