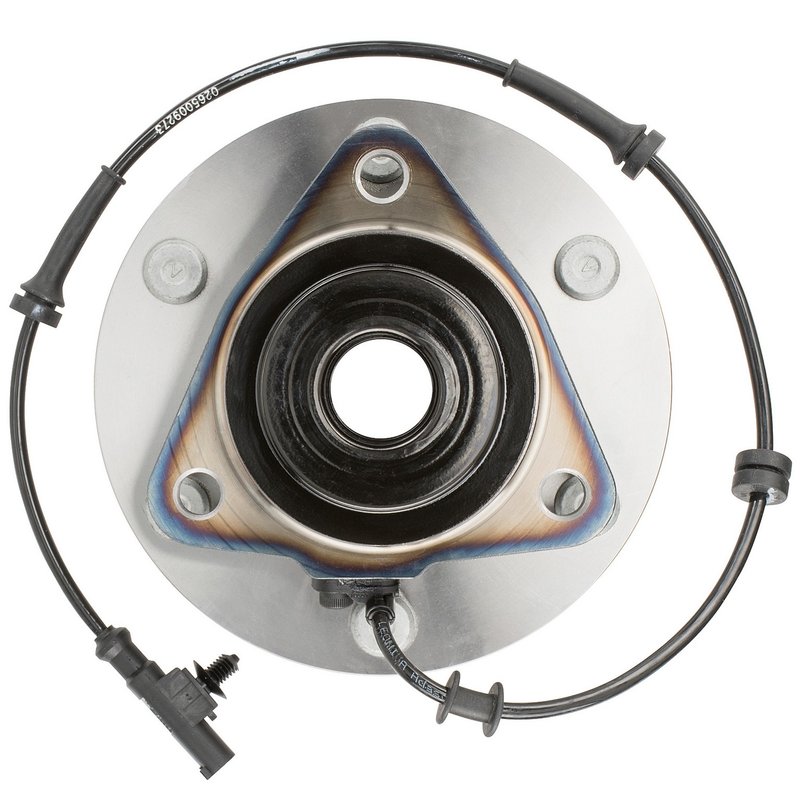

Moog 515156 Wheel Bearing and Hub Assembly - Front

Moog 515156 Wheel Bearing and Hub Assembly Overview

The Moog 515156 wheel bearing and hub assembly is engineered for Nissan Armada and TITAN models, providing reliable driveline performance. Designed to meet OEM specifications, this assembly integrates essential features for proper fitment and function.

• Compatible with Nissan Armada and Nissan TITAN vehicles
• Includes anti-lock brake sensor for ABS functionality
• 29 spline quantity for secure axle engagement
• 6 wheel studs and 3 flange bolt holes for stable wheel mounting
• Precise pilot diameters: 77.6 mm wheel pilot, 90 mm brake pilot, 88.9 mm hub pilot
• Flange diameter of 171 mm with 45.2 mm flange offset
• Bolt circle diameter of 139.7 mm for accurate wheel alignment

Technical Details and Specifications

This Moog wheel bearing and hub assembly (part number 515156) is designed to fit Nissan Armada and TITAN models, ensuring compatibility with the vehicle’s driveline system. The assembly features a 29-spline axle interface, which provides a secure connection to the axle shaft. It includes six wheel studs and three flange bolt holes, supporting proper wheel attachment and stability. The wheel pilot diameter measures 77.6 mm, while the brake pilot diameter is 90 mm, both critical for correct rotor and wheel positioning. The hub pilot diameter is 88.9 mm, ensuring precise hub centering. Additionally, the flange diameter is 171 mm with a flange offset of 45.2 mm, and the bolt circle diameter is 139.7 mm, all contributing to accurate fitment and alignment. The assembly also includes an anti-lock brake sensor, maintaining ABS system functionality.

Common Applications and Problem Resolution

• Replaces worn or damaged wheel bearing and hub assemblies on Nissan Armada and TITAN
• Addresses wheel vibration or noise caused by bearing wear
• Restores proper ABS sensor operation with included anti-lock brake sensor
• Fixes wheel hub looseness or play affecting vehicle handling
• Corrects uneven tire wear related to hub misalignment

Installation Notes and Tips

When installing the Moog 515156 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify the spline count and pilot diameters match the original equipment. Use proper torque specifications for the six wheel studs and three flange bolts to avoid premature wear or failure. Confirm the anti-lock brake sensor is connected correctly to maintain ABS functionality. It is recommended to inspect related components such as axle shafts and brake rotors during installation.

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards, ensuring durability and performance. The 515156 part number undergoes rigorous testing for fit, form, and function. This product includes a limited warranty covering defects in materials and workmanship, providing confidence in its reliability for Nissan Armada and TITAN applications.
