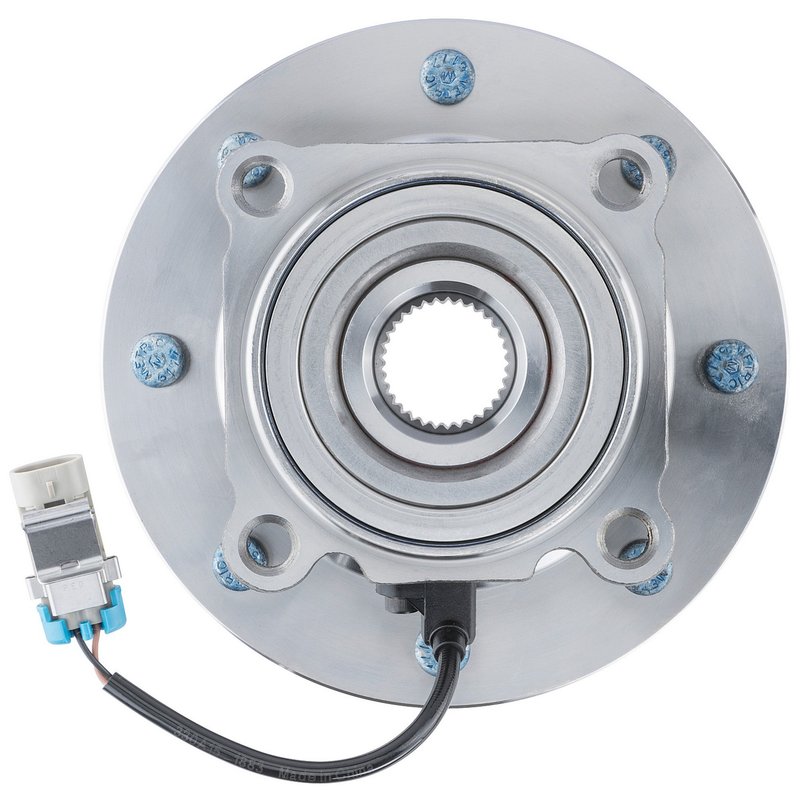

Moog 515163 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub for Cadillac DTS

Restore front-end wheel support and ABS signal performance with the MOOG 515163 wheel bearing and hub assembly. This front hub assembly is built for 2006-2011 Cadillac DTS models with heavy duty brakes and includes the ABS sensor for a direct replacement on the front axle.

Key Features

• Fits 2006-2011 Cadillac DTS, front, with heavy duty brakes
• Wheel bearing and hub assembly with 33 splines
• ABS sensor included for front wheel speed signal service
• 8 wheel studs, 4 flange bolt holes, and 140.000 bolt circle diameter
• Hub pilot diameter: 105.800; wheel pilot diameter: 116.600; brake pilot diameter: 117.800
• Flange diameter: 199.300; flange offset: 69.000
• MOOG part number 515163

Detailed Description

The MOOG 515163 is a front wheel bearing and hub assembly engineered for the Cadillac DTS platform with heavy duty brakes. It is built around the hub, bearing, and ABS sensor interface needed to support wheel rotation and wheel speed monitoring at the front of the vehicle. MOOG is known for ongoing design updates that improve service life and make replacement easier, which is especially useful when servicing driveline and axle components on a Cadillac DTS.

This part cross-references Monroe Shocks & Struts (e.g., 25678854) for the same application. If you are searching for a front wheel bearing hub assembly for a 2006-2011 Cadillac DTS, front, with heavy duty brakes, MOOG 515163 is the direct fitment to verify against your vehicle build.

Common Problems This Part Can Address

• Front wheel bearing noise or rough rotation
• ABS warning light caused by a failed wheel speed sensor circuit
• Wheel looseness or play at the hub
• Uneven front-end feel related to hub wear
• Service issues on a Cadillac DTS front hub with heavy duty brakes

Installation Notes and Tips

Confirm the vehicle is a 2006-2011 Cadillac DTS with heavy duty brakes before ordering. Verify spline count, bolt circle diameter, flange dimensions, and sensor connection against the original part to ensure proper front axle fitment. Clean the mounting surface thoroughly and inspect the knuckle, axle interface, and brake components during replacement.

Quality Assurance

MOOG positions this hub assembly as part of its chassis-focused problem-solving line, with design improvements aimed at extending service life and simplifying installation and replacement. The included ABS sensor supports proper front wheel speed signal service on the specified Cadillac DTS applications.
