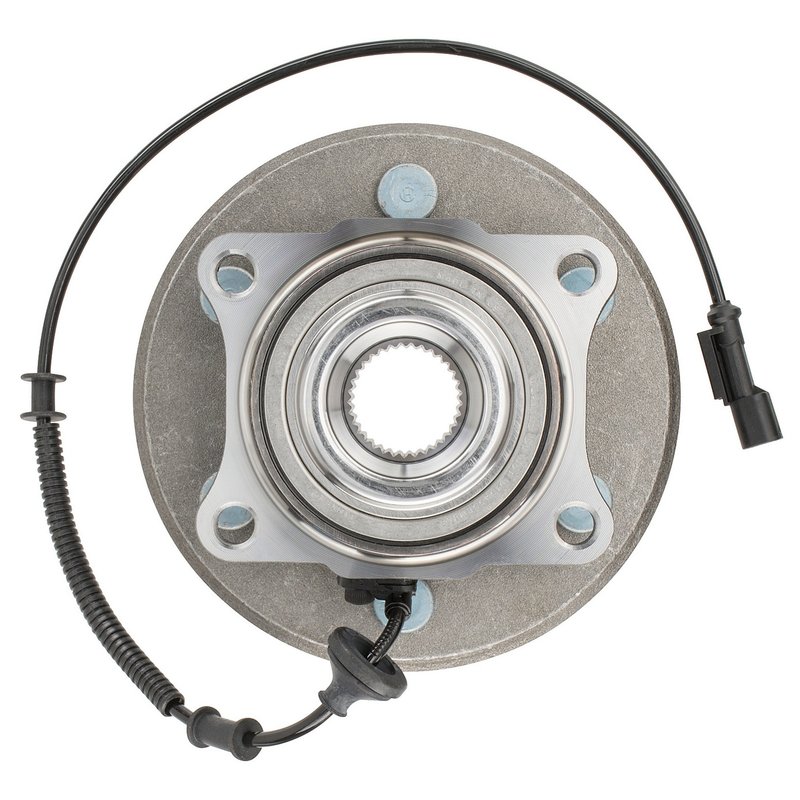

Moog 541015 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Expedition and Navigator

Restore rear wheel support and ABS signal performance with this MOOG wheel bearing and hub assembly, part number 541015. It is built for rear applications on the 2015-2017 Ford Expedition and 2015-2017 Lincoln Navigator, with OE-style dimensions for a direct replacement fit.

MOOG 541015 is engineered with design updates that help extend service life and make replacement easier. For rear Ford Expedition and Lincoln Navigator service, this hub assembly combines the bearing, hub, and ABS sensor in one service part for a clean repair path.

Key Features

• Rear wheel bearing and hub assembly for 2015-2017 Ford Expedition and 2015-2017 Lincoln Navigator
• Integrated anti-lock brake sensor included
• 33-spline hub design
• 6 wheel studs with 4 flange bolt holes
• Wheel pilot diameter: 86.800 mm
• Brake pilot diameter: 90.000 mm
• Hub pilot diameter: 99.300 mm
• Bolt circle diameter: 135.100 mm
• Flange diameter: 183.100 mm
• Flange offset: 55.500 mm

Detailed Description

MOOG 541015 is a rear wheel bearing and hub assembly made for the 2015-2017 Ford Expedition and 2015-2017 Lincoln Navigator. It is a direct-fit driveline and axle service part that supports wheel mounting, bearing operation, and ABS sensor function in one assembly. The OE reference for this application is FL1Z1109A, and this part cross-references that OE number for the same application.

With 33 splines, 6 wheel studs, and an included ABS sensor, this hub assembly is built around the dimensions needed for rear service on these full-size SUVs. If you are searching for a rear wheel hub assembly for 2015-2017 Ford Expedition or a rear hub assembly for 2015-2017 Lincoln Navigator, MOOG 541015 is the cataloged replacement.

What It Helps Fix

• Wheel bearing noise from the rear hub area
• ABS warning light concerns related to the rear wheel speed signal
• Wheel looseness or play at the hub
• Uneven wheel mounting caused by hub wear
• Rear-end vibration traced to hub or bearing wear

Installation Notes and Tips

Verify rear fitment by year, make, and model before installation. Confirm spline count, bolt circle diameter, and pilot dimensions against the original part to ensure proper alignment. Because the ABS sensor is included, inspect the connector and wiring path during replacement and clear any stored fault codes after installation if required by the vehicle repair procedure.

Quality Assurance

MOOG is known for ongoing design improvements that focus on longer service life and easier replacement. Part number 541015 follows that approach for rear hub service on the Ford Expedition and Lincoln Navigator platform.
