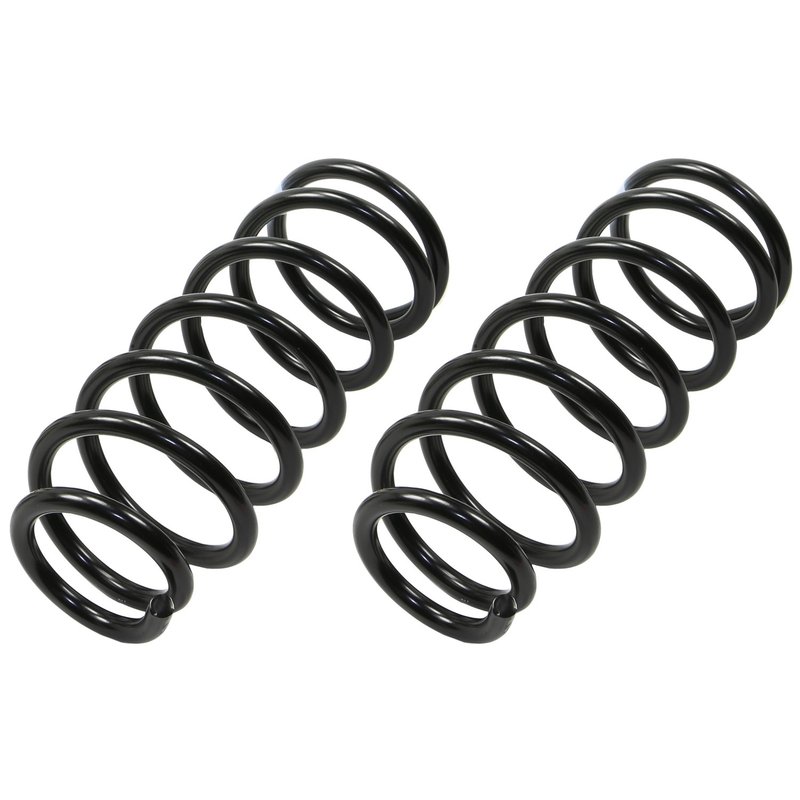

Moog 81680 Coil Spring Set - Rear

Moog 81680 Rear Coil Spring Set for Civic

The Moog 81680 coil spring set is a rear suspension replacement for select 2006-2011 Honda Civic models. Built around measured spring dimensions and OE-style fitment, it supports consistent rear ride height and suspension response for the Civic platform.

Key Features

• Rear coil spring set for 2006-2011 Honda Civic applications
• Wire diameter: 0.484 in. / 12.3 mm
• Rear spring relaxed length: 12.375 in. / 314.3 mm
• Rear spring compressed length: 8.500 in. / 215.9 mm
• Moog 81680 is engineered with design updates that help extend service life and simplify replacement
• Cross-reference part number: Monroe Shocks & Struts 172286

Detailed Description

Moog 81680 is a rear coil spring set for the Honda Civic, covering 2006-2011 rear applications. The spring dimensions are specified for accurate suspension service, including a 0.484-inch wire diameter and rear free length of 12.375 inches, with a compressed length of 8.500 inches. For drivers searching for a rear coil spring set for 2006-2011 Honda Civic, Moog 81680 provides a direct replacement option built for the rear suspension position.

MOOG is known for ongoing chassis design improvements that focus on longer service life and easier installation and replacement. This part cross-references Monroe Shocks & Struts 172286 for the same application.

What It Helps Address

• Rear sagging or reduced ride height
• Uneven rear suspension stance
• Loss of spring support from age or fatigue
• Rear-end bottoming over bumps or load changes
• Restoration of factory-style rear suspension geometry

Installation Notes and Tips

Fits 2006-2011 Honda Civic, rear. Verify the rear suspension configuration before installation and compare the removed spring to the listed dimensions for confirmation. Because coil spring service involves stored energy, use proper spring compression tools and follow factory service procedures during removal and installation.

Quality Assurance

Moog manufactures chassis components with design enhancements aimed at extending product life and simplifying replacement. The 81680 rear coil spring set is built to meet the needs of routine suspension repair on the Honda Civic platform.
