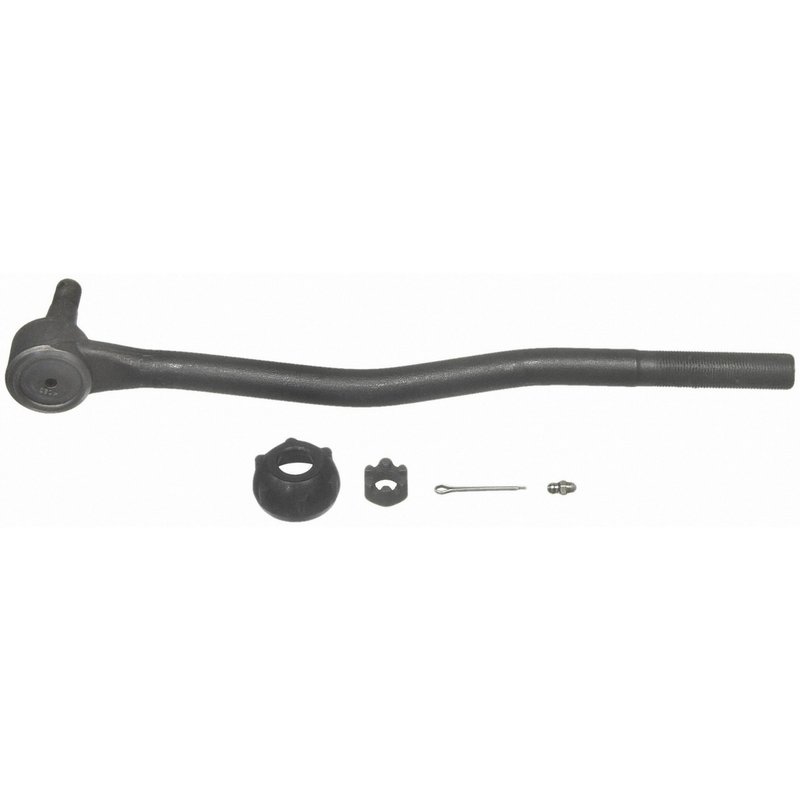

Moog DS1177 Steering Tie Rod End - Left Inner

Overview of Moog DS1177 Steering Tie Rod End

The Moog DS1177 steering tie rod end is engineered for precise steering control and durability. Designed specifically for select Ford and Mazda models, this component ensures reliable performance in your vehicle's steering system.

• Compatible with Ford B2300, B3000, B4000, Bronco II, Explorer, Ranger, and Mazda Navajo
• End 1 thread diameter: 20.0 mm with a 1.5 pitch and clockwise thread direction
• End 2 features a male gender stud
• Length from stud center to end measures 14.840 inches
• Part number DS1177 for accurate identification and fitment

Technical Specifications and Features

The Moog DS1177 tie rod end is designed with a 20.0 mm thread diameter on End 1, featuring a 1.5 thread pitch and clockwise thread direction. The male stud on End 2 provides a secure connection within the steering linkage. Measuring 14.840 inches from stud center to end, this tie rod end matches the OEM specifications for the listed Ford and Mazda models, ensuring proper fit and function.

Compatible Vehicles and Applications

This steering tie rod end is compatible with a range of Ford and Mazda vehicles, including the Ford B2300, B3000, B4000, Bronco II, Explorer, and Ranger, as well as the Mazda Navajo. It is designed to replace worn or damaged tie rod ends in these models, restoring steering precision and vehicle safety.

Common Issues Addressed by Moog DS1177

• Steering play or looseness causing imprecise handling
• Uneven tire wear due to misaligned steering components
• Clunking or knocking noises from the front suspension
• Difficulty maintaining vehicle alignment
• Vibration or shaking in the steering wheel during driving

Installation Notes and Tips

When installing the Moog DS1177 tie rod end, ensure the thread pitch and direction match the vehicle’s specifications. Use proper torque settings to avoid over-tightening or damaging the threads. It is recommended to perform a wheel alignment after installation to maintain optimal steering performance and tire wear.

Quality Assurance and Warranty

Moog parts are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The DS1177 steering tie rod end undergoes rigorous testing to ensure fit and function. Please refer to Moog’s warranty policy for specific coverage details.
