Moog DS1309 Steering Tie Rod End - Right Outer
OE Quality 60-Day Returns
Moog

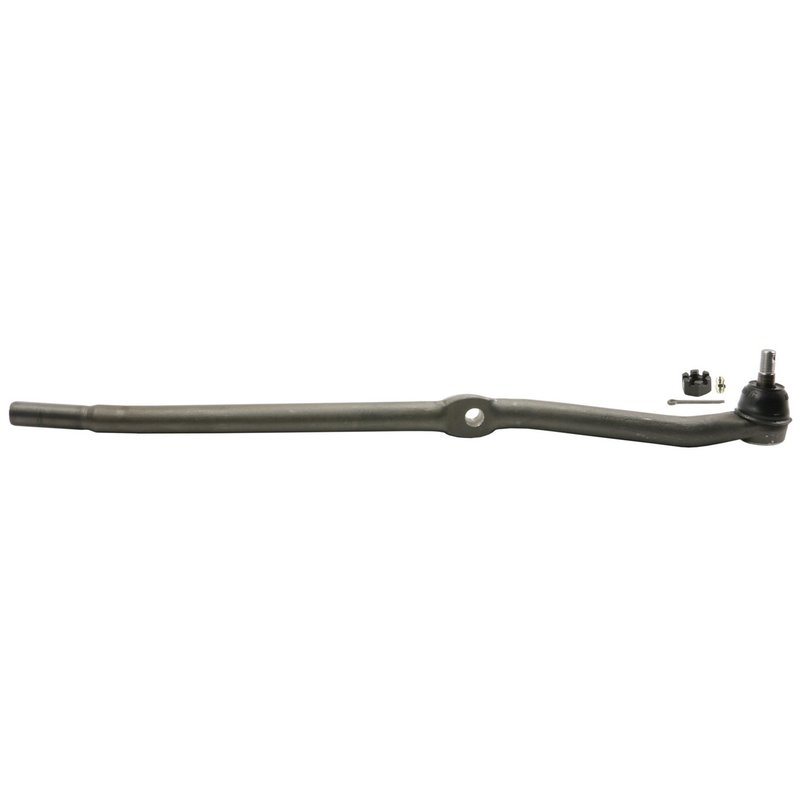

Moog DS1309 Steering Tie Rod End - Right Outer

Brand Moog DS1309
Position Right Outer
End 2 Gender Male
End 1 Thread Direction Counterclockwise
Length Stud Center to End 28.860
End 1 Threads Per Inch 18
End 1 Thread Diameter 1.000
Fits Dodge · 16 vehicles

Cross-references Mevotech Supreme MDS1309, MOOG Chassis Products DS1309 and 12-87005 for the same application. See all 18.

$111.03Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $111.03
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

Steering Tie Rod End Overview

MOOG DS1309 is an outer steering tie rod end for select Dodge Ram trucks with right outer fitment. It is built for direct steering linkage service and uses MOOG problem-solving design features to support easier installation and dependable steering response.

Key Features

  • Outer tie rod end for steering linkage repair
  • Male end with 1.000-inch thread diameter and 18 threads per inch
  • Counterclockwise thread direction on one end
  • Stud center-to-end length measures 28.860
  • Engineered with materials and testing standards focused on consistent performance

Fitment Details

  • Fits 1994-1997 Dodge Ram 1500, right outer, with Dana 44 axle; 28.53 in. length; includes powdered-metal Gusher bearing to allow grease to penetrate bearing surfaces.
  • Fits 1994-1997 Dodge Ram 2500, right outer, with Dana 44 or 60 axle; 28.53 in. length; includes powdered-metal Gusher bearing to allow grease to penetrate bearing surfaces.
  • Fits 1994-1997 Dodge Ram 3500, right outer, with solid front axle; 28.53 in. length; includes powdered-metal Gusher bearing to allow grease to penetrate bearing surfaces.
  • Fits 1994-1997 Dodge Ram 3500, right outer, with Dana 60 axle; 28.53 in. length; includes powdered-metal Gusher bearing to allow grease to penetrate bearing surfaces.

What It Helps Address

  • Loose or imprecise steering feel
  • Clunking or play in the steering linkage
  • Uneven tire wear caused by worn steering components
  • Restoring proper toe control after tie rod wear

Installation Notes

Verify axle configuration and right outer application before installation. Match the thread direction, thread size, and overall length to the removed part to confirm correct steering linkage geometry. Professional alignment is recommended after replacement.

Quality Assurance

MOOG DS1309 is backed by superior materials and rigorous testing for reliable steering service. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Related reading

This part fits 16 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
1997DodgeRam 15004WDRight Outerwith Dana 44 Axle; 28.53 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1997DodgeRam 25004WDRight Outerwith Dana 44 OR 60 Axle; 28.53 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1997DodgeRam 3500RWDRight Outerwith Solid Front Axle; 28.53 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1997DodgeRam 35004WDRight Outerwith Dana 60 Axle; 28.53 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1996DodgeRam 15004WDRight Outerwith Dana 44 Axle; 28.53 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1996DodgeRam 25004WDRight Outerwith Dana 44 OR 60 Axle; 28.53 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1996DodgeRam 3500RWDRight Outerwith Solid Front Axle; 28.53 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1996DodgeRam 35004WDRight Outerwith Dana 60 Axle; 28.53 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1995DodgeRam 15004WDRight Outerwith Dana 44 Axle; 28.53 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1995DodgeRam 25004WDRight Outerwith Dana 44 OR 60 Axle; 28.53 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1995DodgeRam 3500RWDRight Outerwith Solid Front Axle; 28.53 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1995DodgeRam 35004WDRight Outerwith Dana 60 Axle; 28.53 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1994DodgeRam 15004WDRight Outerwith Dana 44 Axle; 28.53 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1994DodgeRam 25004WDRight Outerwith Dana 44 OR 60 Axle; 28.53 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1994DodgeRam 3500RWDRight Outerwith Solid Front Axle; 28.53 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1994DodgeRam 35004WDRight Outerwith Dana 60 Axle; 28.53 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
Directly replaces or cross-references 18 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Mevotech Supreme — MDS1309MOOG Chassis Products — DS130912-8700545A305846A3058A269-6080410-1058410-1058B580-0565203756452037569520375766126307861363078D1309JTE1533R250528XDS1309
