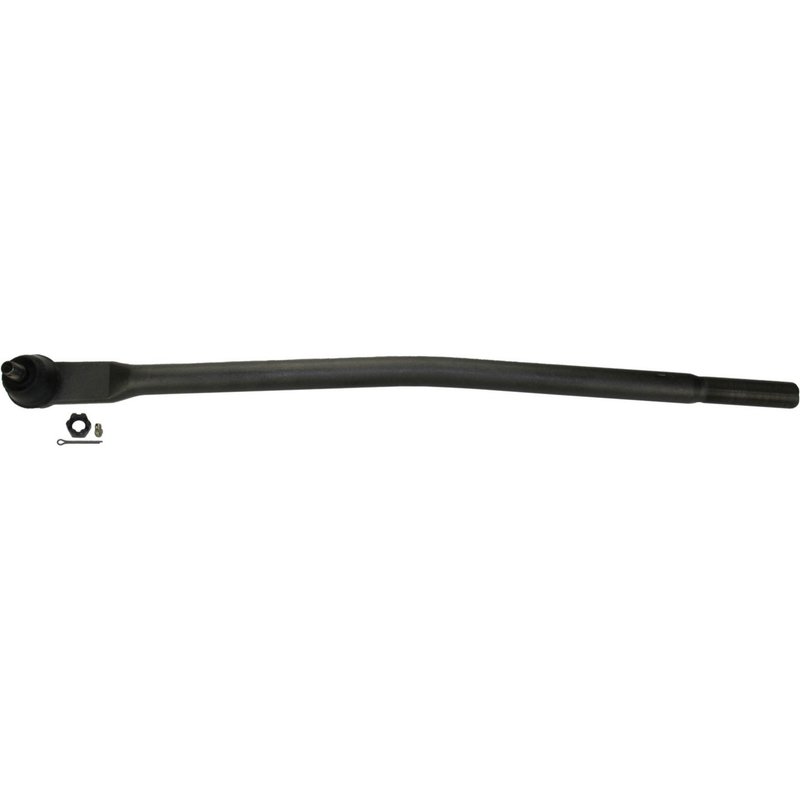

Moog DS1459 Steering Tie Rod End - Right Inner

MOOG DS1459 Steering Tie Rod End

The MOOG DS1459 steering tie rod end is built for the right inner steering position on select 1998-1999 Dodge Ram 2500 and Dodge Ram 3500 applications. It features a male end, a counterclockwise thread direction, and a 1.000-inch thread diameter with 18 threads per inch for the end 1 connection.

For Dodge Ram 2500 and Ram 3500 steering repair, this MOOG DS1459 tie rod end is engineered with a 28.000-inch stud center-to-end length and a powdered-metal Gusher bearing to help grease reach bearing surfaces during service.

• Steering tie rod end for the right inner position
• Fits 1998-1999 Dodge Ram 2500, right inner
• Fits 1998-1999 Dodge Ram 3500, right inner
• Male end 2 with counterclockwise end 1 thread direction
• 1.000-inch thread diameter and 18 TPI at end 1
• 28.000-inch stud center-to-end length
• Includes a powdered-metal Gusher bearing for grease flow to bearing surfaces

This part cross-references Mevotech Supreme MDS1459 for the same application.

Detailed Fitment and Function

The MOOG DS1459 is a steering tie rod end for the right inner side on 1998-1999 Dodge Ram 2500 and 1998-1999 Dodge Ram 3500 models, including Ram 3500 trucks with a solid front axle. It is a direct-fit steering component for vehicles that require the specified 28-inch length and a non-tapered hole configuration. The DS1459 part number is commonly searched for Dodge Ram steering service, Ram 2500 inner tie rod replacement, and Ram 3500 right inner steering linkage repair.

Common Problems This Part Can Address

• Excessive steering play in the right inner linkage
• Loose or worn tie rod end joints
• Uneven front-end steering response
• Grease retention issues at the bearing surface
• Steering linkage wear on Dodge Ram 2500 and Ram 3500 trucks

Installation Notes and Tips

Verify the right inner position, thread direction, thread diameter, and 28.000-inch length before installation. Confirm the vehicle uses the listed non-tapered hole configuration and, for Ram 3500 applications, the solid front axle note where applicable. After installation, perform a professional alignment and inspect adjacent steering components for wear.

Quality Assurance

MOOG is known for ongoing chassis design updates that focus on longer service life and easier replacement. The DS1459 reflects that approach with service-oriented construction and a greaseable bearing design for steering maintenance.
