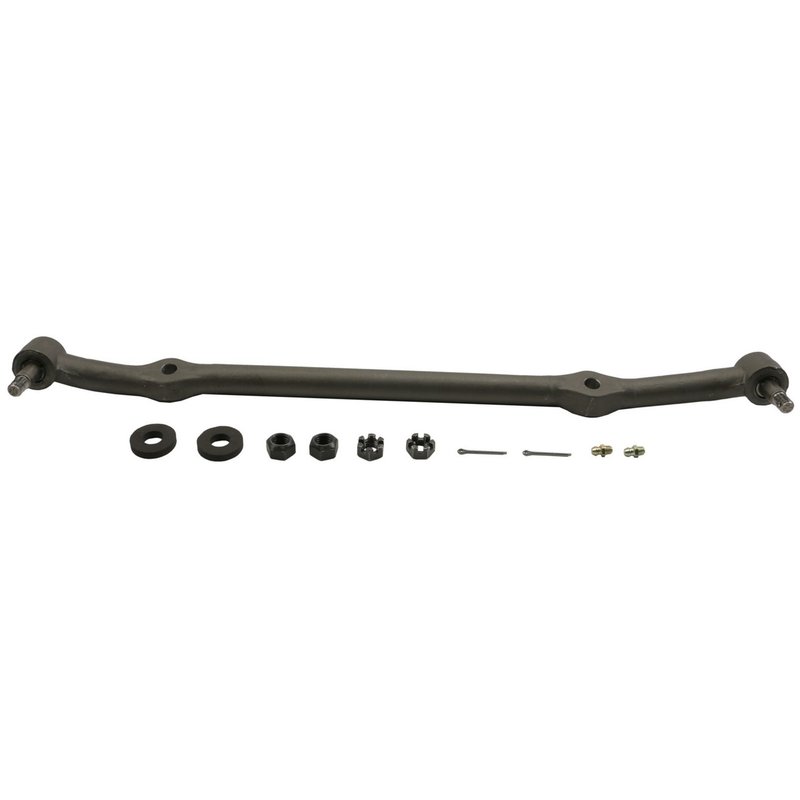

Moog DS909 Steering Center Link

Brand Moog DS909
Fits Chevrolet, Oldsmobile, Buick, GMC, and Pontiac · 103 vehicles

Premium grade. Forged steel construction with a dust boot for added protection.

Greaseable design. Helps support smoother service and easier maintenance over time.

Mounting hardware included. Simplifies installation and replacement.

Cross-references Centric Parts 626.66306, Delphi TL495 and MAS Industries D909 for the same application. See all 30.

$92.47Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $92.47
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

MOOG DS909 Steering Center Link

The MOOG DS909 steering center link is a premium replacement for classic GM A-body and G-body steering systems. Built from forged steel with greaseable service points, it is made for drivers restoring steering response on vehicles like the Chevrolet Monte Carlo, Buick Regal, and Pontiac Grand Prix.

Key Features

  • Forged steel construction for strength and durability
  • Greaseable design to support routine chassis service
  • Dust boot included to help protect internal bearing surfaces
  • Mounting hardware included for installation convenience
  • Premium grade replacement steering center link
  • Clockwise right-hand threads on both ends
  • 21.86-inch overall length
  • Male ends with 7/16-20 thread on end 1 and 20 pitch on end 2

Detailed Description

MOOG DS909 is a steering center link engineered for direct replacement in a wide range of rear-wheel-drive GM vehicles. It uses forged steel construction, male threaded ends, and a greaseable design with a powdered-metal gusher bearing noted in fitment details to help grease reach bearing surfaces. This part cross-references Delphi TL495 and Centric Parts 626.66306 for the same application. Compatible With 1978-1988 Chevrolet Monte Carlo, 1978-1987 Buick Regal, and 1978-1987 Chevrolet El Camino applications, as well as other listed GM models, the DS909 supports accurate steering linkage restoration.

What It Helps Address

  • Loose or vague steering feel from a worn center link
  • Excess play in the steering linkage
  • Clunking or movement caused by worn steering components
  • Grease retention issues in serviceable steering linkage parts
  • Restoration needs on classic Chevrolet, Buick, Oldsmobile, and Pontiac platforms

Installation Notes and Tips

Verify thread direction, thread size, and overall length before installation. The DS909 uses clockwise right-hand threads on both ends and includes mounting hardware and dust boot details as listed. For best results, inspect related steering and suspension components at the same time, including tie rod ends and idler arm parts, so the new center link is not installed into a worn system. Fits 1978-1988 Chevrolet Monte Carlo, N/A; Fits 1978-1987 Buick Regal, N/A; Fits 1978-1987 Chevrolet El Camino, N/A; Fits 1978-1983 Chevrolet Malibu, N/A; Fits 1978-1987 Pontiac Grand Prix, N/A.

Quality Assurance

MOOG is known for ongoing chassis design updates that improve serviceability and part life. The DS909 reflects that approach with a premium-grade forged steel build and greaseable construction for regular maintenance on compatible steering systems. Part number DS909 is also listed under MOOG Chassis Products DS909.

This part fits 103 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
1988ChevroletMonte CarloN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1988OldsmobileCutlass SupremeRWDN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1987BuickRegalN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1987ChevroletEl CaminoN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1987ChevroletMonte CarloN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1987OldsmobileCutlassN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1987OldsmobileCutlass SalonN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1987OldsmobileCutlass SupremeN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1987PontiacGrand PrixN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1986BuickRegalN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1986ChevroletEl CaminoN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1986ChevroletMonte CarloN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1986OldsmobileCutlassN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1986OldsmobileCutlass SalonN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1986OldsmobileCutlass SupremeN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1986PontiacBonnevilleN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1986PontiacGrand PrixN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1985BuickRegalN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1985ChevroletEl CaminoN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1985ChevroletMonte CarloN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1985OldsmobileCutlassN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1985OldsmobileCutlass SalonN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1985OldsmobileCutlass SupremeN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1985PontiacBonnevilleN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1985PontiacGrand PrixN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1984BuickRegalN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1984ChevroletEl CaminoN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1984ChevroletMonte CarloN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1984OldsmobileCutlass CalaisN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1984OldsmobileCutlass SupremeN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1984PontiacBonnevilleN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1984PontiacGrand PrixN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1983BuickRegalN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1983ChevroletEl CaminoN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1983ChevroletMalibuN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1983ChevroletMonte CarloN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1983OldsmobileCutlass CalaisN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1983OldsmobileCutlass CruiserN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1983OldsmobileCutlass SupremeN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1983PontiacBonnevilleN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1983PontiacGrand PrixN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1982BuickRegalN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1982ChevroletEl CaminoN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1982ChevroletMalibuN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1982ChevroletMonte CarloN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1982OldsmobileCutlass CalaisN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1982OldsmobileCutlass CruiserN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1982OldsmobileCutlass SupremeN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1982PontiacBonnevilleN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1982PontiacGrand LeMansN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1982PontiacGrand PrixN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1981BuickCenturyN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1981BuickRegalN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1981ChevroletEl CaminoN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1981ChevroletMalibuN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1981ChevroletMonte CarloN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1981OldsmobileCutlassN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1981OldsmobileCutlass CalaisN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1981OldsmobileCutlass CruiserN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1981OldsmobileCutlass SupremeN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1981PontiacGrand LeMansN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1981PontiacGrand PrixN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1981PontiacLeMansN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1980BuickCenturyN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1980BuickRegalN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1980ChevroletEl CaminoN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1980ChevroletMalibuN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1980ChevroletMonte CarloN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1980OldsmobileCutlassN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1980OldsmobileCutlass CalaisN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1980OldsmobileCutlass CruiserN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1980OldsmobileCutlass SalonN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1980OldsmobileCutlass SupremeN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1980PontiacGrand AmN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1980PontiacGrand LeMansN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1980PontiacGrand PrixN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1980PontiacLeMansN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1979BuickCenturyN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1979BuickRegalN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1979ChevroletEl CaminoN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1979ChevroletMalibuN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1979ChevroletMonte CarloN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1979OldsmobileCutlassN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1979OldsmobileCutlass CalaisN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1979OldsmobileCutlass SalonN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1979OldsmobileCutlass SupremeN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1979PontiacGrand AmN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1979PontiacGrand LeMansN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1979PontiacGrand PrixN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1979PontiacLeMansN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1978BuickCenturyN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1978BuickRegalN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1978ChevroletEl CaminoN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1978ChevroletMalibuN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1978ChevroletMonte CarloN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1978OldsmobileCutlassN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1978OldsmobileCutlass CalaisN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1978OldsmobileCutlass SalonN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1978OldsmobileCutlass SupremeN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1978PontiacGrand AmN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1978PontiacGrand LeMansN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1978PontiacGrand PrixN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1978PontiacLeMansN/ANew Pre-Crimped Metric Nuts are Included; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
Directly replaces or cross-references 30 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Centric Parts — 626.66306Delphi — TL495MAS Industries — D909Mevotech Supreme — MDS909MOOG Chassis Products — DS90913-8200745B003446B0034A272-1151272-1213435-1034435-1034B580-1041382007E782945978341987835787783763880490905230152162766306DL909DL932DL1003DS-909DS1003JTY220LC1031LS1029XDS909
