Moog ES2231RL Steering Tie Rod End - Outer

OE Quality 60-Day Returns

Moog ES2231RL Steering Tie Rod End - Outer

Brand	Moog ES2231RL
Position	Outer
Dust Boot Included	Yes
End 1 Gender	FEMALE
End 1 Thread Diameter	14.0
End 1 Thread Direction	Clockwise
End 1 Thread Pitch	1.5
End 2 Gender	Female
End 2 Thread Diameter	12.0
End 2 Thread Pitch	1.75
Greaseable	Yes
Length Stud Center to End	4.170
Type	STRAIGHT
Fits	Chevrolet and Cadillac · 28 vehicles

Fast installation. MOOG problem-solving innovations help make installation hassle-free.

Dust boot included. Helps protect the joint from dirt and debris.

Greaseable design. Allows routine lubrication for smoother operation.

Cross-references ACI 382010, Mevotech Supreme MES2231RL and MOOG Chassis Products ES2231RL for the same application. See all 25.

$75.96Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Steering Tie Rod End options

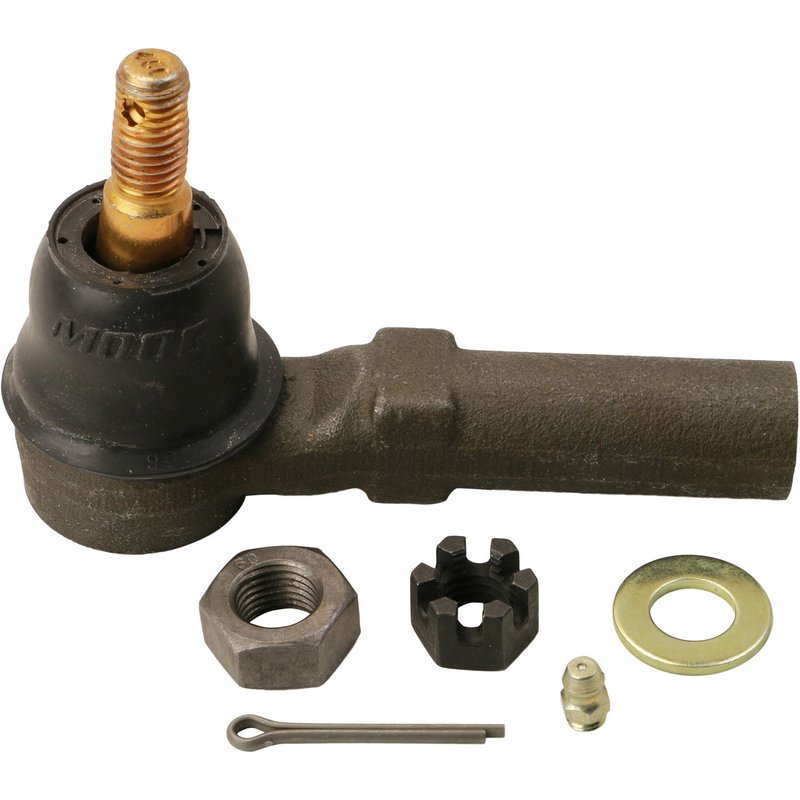

MOOG ES2231RL Outer Tie Rod End

MOOG ES2231RL is an outer tie rod end built for steering service on select Chevrolet Corvette and Cadillac XLR applications. It uses a straight, greaseable design with a dust boot and female threaded ends to support precise steering linkage replacement.

Key Features

Outer tie rod end for steering linkage service
Straight design with female end connections
Greaseable construction for routine lubrication
Dust boot included to help protect the joint
End 1 thread: 14.0 mm, clockwise, 1.5 pitch
End 2 thread: 12.0 mm, 1.75 pitch
Stud center-to-end length: 4.170 in.

Detailed Description

Built by MOOG, part number ES2231RL is an outer tie rod end for steering systems that require a straight, female-to-female configuration. The greaseable design and included dust boot support serviceability and joint protection, while the threaded dimensions help ensure proper replacement on the intended vehicle applications. This part cross-references TRW JTE1373 for the same application.

Compatible With 1997-2013 Chevrolet Corvette, outer, and 2004-2009 Cadillac XLR, outer. For Corvette and XLR steering repair work, MOOG ES2231RL provides a direct-fit replacement option for the specified outer position.

Common Problems This Part Can Help Address

Loose or imprecise steering feel from a worn outer tie rod end
Clunking or play in the steering linkage
Uneven tire wear related to steering geometry wear
Grease loss or contamination at the joint area
Replacement needs during front-end steering service on Corvette or XLR models

Installation Notes and Tips

Verify thread direction, thread diameter, pitch, and stud length before installation. After replacement, have the steering system inspected and the alignment checked to confirm toe settings are correct. This part is listed for outer steering applications on 1997-2013 Chevrolet Corvette and 2004-2009 Cadillac XLR.

Quality Assurance

MOOG backs this outer tie rod end with superior materials and testing focused on reliable steering performance and easier installation. The ES2231RL is engineered for consistent fitment on the listed applications and is supported by MOOG chassis product standards.

This part fits 28 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Submodel	Position	Notes
2013	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2012	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2011	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2010	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2009	Cadillac	XLR	V	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2009	Cadillac	XLR	Platinum	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2009	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2008	Cadillac	XLR	V	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2008	Cadillac	XLR	Base	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2008	Cadillac	XLR	Platinum	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2008	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2007	Cadillac	XLR	V	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2007	Cadillac	XLR	Base	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2007	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2006	Cadillac	XLR	V	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2006	Cadillac	XLR	Base	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2006	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2005	Cadillac	XLR	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2005	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2004	Cadillac	XLR	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2004	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2003	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2002	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2001	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2000	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
1999	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
1998	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
1997	Chevrolet	Corvette	—	Outer	Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
No rows match your filter.

Directly replaces or cross-references 25 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

ACI — 382010Mevotech Supreme — MES2231RLMOOG Chassis Products — ES2231RLTRW — JTE137303-8201003-8201545A062146A0621A269-2958401-1621531-528612.620913820154011621B78416377849266260000012605701026057011260718322608658161362091ES2231RES3457TO90025
