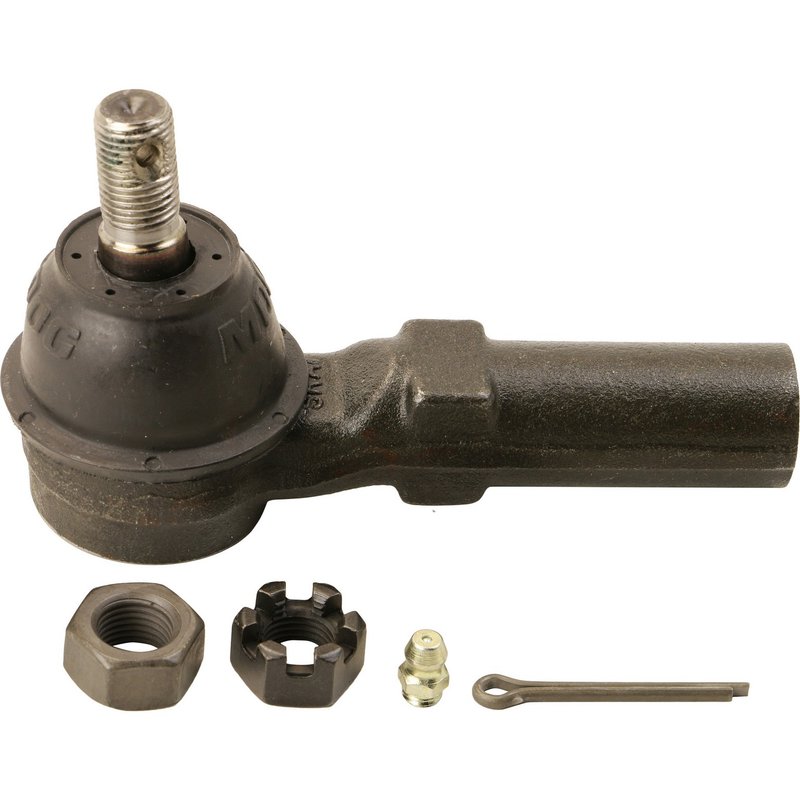

Moog ES2814RL Steering Tie Rod End - Outer
| Brand | Moog ES2814RL |
|---|---|
| Position | Outer |
| Dust Boot Included | Yes |
| End 1 Gender | FEMALE |
| End 1 Thread Diameter | 12.0 |
| End 1 Thread Direction | Clockwise |
| End 1 Thread Pitch | 1.25 |
| End 2 Gender | Female |
| End 2 Thread Diameter | 12.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.25 |
| Greaseable | Yes |
| Length Stud Center to End | 3.940 |
| Type | STRAIGHT |
| Fits | Nissan · 41 vehicles |
Cross-references Aftermarket 485202B025, Beck/Arnley 101-4534 and Centric Parts 612.42013 for the same application. See all 34.
$35.16Free shipping
In stock · usually ships same day before 1pm CST
Vehicle: not selected
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Fitment not checked
Select your vehicle to confirm fitment
Verify this part fits before purchasing β free returns if it doesn't
Step 2 — Quantity
$35.16
Free shipping
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options
MOOG ES2814RL Outer Tie Rod End
MOOG ES2814RL is an outer tie rod end built for Nissan steering applications that need precise linkage at the wheel end. It features a straight design, female threaded ends, a greaseable construction, and a dust boot to support smoother steering response and serviceability.
Key Features
- Outer tie rod end for steering linkage service
- Straight design with female end connections
- Greaseable construction for routine lubrication
- Dust boot included to help protect the joint
- 12.0 mm thread diameter with 1.25 thread pitch on both ends
- Clockwise thread direction on both ends
- Stud center to end length: 3.940 in.
Fitment and Application
- Fits 1995-2006 Nissan Sentra, outer.
- Fits 1997-2001 Nissan Altima, outer.
- Fits 1995-1998 Nissan 200SX, outer.
- Fits 1996 Nissan Altima, outer; from 2/96; includes powdered-metal gusher bearing to allow grease to penetrate bearing surfaces.
- Fits 1989-1994 Nissan 240SX, outer.
- Fits 1992-1994 Nissan Sentra, outer; USA built; includes powdered-metal gusher bearing to allow grease to penetrate bearing surfaces.
- Fits 1991 Nissan Sentra, outer; greasable; USA built; includes powdered-metal gusher bearing to allow grease to penetrate bearing surfaces.
- Fits 1987-1990 Nissan Pulsar NX, outer.
- Fits 1987-1990 Nissan Sentra, outer; greasable; includes powdered-metal gusher bearing to allow grease to penetrate bearing surfaces.
- Fits 1986 Nissan Sentra, outer; from 1/86; greasable; includes powdered-metal gusher bearing to allow grease to penetrate bearing surfaces.
Detailed Description
MOOG ES2814RL is engineered for Nissan Sentra, Altima, 200SX, 240SX, and Pulsar NX steering systems where the outer tie rod end connects the steering linkage to the wheel assembly. The greaseable design and included dust boot support long-term service, while the straight, female-threaded configuration helps match the specified OE-style application. This part cross-references Beck/Arnley 101-4534 and Mevotech Supreme MES2814RL for the same application. For shoppers searching for a Nissan Sentra outer tie rod end, Nissan Altima steering tie rod replacement, or MOOG ES2814RL fitment for 1986-2006 Nissan models, this part number is a direct reference point.
Common Problems This Part Can Address
- Loose or imprecise steering feel at the front wheels
- Clunking or play from a worn outer tie rod end
- Uneven tire wear caused by steering linkage wear
- Difficulty maintaining alignment after steering component wear
- Reduced steering response in high-mileage Nissan suspension systems
Installation Notes and Quality
Verify thread size, thread direction, and vehicle-specific fitment before installation. After replacement, a professional wheel alignment is recommended to restore steering geometry. MOOG backs this outer tie rod end with superior materials and rigorous testing, and its problem-solving design features are intended to support fast, hassle-free installation on the specified Nissan applications.
This part fits 41 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Nissan | Sentra | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2005 | Nissan | Sentra | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2004 | Nissan | Sentra | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2003 | Nissan | Sentra | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2002 | Nissan | Sentra | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2001 | Nissan | Altima | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2001 | Nissan | Sentra | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2000 | Nissan | Altima | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2000 | Nissan | Sentra | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1999 | Nissan | Altima | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1999 | Nissan | Sentra | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1998 | Nissan | 200SX | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1998 | Nissan | Altima | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1998 | Nissan | Sentra | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1997 | Nissan | 200SX | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1997 | Nissan | Altima | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1997 | Nissan | Sentra | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1996 | Nissan | 200SX | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1996 | Nissan | Altima | — | — | — | Outer | From 2/96; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1996 | Nissan | Sentra | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1995 | Nissan | 200SX | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1995 | Nissan | Sentra | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1994 | Nissan | 240SX | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1994 | Nissan | Sentra | — | 1.6L | L4 | Outer | USA Built; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1993 | Nissan | 240SX | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1993 | Nissan | Sentra | — | 1.6L | L4 | Outer | USA Built; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1992 | Nissan | 240SX | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1992 | Nissan | Sentra | — | 1.6L | L4 | Outer | USA Built; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1991 | Nissan | 240SX | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1991 | Nissan | Sentra | — | 1.6L | L4 | Outer | Greasable; USA Built; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1990 | Nissan | 240SX | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1990 | Nissan | Pulsar NX | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1990 | Nissan | Sentra | FWD | — | — | Outer | Greasable; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1989 | Nissan | 240SX | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1989 | Nissan | Pulsar NX | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1989 | Nissan | Sentra | FWD | — | — | Outer | Greasable; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1988 | Nissan | Pulsar NX | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1988 | Nissan | Sentra | FWD | — | — | Outer | Greasable; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1987 | Nissan | Pulsar NX | — | — | — | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1987 | Nissan | Sentra | FWD | — | — | Outer | Greasable; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1986 | Nissan | Sentra | — | — | — | Outer | From 1/86; Greasable; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| No rows match your filter. | |||||||
Directly replaces or cross-references 34 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Aftermarket — 485202B025Beck/Arnley — 101-4534Centric Parts — 612.42013Mevotech Supreme — MES2814RLMOOG Chassis Products — ES2814RL03-5100245A043646A0436A101-4010101-4536269-2743401-1436401-1436B534-42548520-4B00048520-35F2548520-50A0048520-50A2548520-50A2648520-53M2548520-Q520048520-Q560148520Q5600351002485202B003485204B025485204Z025101472061342013ES2814ES2971JTE266T2814XES2814RL
