MoogPart #: ES2814RL

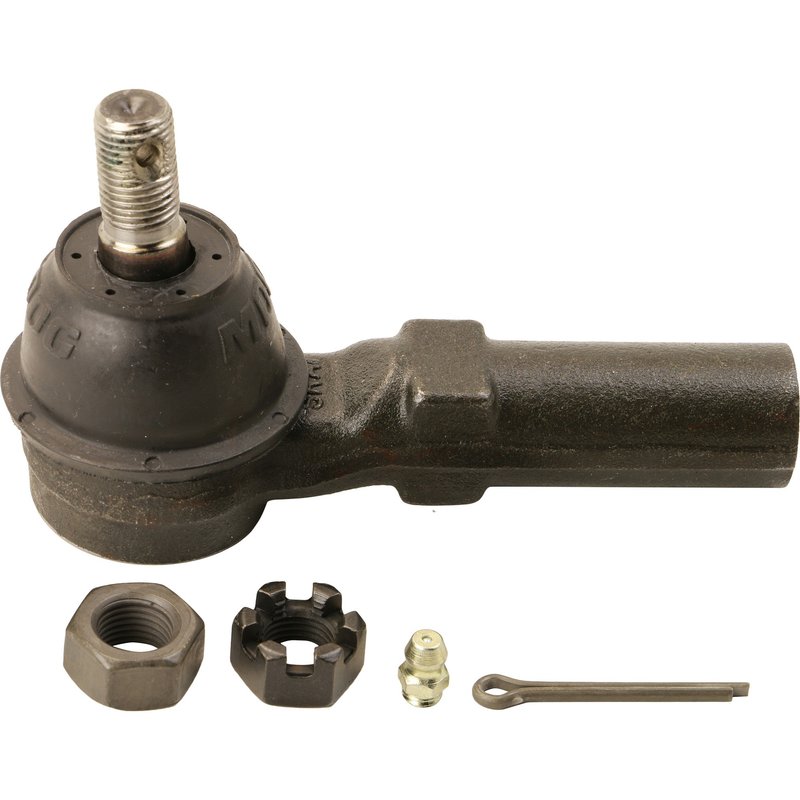

Moog ES2814RL Steering Tie Rod End - Outer
41 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$33.75Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Nissan, 200SX, 240SX, Altima, Pulsar NX, and Sentra
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Steering Tie Rod End options
MOOG ES2814RL Outer Tie Rod End
MOOG ES2814RL is an outer tie rod end for Nissan steering applications that need precise linkage at the wheel end. It uses a straight, female-threaded design with greaseable service points and a dust boot to support smoother steering response and easier maintenance.
Compatible with Nissan Sentra, Altima, 200SX, 240SX, and Pulsar NX applications, this outer tie rod end is built around the fitment and service details needed for accurate steering repair. The ES2814RL part number is commonly searched for Nissan Sentra outer tie rod end replacement and Nissan Altima steering linkage service.
Key Features
- Outer tie rod end for steering linkage repair
- Straight design with female ends
- Greaseable construction for serviceable lubrication
- Dust boot included to help protect internal components
- 12.0 mm thread diameter with 1.25 thread pitch on both ends
- Clockwise thread direction on both ends
- Stud center to end length: 3.940
Fitment Details
- Fits 1995-2006 Nissan Sentra, Outer
- Fits 1997-2001 Nissan Altima, Outer
- Fits 1995-1998 Nissan 200SX, Outer
- Fits 1996 Nissan Altima, Outer; From 2/96; includes powdered-metal gusher bearing to allow grease to penetrate bearing surfaces
- Fits 1989-1994 Nissan 240SX, Outer
- Fits 1992-1994 Nissan Sentra, Outer; USA built; includes powdered-metal gusher bearing to allow grease to penetrate bearing surfaces
- Fits 1991 Nissan Sentra, Outer; Greasable; USA built; includes powdered-metal gusher bearing to allow grease to penetrate bearing surfaces
- Fits 1987-1990 Nissan Pulsar NX, Outer
- Fits 1987-1990 Nissan Sentra, Outer; Greasable; includes powdered-metal gusher bearing to allow grease to penetrate bearing surfaces
- Fits 1986 Nissan Sentra, Outer; From 1/86; Greasable; includes powdered-metal gusher bearing to allow grease to penetrate bearing surfaces
What It Helps Repair
- Loose or vague steering feel
- Excessive play at the front suspension steering linkage
- Uneven tire wear caused by worn steering components
- Clunking or knocking from the outer tie rod area
- Steering response issues on Nissan Sentra and Nissan Altima models
Installation Notes
Verify thread direction, thread diameter, and overall length before installation. This part cross-references Beck/Arnley 101-4534 and Mevotech Supreme MES2814RL for the same application. After installation, perform a professional wheel alignment to restore correct steering geometry and tire wear characteristics.
Quality Assurance
MOOG outer tie rod ends are backed by material selection and testing standards focused on dependable steering performance. The greaseable design and protective boot support long-term serviceability in Nissan steering repairs.
| Brand | Moog |
|---|---|
| Part Number | ES2814RL |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Dust Boot Included | Yes |
| Type | Straight |
| End 2 Thread Diameter | 12.0 |
| Greaseable | Yes |
| End 1 Thread Direction | Clockwise |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.25 |
| End 1 Thread Pitch | 1.25 |
| Length Stud Center to End | 3.940 |
| End 1 Thread Diameter | 12.0 |
This part fits 41 vehicles. Search below:
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Nissan | Sentra | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 2005 | Nissan | Sentra | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 2004 | Nissan | Sentra | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 2003 | Nissan | Sentra | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 2002 | Nissan | Sentra | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 2001 | Nissan | Altima | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 2001 | Nissan | Sentra | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 2000 | Nissan | Altima | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 2000 | Nissan | Sentra | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1999 | Nissan | Altima | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1999 | Nissan | Sentra | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1998 | Nissan | 200SX | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1998 | Nissan | Altima | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1998 | Nissan | Sentra | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1997 | Nissan | 200SX | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1997 | Nissan | Altima | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1997 | Nissan | Sentra | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1996 | Nissan | 200SX | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1996 | Nissan | Altima | Outer | From 2/96; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces | |||
| 1996 | Nissan | Sentra | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1995 | Nissan | 200SX | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1995 | Nissan | Sentra | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1994 | Nissan | 240SX | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1994 | Nissan | Sentra | 1.6L | L4 | Outer | USA Built; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces | |
| 1993 | Nissan | 240SX | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1993 | Nissan | Sentra | 1.6L | L4 | Outer | USA Built; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces | |
| 1992 | Nissan | 240SX | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1992 | Nissan | Sentra | 1.6L | L4 | Outer | USA Built; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces | |
| 1991 | Nissan | 240SX | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1991 | Nissan | Sentra | 1.6L | L4 | Outer | Greasable; USA Built; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces | |
| 1990 | Nissan | 240SX | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1990 | Nissan | Pulsar NX | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1990 | Nissan | Sentra | FWD | Outer | Greasable; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces | ||
| 1989 | Nissan | 240SX | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1989 | Nissan | Pulsar NX | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1989 | Nissan | Sentra | FWD | Outer | Greasable; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces | ||
| 1988 | Nissan | Pulsar NX | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1988 | Nissan | Sentra | FWD | Outer | Greasable; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces | ||
| 1987 | Nissan | Pulsar NX | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. | |||
| 1987 | Nissan | Sentra | FWD | Outer | Greasable; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces | ||
| 1986 | Nissan | Sentra | Outer | From 1/86; Greasable; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
03-51002101-4010101-4534101-45361014720269-2743351002401-1436401-1436B45A043646A0436A48520-35F2548520-4B00048520-50A0048520-50A2548520-50A2648520-53M2548520-Q520048520-Q5601485202B003485202B025485204B025485204Z02548520Q5600534-425612.4201361342013ES2814ES2814RLES2971JTE266MES2814RLT2814XES2814RL
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
