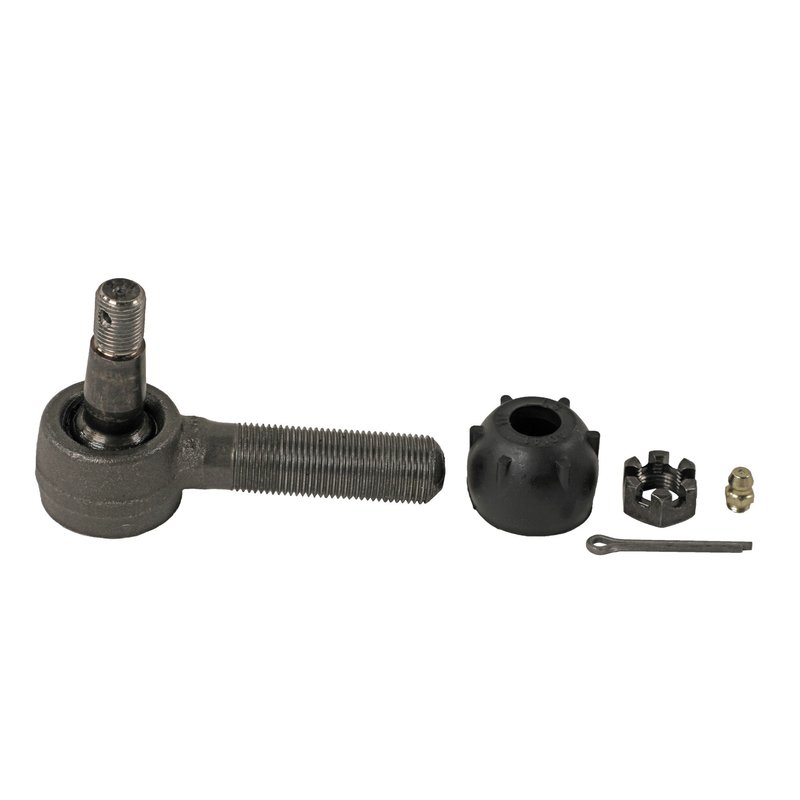

Moog ES2847RT Steering Tie Rod End - Right Outer

MOOG ES2847RT Outer Tie Rod End

MOOG ES2847RT is an outer tie rod end for select Dodge Ramcharger, W150, W250, and W100 applications with a right outer steering position. Built with a greaseable design, a dust boot, and a straight body style, it supports precise steering linkage service on vehicles that need a direct-fit replacement.

Key Features

• Outer tie rod end for the right outer steering position
• Fits select 1986-1993 Dodge Ramcharger, W150, and W250 applications; also fits 1986-1989 Dodge W100
• Female end 1 with clockwise threads and male end 2 with clockwise threads
• Greaseable construction for routine lubrication service
• Dust boot included to help protect the joint area
• Straight design with a stud center-to-end length of 3.385 in.
• End 1 thread pitch: 16 TPI; end 2 thread pitch: 20 TPI

Detailed Description

MOOG ES2847RT is engineered as a steering tie rod end for the right outer location on compatible Dodge trucks and Ramcharger models. The part number ES2847RT is associated with a serviceable, greaseable joint design and a protective dust boot, helping support consistent steering linkage operation during replacement service. For buyers searching for a Dodge Ramcharger right outer tie rod end or a Dodge W150 outer tie rod end, this MOOG component matches the listed steering configuration and thread direction requirements.

This part cross-references Mevotech Supreme MES2847RT for the same application.

What It Helps Address

• Loose or imprecise steering feel at the front end
• Wear in the outer tie rod joint on the right side
• Steering play caused by a deteriorated tie rod end
• Grease retention issues in a serviceable steering joint
• Dust and debris exposure around the steering linkage connection

Installation Notes and Tips

Verify right outer placement, thread direction, and thread pitch before installation. This MOOG ES2847RT is listed for 1986-1993 Dodge Ramcharger, right outer; 1986-1993 Dodge W150, right outer; 1986-1993 Dodge W250, right outer; and 1986-1989 Dodge W100, right outer, with 3500 lb drive axle and right-hand threads. After installation, have the steering geometry inspected and aligned to factory specifications.

Quality Assurance

MOOG backs this outer tie rod end with superior materials and rigorous testing, and its problem-solving design focus supports straightforward installation and dependable service performance.
