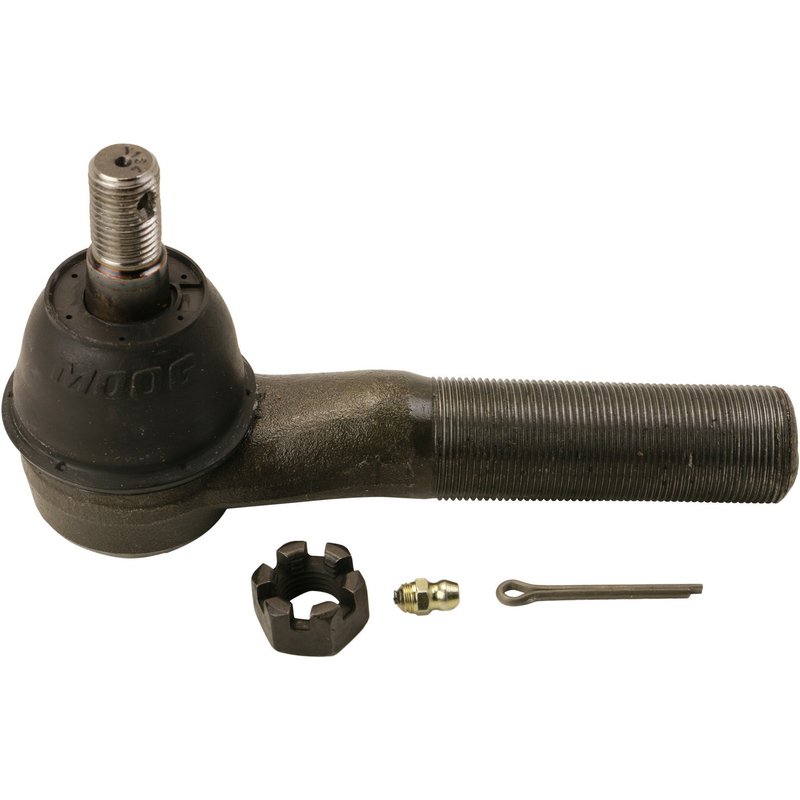

Moog ES3009R Steering Tie Rod End - Left Inner or Left Outer (Steering Arm To Steering Arm)

Overview of Moog ES3009R Steering Tie Rod End

The Moog ES3009R steering tie rod end is engineered for precise steering control and durability. Designed specifically for Ford F-350 models, this component ensures reliable connection within the steering system.

• Compatible with Ford F-350 trucks
• Male end connections on both sides for secure fitment
• Clockwise thread direction on End 1 for proper installation
• Length from stud center to end measures 5.370 inches
• End 1 thread specifications: 1.000 inch diameter with 18 threads per inch

Detailed Product Description

The Moog ES3009R steering tie rod end features male connectors on both ends, designed to fit the steering linkage of Ford F-350 vehicles. The End 1 side has a clockwise thread direction, which is critical for correct installation and secure fastening. With a stud length of 5.370 inches from center to end, this tie rod end matches the OEM specifications for proper steering geometry. The thread diameter of 1.000 inch and 18 threads per inch ensure compatibility with the corresponding steering components, maintaining the integrity of the steering system.

Common Applications and Problem Resolution

• Replaces worn or damaged tie rod ends on Ford F-350 trucks
• Addresses steering play or looseness issues
• Corrects uneven tire wear caused by faulty steering components
• Improves steering response and vehicle handling
• Eliminates noise or vibration from the steering linkage

Installation Notes and Tips

When installing the Moog ES3009R tie rod end, ensure the clockwise thread direction on End 1 is properly aligned to avoid cross-threading. Verify the stud length and thread pitch match the vehicle’s specifications before installation. It is recommended to perform a wheel alignment after replacement to maintain optimal steering performance and tire wear.

Quality Assurance and Warranty

Moog manufactures the ES3009R steering tie rod end to meet or exceed OEM standards for fit, form, and function. While specific warranty details are not provided here, Moog products typically come with a limited warranty covering defects in materials and workmanship. Refer to Moog’s official documentation for complete warranty information.
