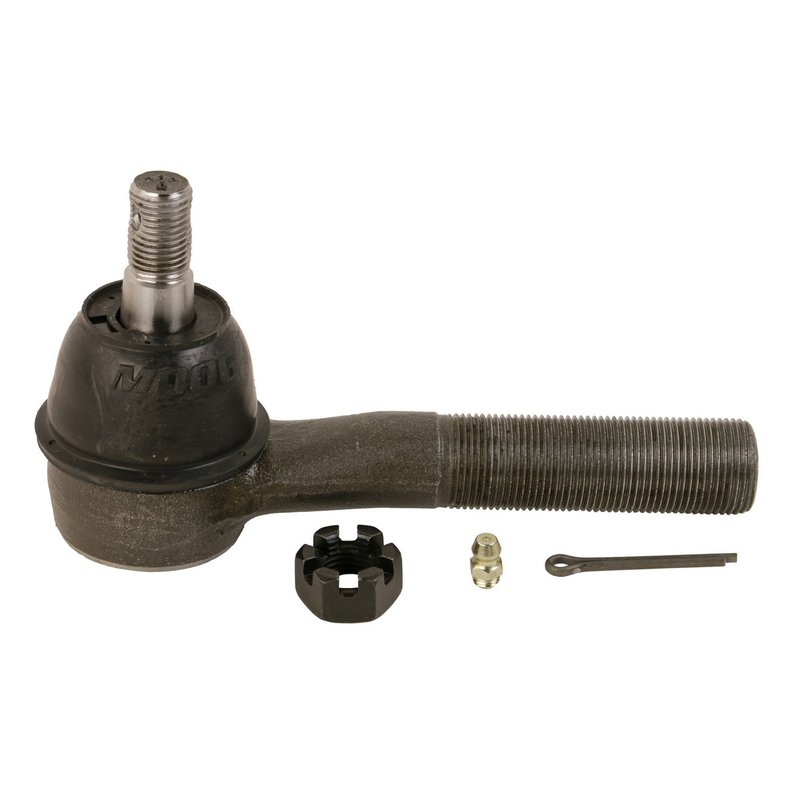

Moog ES3203L Steering Tie Rod End - Left Outer

Overview of Moog ES3203L Steering Tie Rod End

The Moog ES3203L steering tie rod end is engineered for reliable steering performance on Ford E-Series vans, including the E-150, E-250, and E-350 models. Designed with durability and precise fitment in mind, this part ensures smooth steering response and vehicle control.

• Compatible with Ford E-150, E-150 Club Wagon, E-150 Econoline, E-250, E-350 Club Wagon, and E-350 Super Duty models
• Straight type steering tie rod end with male ends on both sides
• Greaseable design for extended service life
• Includes dust boot to protect internal components from contaminants
• Thread specifications: End 1 diameter 22.0 mm (counterclockwise thread), End 2 diameter 14.0 mm with 1.5 pitch threads
• Length from stud center to end measures 5.370 inches

Detailed Product Features and Specifications

The Moog ES3203L steering tie rod end features a straight design with male threads on both ends, making it suitable for specific Ford E-Series vans. The greaseable construction allows for routine maintenance, helping to prevent premature wear and corrosion. A dust boot is included to shield the joint from dirt and moisture, which is critical for maintaining steering precision and longevity. Thread diameters and pitches are precisely matched to factory specifications, with End 1 having a 22.0 mm diameter and counterclockwise thread direction, and End 2 having a 14.0 mm diameter with a 1.5 thread pitch on both ends. The stud length of 5.370 inches ensures proper fit and alignment within the steering assembly.

Applications and Common Repair Uses

• Replacement of worn or damaged steering tie rod ends on Ford E-150 and E-250 Econoline vans
• Restoring steering stability and reducing play in the steering system
• Addressing uneven tire wear caused by faulty tie rod ends
• Eliminating steering noise or vibration linked to joint wear
• Maintaining proper wheel alignment and vehicle handling

Installation Notes and Tips

When installing the Moog ES3203L tie rod end, ensure the vehicle is securely lifted and the steering system is properly supported. Verify thread direction and diameter compatibility before installation. Grease the joint thoroughly using the grease fitting to maximize service life. After installation, a professional wheel alignment is recommended to ensure optimal steering performance and tire wear.

Quality Assurance and Warranty Information

Moog steering components are manufactured to meet or exceed OEM standards, providing reliable fit and function. The ES3203L tie rod end includes a dust boot and greaseable design to enhance durability. While specific warranty details may vary, Moog typically offers a limited warranty against defects in materials and workmanship, supporting long-term vehicle safety and performance.
