Moog ES3306 Steering Tie Rod End - Outer

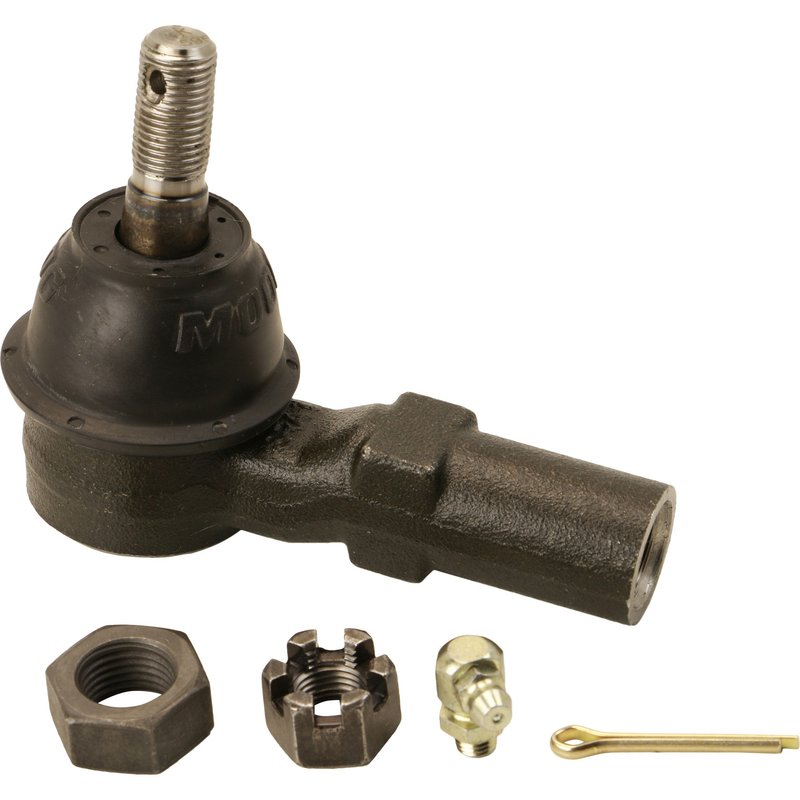

MOOG ES3306 Outer Tie Rod End

The MOOG ES3306 outer tie rod end is built for steering systems that need precise response and dependable service life. It uses a greaseable design with a dust boot and a straight body style to support smooth steering movement in a range of Toyota, Lexus, and Scion applications.

For drivers searching for a Toyota Camry outer tie rod end, Lexus ES300 steering tie rod end, or a MOOG ES3306 replacement, this part is built around fitment-specific dimensions and thread details for direct service on the listed vehicles.

Key Features

• Outer steering tie rod end for front steering linkage service
• Greaseable design for routine lubrication maintenance
• Dust boot included to help protect internal components
• Straight configuration
• Female end connections on both sides
• End 1 thread diameter: 15.0 mm with clockwise thread direction
• End 2 thread diameter: 12.0 mm with 1.25 mm pitch
• Length from stud center to end: 3.300 in.

Detailed Description

MOOG ES3306 is an outer tie rod end engineered for steering repair on select Toyota Camry, Toyota Avalon, Toyota Sienna, Toyota Solara, Lexus ES300, Lexus RX300, and Scion xD and Toyota Yaris applications. The part is backed by MOOG’s material selection and testing standards, with problem-solving design details that support easier installation and serviceability. This part cross-references Mevotech Supreme MES3306 for the same application.

Fitment includes 1992-2004 Toyota Camry, 1995-2004 Toyota Avalon, 1998-2003 Toyota Sienna, 1999-2003 Toyota Solara, 1992-2001 Lexus ES300, 1999-2003 Lexus RX300, 2008-2014 Scion xD, and 2012-2016 Toyota Yaris. If you are replacing a worn Toyota Camry outer tie rod end or servicing a Lexus ES300 steering linkage, the ES3306 provides the specified dimensions for the listed outer position applications.

What It Helps Address

• Loose or vague steering feel from worn outer tie rod joints
• Front-end steering play during lane changes or highway driving
• Uneven tire wear caused by steering linkage wear
• Clunking or knocking from a deteriorated tie rod end
• Grease retention issues when the original joint is no longer serviceable

Installation Notes and Tips

Verify thread diameter, pitch, and overall length against the removed part before installation. After replacement, a professional wheel alignment is recommended to restore steering geometry. Confirm the vehicle’s year, make, model, and outer position application before ordering, especially on Toyota Camry, Lexus ES300, and Toyota Sienna steering repairs.

Quality Assurance

MOOG backs this outer tie rod end with superior materials and rigorous testing to support reliable steering performance and consistent service fitment. The ES3306 is built for the listed applications with attention to lubrication access and installation-friendly design.
