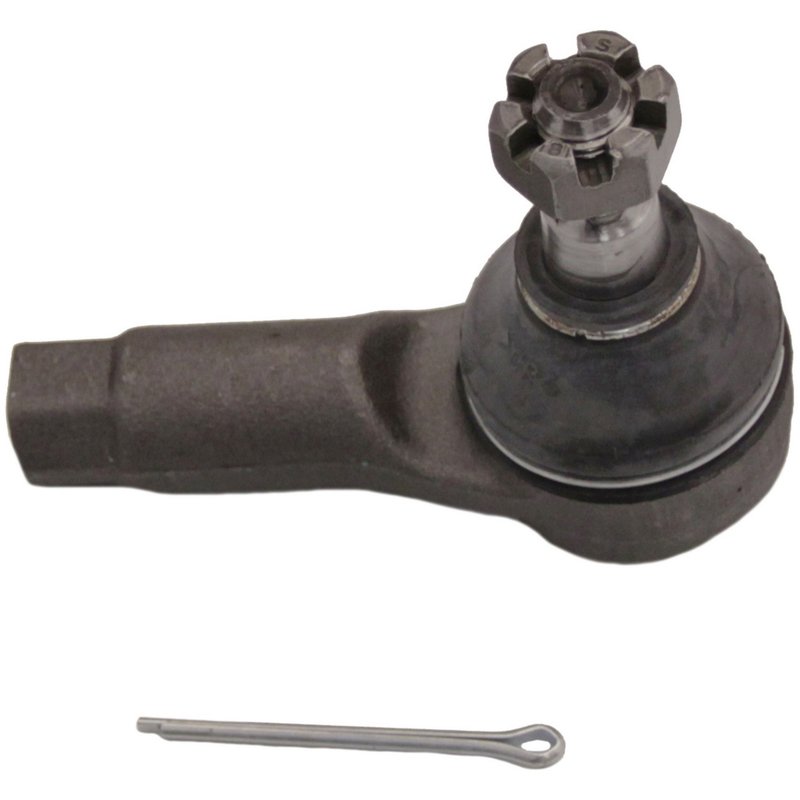

Moog ES3388 Steering Tie Rod End - Outer

MOOG ES3388 Outer Tie Rod End

MOOG ES3388 is a straight steering tie rod end for outer position applications on select Ford and Kia vehicles. Built with female threaded ends and OE-style dimensions, it supports precise steering linkage service for 1994-1997 Ford Aspire and 2001-2005 Kia Rio outer tie rod replacement.

Key Features

• Straight steering tie rod end for outer steering linkage service
• Female end 1 and female end 2 thread design
• 12.0 mm thread diameter at both ends
• End 1 thread pitch: 1.5; end 2 thread pitch: 1.3
• End 2 thread direction: clockwise
• 2.860 in. stud center-to-end length
• No dust boot included
• Non-greaseable design

Detailed Description

MOOG ES3388 is a steering tie rod end engineered for outer steering applications where accurate linkage geometry matters. It is listed for 2001-2005 Kia Rio and 1994-1997 Ford Aspire outer positions, making it a direct-fit option for common steering service jobs on these vehicles. The ES3388 part number is also a useful reference when comparing OE-style replacements for the same application.

MOOG focuses on design updates that simplify replacement and extend service life, and this tie rod end reflects that approach with a straightforward, installation-friendly layout. This part cross-references Beck/Arnley 101-5194 for the same application.

What It Helps Address

• Loose or worn steering response at the outer linkage
• Steering play caused by worn tie rod end joints
• Uneven front-end alignment after steering component wear
• Noisy or unstable steering feel during turning
• Replacement needs on 2001-2005 Kia Rio and 1994-1997 Ford Aspire outer steering positions

Installation Notes and Tips

Verify thread direction, thread diameter, and center-to-end length before installation. Because this ES3388 tie rod end uses a straight, female-threaded design, confirm the outer steering position and compare the existing part to the replacement before assembly. After installation, a professional wheel alignment is recommended to restore steering geometry.

Quality Assurance

MOOG is known in chassis and steering service for ongoing design improvements that support easier replacement and consistent fitment. The ES3388 is built to meet the needs of select Ford Aspire and Kia Rio outer tie rod applications with OE-style dimensional accuracy.
