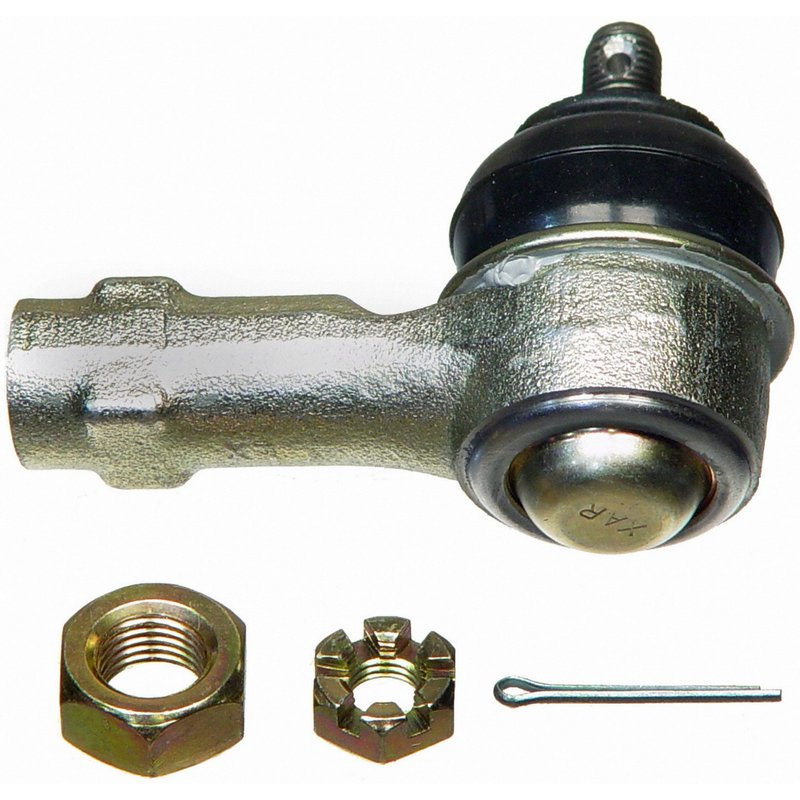

Moog ES3390 Steering Tie Rod End - Outer
OE Quality 60-Day Returns
Moog

Moog ES3390 Steering Tie Rod End - Outer

Brand Moog ES3390
Position Outer
End 1 Gender Female
End 2 Gender Female
Type Straight
End 2 Thread Diameter 10.0
End 2 Thread Pitch 1.3
End 1 Thread Pitch 1.5
Length Stud Center to End 2.870
End 1 Thread Diameter 14.0
Fits Hyundai · 4 vehicles

Straight design. Provides a direct steering linkage replacement with application-specific geometry.

Female-threaded ends. Uses 14.0 mm and 10.0 mm thread sizes with matching pitch specifications.

MOOG engineering. Built with design enhancements that focus on service life and easier replacement.

Cross-references Gates 352020, Mevotech Supreme MES3390 and MOOG Chassis Products ES3390 for the same application. See all 9.

$23.02Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $23.02
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

Steering Tie Rod End Overview

The MOOG ES3390 steering tie rod end is a straight, female-threaded replacement for steering linkage service. It is built for applications that require precise thread engagement and a direct-fit steering connection.

Key Features

  • Straight tie rod end design for steering linkage replacement
  • Female threads on both ends for application-specific fitment
  • Thread sizes of 14.0 mm and 10.0 mm with 1.5 and 1.3 pitch
  • Stud center-to-end length of 2.870 for dimensional match
  • MOOG ES3390 part number for catalog and service reference

Detailed Description

MOOG ES3390 is a steering tie rod end engineered for steering systems that use a straight, female-threaded connection. The dimensional and thread specifications help match the original steering linkage geometry, which is important for maintaining proper steering response and alignment serviceability. This part cross-references Mevotech Supreme MES3390 and Gates 352020 for the same application. Fits 1995-1998 Hyundai Sonata, outer. Fits 1995-1998 Hyundai Sonata, outer.

What It Is Used For

  • Replacing a worn or loose steering tie rod end
  • Restoring steering linkage connection integrity
  • Addressing play in the outer steering linkage
  • Supporting alignment correction after steering component wear

Installation Notes and Tips

Verify thread diameter, thread pitch, and overall length before installation. Confirm the outer steering position and compare the removed part to the ES3390 to ensure correct application match. After installation, a professional wheel alignment is recommended.

Quality Assurance

MOOG is known for ongoing chassis design improvements that focus on longer service life and easier replacement.

Related reading

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
1998HyundaiSonataOuter—
1997HyundaiSonataOuter—
1996HyundaiSonataOuter—
1995HyundaiSonataOuter—
Directly replaces or cross-references 9 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Gates — 352020Mevotech Supreme — MES3390MOOG Chassis Products — ES339003-52020101-4988269-3099401-176256820-37010T3390
