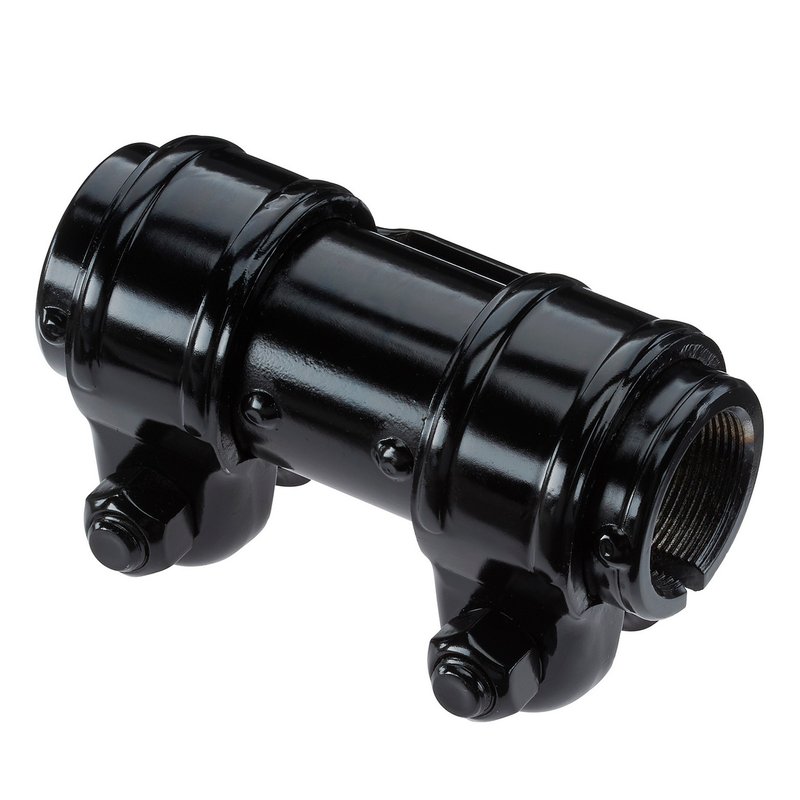

Moog ES3422S Steering Tie Rod End Adjusting Sleeve - Left (Steering Arm to Steering Arm) or Steering Arm To Steering Arm
| Brand | Moog ES3422S |
|---|---|
| Position | Steering Arm To Steering Arm and Left (Steering Arm to Steering Arm) |
| Length | 4.999 |
| Fits | Dodge, Ford, and Ram · 42 vehicles |
Adjusting sleeve. Helps simplify steering tie rod end alignment and replacement.
Problem Solver line. MOOG adds design enhancements that extend product life.
Cross-references Mevotech Supreme MES3422S, Mevotech Supreme MS25900 and Mevotech Supreme MS25901 for the same application. See all 23.
Moog ES3422S Steering Tie Rod End Adjusting Sleeve
The Moog ES3422S steering tie rod end adjusting sleeve is a direct-fit chassis component for steering linkage service on select Ram and Ford heavy-duty trucks. With a 4.999-inch length, it supports precise toe adjustment and secure tie rod alignment during steering system repair.
Key Features
- 4.999-inch adjusting sleeve length for steering linkage applications
- Fits steering arm to steering arm configurations on select Ram trucks
- Fits left-side steering arm to steering arm applications on Ford Super Duty and Excursion models
- MOOG chassis engineering focuses on longer service life and easier installation and replacement
- Part number ES3422S for accurate catalog matching
Detailed Description
Moog ES3422S is a steering tie rod end adjusting sleeve used to connect and fine-tune steering linkage geometry. It is listed for 2011-2013 Ram 2500 and Ram 3500, 2009-2010 Dodge Ram 2500 and Ram 3500, 2008 Dodge Ram 1500 with 8 lug wheels and bracket mounted steering damper, 2003-2008 Dodge Ram 2500 and Ram 3500 with bracket mounted steering damper, 2000-2005 Ford Excursion, and 1999-2004 Ford F-250 Super Duty and F-350 Super Duty. This part cross-references Mevotech Supreme MES3422S for the same application.
Common Steering Issues It Can Address
- Loose or inaccurate toe adjustment in the steering linkage
- Worn adjusting sleeve threads during front-end service
- Steering wheel off-center after tie rod or alignment work
- Uneven tire wear related to incorrect steering geometry
- Steering linkage replacement on Ram and Ford heavy-duty trucks
Installation Notes and Tips
Install ES3422S in the steering arm to steering arm position listed for your vehicle, and verify the correct application before service. After installation, perform a professional wheel alignment to set toe and confirm steering wheel centering. Use the vehicle-specific fitment notes for Ram 1500, Ram 2500, Ram 3500, Ford Excursion, F-250 Super Duty, and F-350 Super Duty applications.
Quality Assurance
MOOG is known in the chassis market for ongoing design updates that improve part life and simplify replacement. The ES3422S part number is cataloged for direct identification and fitment verification across the listed Ram and Ford applications.
| Year | Make | Model | Body Type | # Doors | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | Ram | 2500 | — | — | 4WD | Steering Arm To Steering Arm | — |
| 2013 | Ram | 3500 | Cab & Chassis | 4 Door | — | Steering Arm To Steering Arm | — |
| 2013 | Ram | 3500 | Cab & Chassis | 2 Door | — | Steering Arm To Steering Arm | — |
| 2012 | Ram | 2500 | — | — | 4WD | Steering Arm To Steering Arm | — |
| 2012 | Ram | 3500 | — | — | — | Steering Arm To Steering Arm | — |
| 2011 | Ram | 2500 | — | — | 4WD | Steering Arm To Steering Arm | — |
| 2011 | Ram | 3500 | — | — | — | Steering Arm To Steering Arm | — |
| 2010 | Dodge | Ram 2500 | — | — | 4WD | Steering Arm To Steering Arm | — |
| 2010 | Dodge | Ram 3500 | — | — | — | Steering Arm To Steering Arm | — |
| 2009 | Dodge | Ram 2500 | — | — | 4WD | Steering Arm To Steering Arm | — |
| 2009 | Dodge | Ram 3500 | — | — | — | Steering Arm To Steering Arm | — |
| 2008 | Dodge | Ram 1500 | — | — | 4WD | Steering Arm To Steering Arm | with 8 Lug Wheels; Bracket Mounted Steering Damper |
| 2008 | Dodge | Ram 2500 | — | — | 4WD | Steering Arm To Steering Arm | Bracket Mounted Steering Damper |
| 2008 | Dodge | Ram 3500 | — | — | — | Steering Arm To Steering Arm | Bracket Mounted Steering Damper |
| 2007 | Dodge | Ram 2500 | — | — | 4WD | Steering Arm To Steering Arm | Bracket Mounted Steering Damper |
| 2007 | Dodge | Ram 3500 | — | — | — | Steering Arm To Steering Arm | Bracket Mounted Steering Damper |
| 2006 | Dodge | Ram 2500 | — | — | 4WD | Steering Arm To Steering Arm | Bracket Mounted Steering Damper |
| 2006 | Dodge | Ram 3500 | — | — | — | Steering Arm To Steering Arm | Bracket Mounted Steering Damper |
| 2005 | Dodge | Ram 2500 | — | — | 4WD | Steering Arm To Steering Arm | Bracket Mounted Steering Damper |
| 2005 | Dodge | Ram 3500 | — | — | — | Steering Arm To Steering Arm | Bracket Mounted Steering Damper |
| 2005 | Ford | Excursion | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2004 | Dodge | Ram 2500 | — | — | 4WD | Steering Arm To Steering Arm | Bracket Mounted Steering Damper |
| 2004 | Dodge | Ram 3500 | — | — | — | Steering Arm To Steering Arm | Bracket Mounted Steering Damper |
| 2004 | Ford | Excursion | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2004 | Ford | F-250 Super Duty | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2004 | Ford | F-350 Super Duty | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2003 | Dodge | Ram 2500 | — | — | 4WD | Steering Arm To Steering Arm | Bracket Mounted Steering Damper |
| 2003 | Dodge | Ram 3500 | — | — | — | Steering Arm To Steering Arm | Bracket Mounted Steering Damper |
| 2003 | Ford | Excursion | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2003 | Ford | F-250 Super Duty | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2003 | Ford | F-350 Super Duty | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2002 | Ford | Excursion | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2002 | Ford | F-250 Super Duty | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2002 | Ford | F-350 Super Duty | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2001 | Ford | Excursion | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2001 | Ford | F-250 Super Duty | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2001 | Ford | F-350 Super Duty | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2000 | Ford | Excursion | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2000 | Ford | F-250 Super Duty | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2000 | Ford | F-350 Super Duty | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 1999 | Ford | F-250 Super Duty | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 1999 | Ford | F-350 Super Duty | — | — | 4WD | Left (Steering Arm to Steering Arm) | — |
