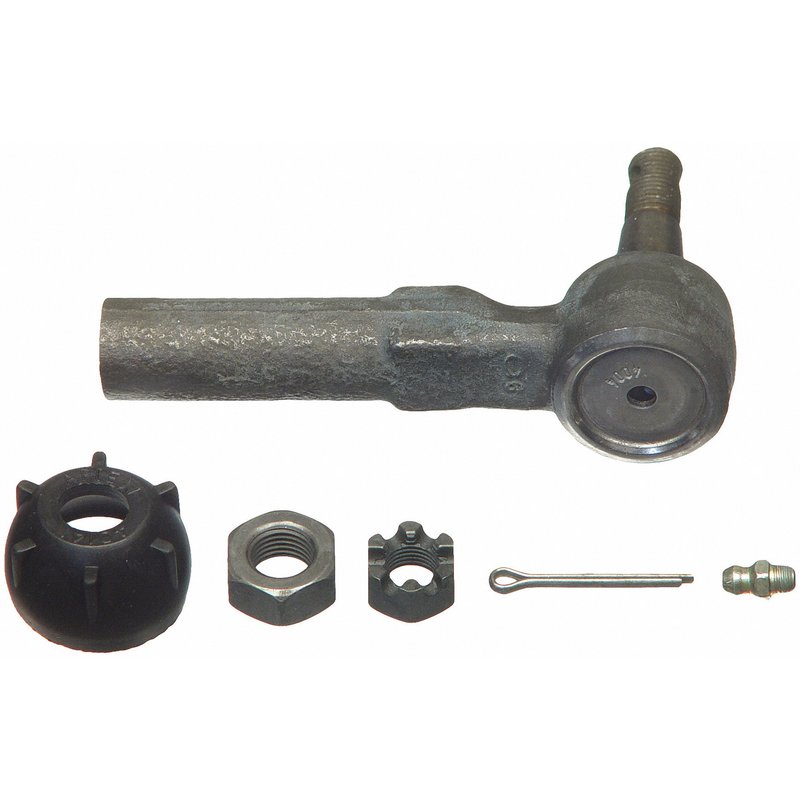

Moog ES3440 Steering Tie Rod End - Outer
MOOG ES3440 Outer Tie Rod End
MOOG ES3440 is an outer tie rod end built for steering service on select Nissan Altima applications. It uses a straight, female-threaded design with clockwise threads on both ends for a precise OE-style fit and dependable steering linkage replacement.
Key Features
- Outer tie rod end for steering linkage repair
- Straight design for direct replacement geometry
- Female end 1 and female end 2 configuration
- End 1 thread diameter: 14.0 mm with 1.5 pitch, clockwise
- End 2 thread diameter: 12.0 mm with 1.3 pitch, clockwise
- Length from stud center to end: 4.410 in.
- MOOG ES3440 is engineered for fast, hassle-free installation
Detailed Description
MOOG ES3440 outer tie rod end is designed for steering systems that require accurate thread engagement and stable linkage geometry. Backed by superior materials and rigorous testing, this steering tie rod end supports consistent performance in the front steering assembly. It is a direct-fit replacement for 1993-1996 Nissan Altima outer steering applications, including 1996 Nissan Altima, outer, thru 2/96, and 1993-1995 Nissan Altima, outer. This part cross-references Beck/Arnley 101-4744 for the same application.
What This Part Helps Address
- Loose or imprecise steering response
- Clunking or play in the outer steering linkage
- Uneven toe settings caused by worn tie rod components
- Steering wander during normal driving
- Wear at the outer tie rod connection point
Installation Notes and Tips
Verify thread direction, thread diameter, and overall length before installation. MOOG ES3440 is an outer tie rod end for Nissan Altima steering service, so confirm the vehicle build date and application notes before ordering. After installation, a professional wheel alignment is required to restore steering geometry and tire wear settings.
Quality Assurance
MOOG outer tie rod ends are backed by superior materials and rigorous testing to support reliable steering performance. MOOG problem-solving design features are used to help make installation straightforward and reduce service time.
| Brand | Moog |
|---|---|
| Part Number | ES3440 |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Type | Straight |
| End 2 Thread Diameter | 12.0 |
| End 1 Thread Direction | Clockwise |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.3 |
| End 1 Thread Pitch | 1.5 |
| Length Stud Center to End | 4.410 |
| End 1 Thread Diameter | 14.0 |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1996 | Nissan | Altima | Outer | Thru 2/96; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1995 | Nissan | Altima | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1994 | Nissan | Altima | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 1993 | Nissan | Altima | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
