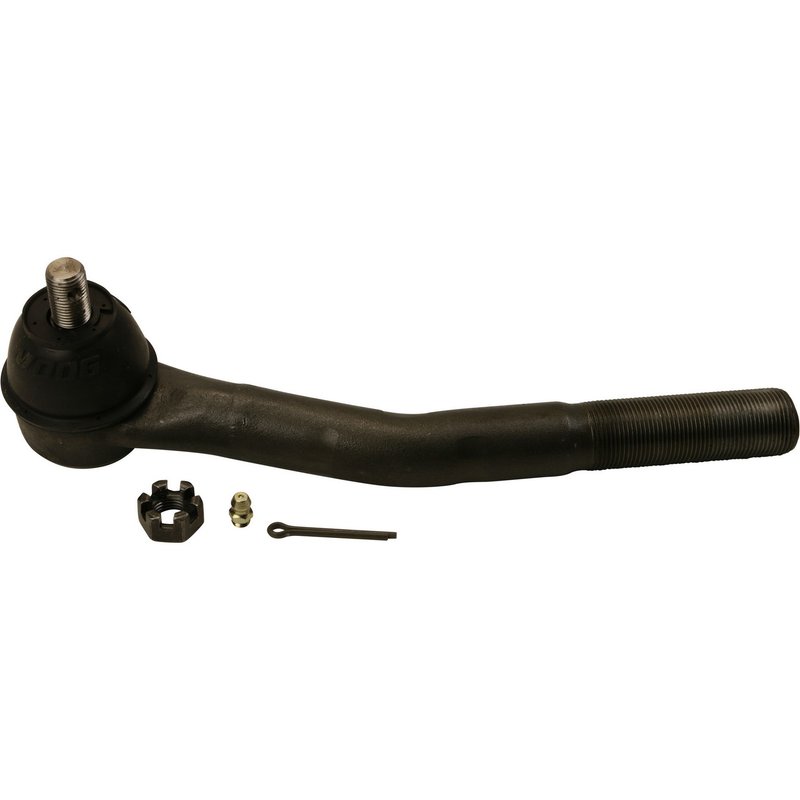

Moog ES3474 Steering Tie Rod End - Right Upper Outer
OE Quality 60-Day Returns
Moog

Moog ES3474 Steering Tie Rod End - Right Upper Outer

Brand Moog ES3474
Position Right Upper Outer
Dust Boot Included Yes
End 1 Gender MALE
End 1 Thread Diameter 24.0
End 1 Thread Direction Clockwise
End 1 Thread Pitch 1.5
End 2 Gender Male
End 2 Threads Per Inch 20
Greaseable Yes
Length Stud Center to End 9.460
Type BENT
Fits Jeep · 6 vehicles

Fast, hassle-free installation. Problem-solving design helps make replacement straightforward.

Dust boot included. Helps protect the joint from dirt and debris.

Greaseable design. Allows maintenance for smoother, longer-lasting operation.

Cross-references Mevotech Supreme MES3474, MOOG Chassis Products ES3474 and Mopar 52088461 for the same application. See all 16.

$50.11Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $50.11
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

Moog ES3474 Outer Tie Rod End

MOOG ES3474 is an outer tie rod end for steering systems that need precise linkage at the right front upper outer position. It uses a bent design, a greaseable service point, and a dust boot to support dependable steering response on the 1999-2004 Jeep Grand Cherokee.

Key Features

  • Part number: ES3474
  • Outer tie rod end for steering and gear-related components
  • Bent design for the specified application
  • Greaseable construction for serviceable maintenance
  • Dust boot included to help protect internal wear surfaces
  • Male end configuration on both ends
  • End 1 thread: 24.0 mm diameter, 1.5 pitch, clockwise direction
  • End 2 thread: 20 threads per inch
  • Stud center to end length: 9.460 in.

Detailed Description

Built for the right upper outer steering position, MOOG ES3474 is a direct-fit steering tie rod end for 1999-2004 Jeep Grand Cherokee models. The powdered-metal gusher bearing design allows grease to reach bearing surfaces, supporting smoother serviceability and consistent steering linkage operation. If you are replacing worn steering components on a Jeep Grand Cherokee, ES3474 provides the correct geometry and thread specifications for the listed application. This part cross-references Mopar 52088461 for the same application.

What It Helps Address

  • Steering play or looseness at the outer tie rod end
  • Clunking or knocking from worn steering linkage joints
  • Uneven tire wear caused by worn front steering components
  • Imprecise steering feel during lane changes or turns
  • Grease retention issues in a serviceable steering joint

Installation Notes and Tips

Fits 1999-2004 Jeep Grand Cherokee, right upper outer. Verify thread direction, thread size, and installed length before installation. After replacement, have the front-end alignment checked to confirm steering wheel center and toe settings. Use the grease fitting during routine service if your maintenance schedule calls for lubrication.

Quality Assurance

MOOG backs this outer tie rod end with superior materials and rigorous testing to support reliable performance in steering service. The design focuses on fit accuracy and easier installation for the specified Jeep Grand Cherokee application.

Related reading

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2004JeepGrand CherokeeRight Upper Outer9.46 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2003JeepGrand CherokeeRight Upper Outer9.46 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2002JeepGrand CherokeeRight Upper Outer9.46 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2001JeepGrand CherokeeRight Upper Outer9.46 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2000JeepGrand CherokeeRight Upper Outer9.46 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
1999JeepGrand CherokeeRight Upper Outer9.46 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
Directly replaces or cross-references 16 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Mevotech Supreme — MES3474MOOG Chassis Products — ES3474Mopar — 5208846145A081946A0819A269-3156401-1819401-1819B531-2656125804361358043ES3474EJTE1521T3474TO96062XES3474
