Moog ES3490 Steering Tie Rod End - Left OuterOE Quality 60-Day Returns
Part #: ES3490

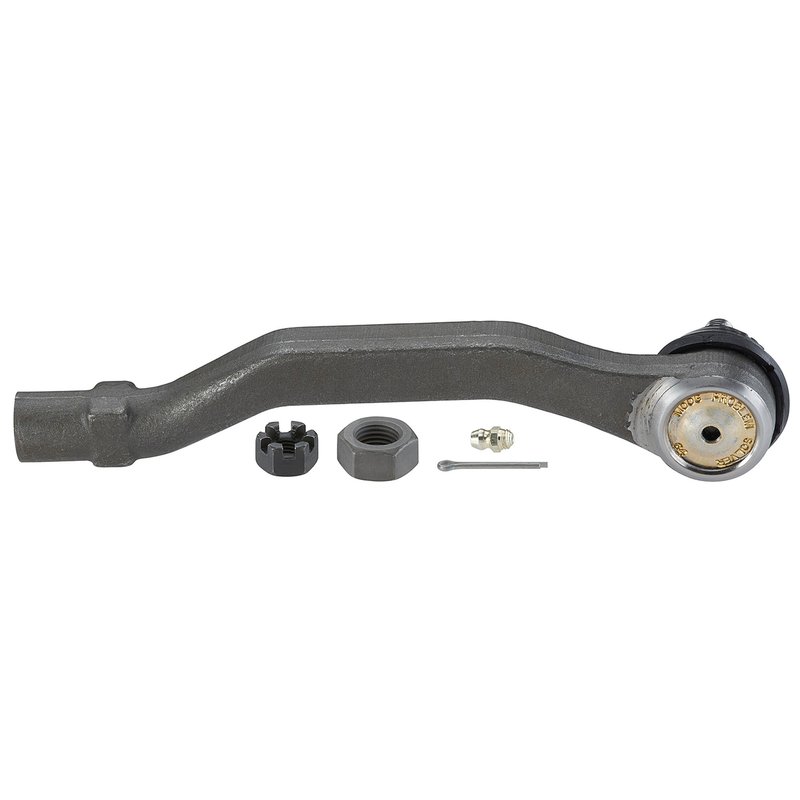

Moog ES3490 Steering Tie Rod End - Left Outer

Left Outer
13 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$44.81Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Acura and Honda, Accord, CL, and TL
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Steering Tie Rod End options

MOOG ES3490 Outer Tie Rod End

MOOG ES3490 is an outer tie rod end built for direct steering service on select Acura and Honda applications. It combines a greaseable design, a dust boot, and application-specific thread details to support precise steering response and straightforward replacement work.

Key Features

  • Outer tie rod end for steering linkage service
  • Greaseable design for routine maintenance
  • Dust boot included to help protect internal components
  • Bent body style for the listed steering application
  • Female end configuration with 14.0 mm and 10.0 mm thread diameters
  • Clockwise thread direction on End 1 with 1.5 mm pitch; End 2 uses 1.25 mm pitch
  • Stud center-to-end length: 8.580 in.

Detailed Description

MOOG ES3490 is an outer tie rod end engineered for steering systems on 1998-2002 Honda Accord, 1999-2003 Acura TL, and 2001-2003 Acura CL left outer positions. The greaseable construction supports serviceability, while the included dust boot helps shield the joint from road contamination. With its bent profile and specified thread dimensions, ES3490 is built to match the listed steering geometry and simplify replacement on the correct application. This part cross-references Beck/Arnley 101-4619 for the same application.

What It Helps Address

  • Loose or vague steering feel
  • Clunking or play in the outer steering linkage
  • Uneven front tire wear related to steering alignment issues
  • Damaged or worn tie rod end joints
  • Contamination entering the steering joint area

Installation Notes and Tips

Fits 2001-2003 Acura CL, left outer. Fits 1999-2003 Acura TL, left outer. Fits 1998-2002 Honda Accord, left outer. Verify thread direction, thread pitch, and stud length against the removed part before installation. After replacement, a professional wheel alignment is recommended to restore steering geometry. MOOG ES3490 is also referenced by MOOG Chassis Products ES3490 and Mevotech Supreme MES3490.

Quality Assurance

MOOG backs this outer tie rod end with superior materials and rigorous testing to support reliable steering performance and consistent fitment on the listed Acura and Honda applications.

BrandMoog
Part NumberES3490
End 1 GenderFemale
End 2 GenderFemale
Dust Boot IncludedYes
TypeBent
End 2 Thread Diameter10.0
GreaseableYes
End 1 Thread DirectionClockwise
End 2 Thread Pitch1.25
End 1 Thread Pitch1.5
Length Stud Center to End8.580
End 1 Thread Diameter14.0

This part fits 13 vehicles. Search below:

YearMakeModelPositionNotes
2003AcuraCLLeft OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2003AcuraTLLeft OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2002AcuraCLLeft OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2002AcuraTLLeft OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2002HondaAccordLeft OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2001AcuraCLLeft OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2001AcuraTLLeft OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2001HondaAccordLeft OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2000AcuraTLLeft OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2000HondaAccordLeft OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
1999AcuraTLLeft OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
1999HondaAccordLeft OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
1998HondaAccordLeft OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

101-4619534-62053560S84A01ES3490MES3490T3490

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
