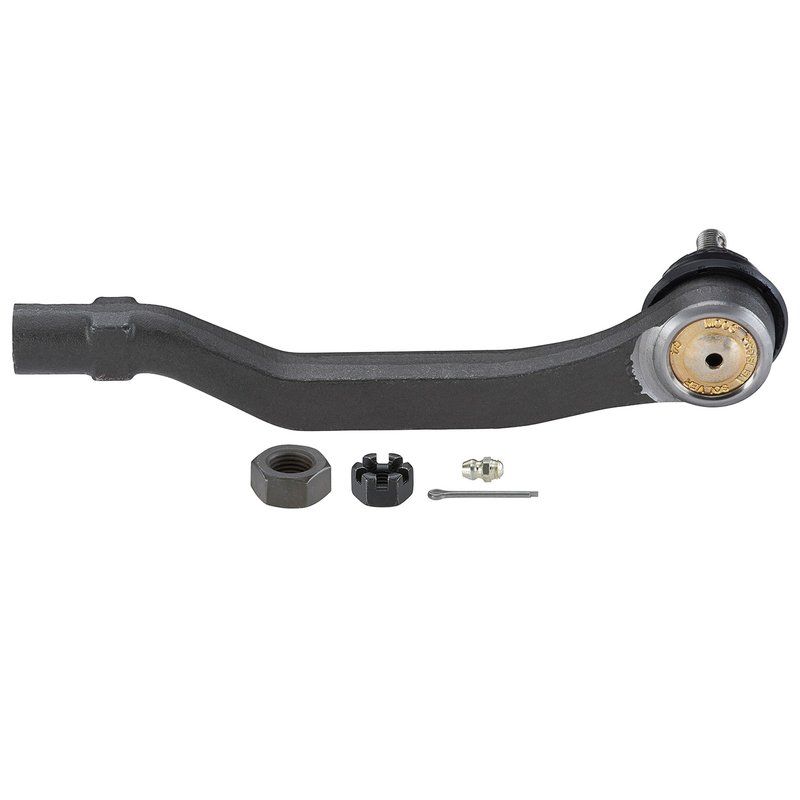

Moog ES3491 Steering Tie Rod End - Right Outer

MOOG ES3491 Outer Tie Rod End

MOOG ES3491 is an outer tie rod end for the right outer steering position on select Acura and Honda applications. It uses a bent design, female ends, a greaseable service point, and a dust boot to support consistent steering response and easier maintenance.

Key Features

• Outer tie rod end for steering linkage service
• Bent body design for the specified application
• Female end configuration with 14.0 mm end 1 thread diameter and 10.0 mm end 2 thread diameter
• Clockwise end 1 thread direction with 1.5 mm pitch; end 2 thread pitch is 1.25 mm
• Greaseable design for routine lubrication service
• Dust boot included to help protect the joint area
• Stud center to end length: 8.580

Detailed Description

Built for steering repair work, the MOOG ES3491 outer tie rod end is a direct-fit steering component for 2001-2003 Acura CL right outer, 1999-2003 Acura TL right outer, and 1998-2002 Honda Accord right outer applications. This part number is commonly searched as MOOG ES3491 for Acura CL, Acura TL, and Honda Accord steering service, especially when replacing worn outer tie rod hardware on the right side.

MOOG uses materials and testing standards aimed at dependable performance, while its problem-solving design approach supports a smoother installation process. This part cross-references Beck/Arnley 101-4636 for the same application.

What It Helps Address

• Steering play or looseness at the outer tie rod end
• Uneven front tire wear caused by worn steering linkage components
• Clunking or knocking from the front steering area
• Imprecise steering feel during lane changes or turns
• Service needs on a right outer tie rod end for Acura CL, Acura TL, or Honda Accord

Installation Notes and Tips

Verify thread direction, thread pitch, and end diameters before installation. After replacing the outer tie rod end, a professional wheel alignment is recommended to restore steering geometry. Confirm the right outer position and match the vehicle year and model exactly before ordering.

Quality Assurance

MOOG steering components are backed by material selection and testing practices focused on reliable fit and function. The greaseable design and included dust boot support serviceability and joint protection in regular steering maintenance.
