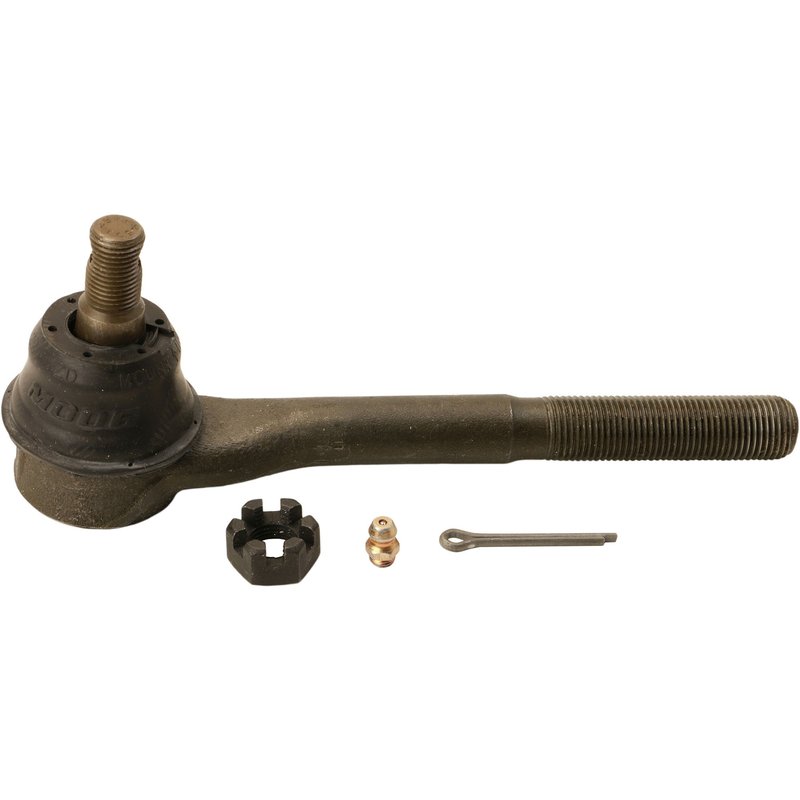

Moog ES3494 Steering Tie Rod End - Inner

MOOG ES3494 Inner Tie Rod End

MOOG ES3494 is an inner tie rod end built for steering systems that need precise movement and dependable road feel. It uses a straight design with a male-to-male configuration, a greaseable service point, and a dust boot to help protect the joint from contamination.

Compatible with Ford Crown Victoria, Lincoln Town Car, and Mercury Grand Marquis applications, this MOOG inner tie rod end is a direct-fit steering component for a wide range of rear-wheel-drive sedan platforms. The ES3494 part number is commonly searched for inner steering repair on these vehicles.

Key Features

• Inner steering tie rod end for steering gear and related components
• Straight design with male end connections
• Greaseable construction for serviceable lubrication
• Dust boot included to help shield the joint
• End 1 thread direction: clockwise
• End 1 thread diameter: 16.0 mm with 1.5 pitch
• End 2 threads per inch: 20
• Length from stud center to end: 6.530 in.

Detailed Description

MOOG ES3494 is engineered as an inner tie rod end for steering linkage repair on Ford Crown Victoria, Lincoln Town Car, and Mercury Grand Marquis models, along with related platform applications listed in the fitment data. MOOG uses tested materials and problem-solving design details to support consistent steering response and straightforward installation. The greaseable design and included dust boot help support long-term serviceability in demanding front-end steering systems.

This part cross-references Mevotech Supreme MES3494 and MAS Industries TI85470 for the same application. The ES3494 part number is also used in interchange listings for several OE and aftermarket references.

What It Helps Address

• Loose or vague steering feel from worn inner tie rod joints
• Steering play caused by internal joint wear
• Noise or clunking from front steering linkage movement
• Contamination-related wear in the steering joint area
• Service issues on high-mileage Ford Crown Victoria, Lincoln Town Car, and Mercury Grand Marquis steering systems

Installation Notes and Tips

Verify thread direction, thread size, and overall length before installation. This ES3494 inner tie rod end is a straight, male-ended steering component, so matching the original steering gear configuration is important for proper fitment. After installation, inspect alignment and steering linkage condition to confirm the repair is complete.

Fits 1992-2002 Ford Crown Victoria, Inner. Fits 1981-2002 Lincoln Town Car, Inner. Fits 1979-2002 Mercury Grand Marquis, Inner. Fits 1987-1991 Ford LTD Crown Victoria, Inner. Fits 1987-1991 Mercury Colony Park, Inner. Fits 1979-1986 Ford LTD, Inner. Fits 1980-1983 Lincoln Mark VI, Inner. Fits 1979-1982 Mercury Marquis, Inner. Fits 1980 Lincoln Continental, Inner.

Quality Assurance

MOOG backs this steering component with superior materials and rigorous testing to support reliable performance in service. The ES3494 is built for consistent operation in inner steering applications where durability and installation accuracy matter.
