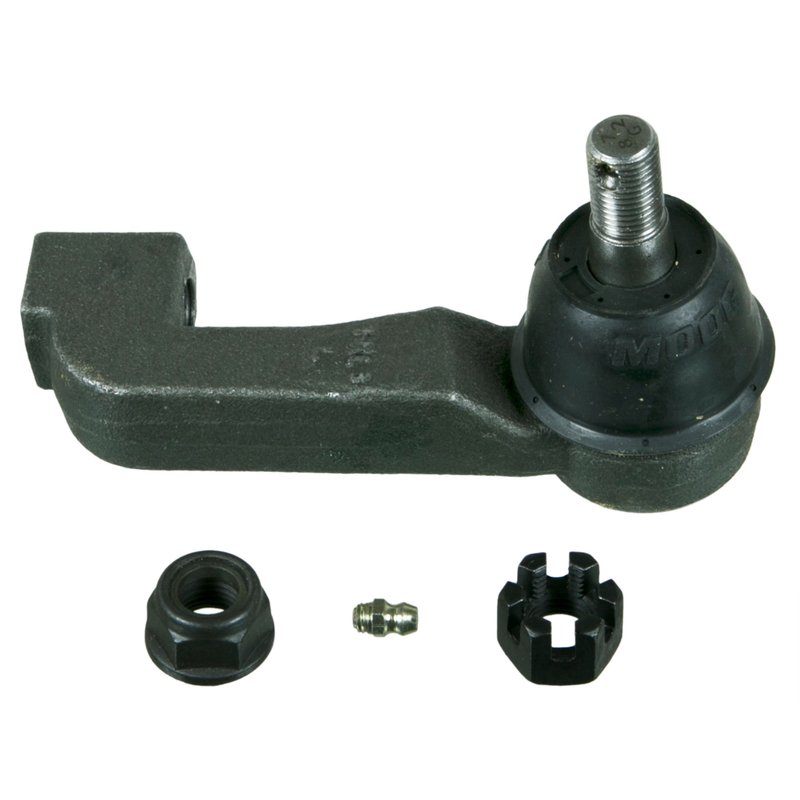

Moog ES3535 Steering Tie Rod End - Left Outer

MOOG ES3535 Outer Tie Rod End

MOOG ES3535 is an outer steering tie rod end built for precise steering response and dependable service. It is a direct-fit replacement for the left outer position on select Jeep Liberty models, including 2002-2007 Jeep Liberty applications.

• Outer steering tie rod end for the left outer position
• Greaseable design for routine serviceability
• Dust boot included to help protect the joint
• Female end configuration with 16.0 mm x 1.5 thread on one end and 14.0 mm x 1.5 thread on the other
• 4.920 in. stud center-to-end length
• 360-degree rotation noted for steering tie rod end applications with straight suspension ball joint and full ball stud

Fitment and Application

Fits 2002-2007 Jeep Liberty, left outer. This part number, ES3535, is listed for Jeep Liberty steering service where the outer tie rod end needs replacement at the left outer position. For buyers searching for a Jeep Liberty outer tie rod end or MOOG ES3535 steering tie rod end, this listing matches the confirmed application data.

MOOG ES3535 is engineered with superior materials and tested for consistent performance in steering service. The greaseable construction supports maintenance, while the included dust boot helps shield the joint from road contamination. This part cross-references Gates 41083 for the same application.

What It Helps Address

• Loose or imprecise steering feel
• Clunking or play at the outer tie rod end
• Uneven front tire wear related to steering linkage wear
• Steering response issues from a worn left outer tie rod end
• Contamination at the joint due to a damaged or missing boot

Installation Notes and Tips

Verify thread direction, thread diameters, and center-to-end length before installation. MOOG ES3535 uses a female end configuration with 16.0 mm x 1.5 and 14.0 mm x 1.5 thread specifications, so matching the existing steering linkage is important. After replacement, perform a front-end alignment on the Jeep Liberty to restore proper steering geometry.

Quality Assurance

MOOG steering components are backed by material selection and testing focused on reliable fit and function. ES3535 is part of MOOG chassis steering service parts for the Jeep Liberty platform.
