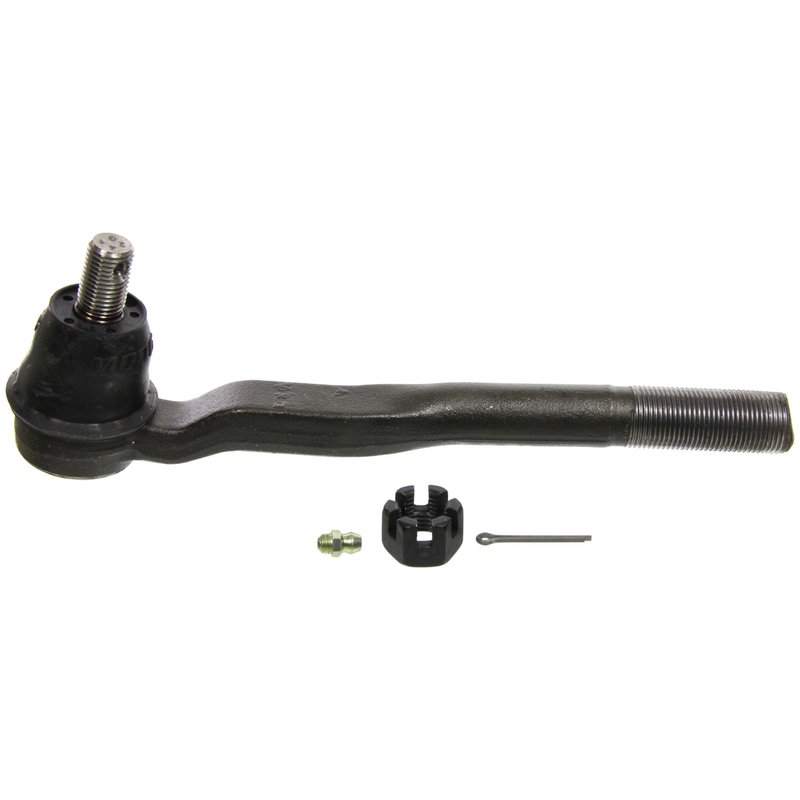

Moog ES3547 Steering Tie Rod End - Right Outer
| Brand | Moog ES3547 |
|---|---|
| Position | Right Outer |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Dust Boot Included | Yes |
| Type | Bent |
| End 2 Thread Diameter | 14.0 |
| Greaseable | Yes |
| End 1 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.5 |
| End 1 Thread Pitch | 1.5 |
| Length Stud Center to End | 8.650 |
| End 1 Thread Diameter | 20.0 |
| Fits | Toyota · 7 vehicles |
Cross-references Beck/Arnley 101-4818, Dorman - OE Solutions 534-644 and Mevotech Supreme MES3547 for the same application. See all 19.
MOOG ES3547 Outer Tie Rod End
The MOOG ES3547 outer tie rod end is built for steering service where precise linkage movement and dependable socket performance matter. It fits 1996-2002 Toyota 4Runner, right outer, and uses a bent design with a greaseable socket and dust boot for added protection.
Key Features
- Greaseable socket design helps maintain smooth steering joint movement.
- Dust boot included to help shield the joint from road contamination.
- Bent body design supports proper steering linkage geometry.
- Female and male threaded ends for direct steering connection.
- MOOG ES3547 is backed by materials and testing focused on dependable performance.
Detailed Description
Use the MOOG ES3547 when replacing a worn outer tie rod end on a Toyota 4Runner steering system. The 20.0 mm female end, 14.0 mm male end, and 1.5 thread pitch specification support a precise fit, while the clockwise thread direction on the female side matches the intended application. The greaseable construction and included boot help reduce wear from contamination and keep the steering joint operating consistently. This part cross-references Mevotech Supreme (e.g., MES3547) for the same application.
What It Helps Fix
- Steering looseness caused by wear in the outer tie rod end.
- Clunking or play from a deteriorated steering linkage joint.
- Uneven steering response from a worn socket assembly.
- Contamination-related joint wear from damaged boot protection.
Installation Notes and Tips
Fits 1996-2002 Toyota 4Runner, right outer. Verify thread direction, thread diameter, and stud length before installation. After replacement, inspect alignment settings and steering linkage condition to confirm the repair is complete. MOOG ES3547 is engineered for fast, hassle-free installation in the intended steering application.
Quality Assurance
MOOG steering components are backed by superior materials and rigorous testing for reliable service performance.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2002 | Toyota | 4Runner | Right Outer | Greasable socket design included for corrosion and wear minimization on Suspension Ball Joint. |
| 2001 | Toyota | 4Runner | Right Outer | Greasable socket design included for corrosion and wear minimization on Suspension Ball Joint. |
| 2000 | Toyota | 4Runner | Right Outer | Greasable socket design included for corrosion and wear minimization on Suspension Ball Joint. |
| 1999 | Toyota | 4Runner | Right Outer | Greasable socket design included for corrosion and wear minimization on Suspension Ball Joint. |
| 1998 | Toyota | 4Runner | Right Outer | Greasable socket design included for corrosion and wear minimization on Suspension Ball Joint. |
| 1997 | Toyota | 4Runner | Right Outer | Greasable socket design included for corrosion and wear minimization on Suspension Ball Joint. |
| 1996 | Toyota | 4Runner | Right Outer | Greasable socket design included for corrosion and wear minimization on Suspension Ball Joint. |
