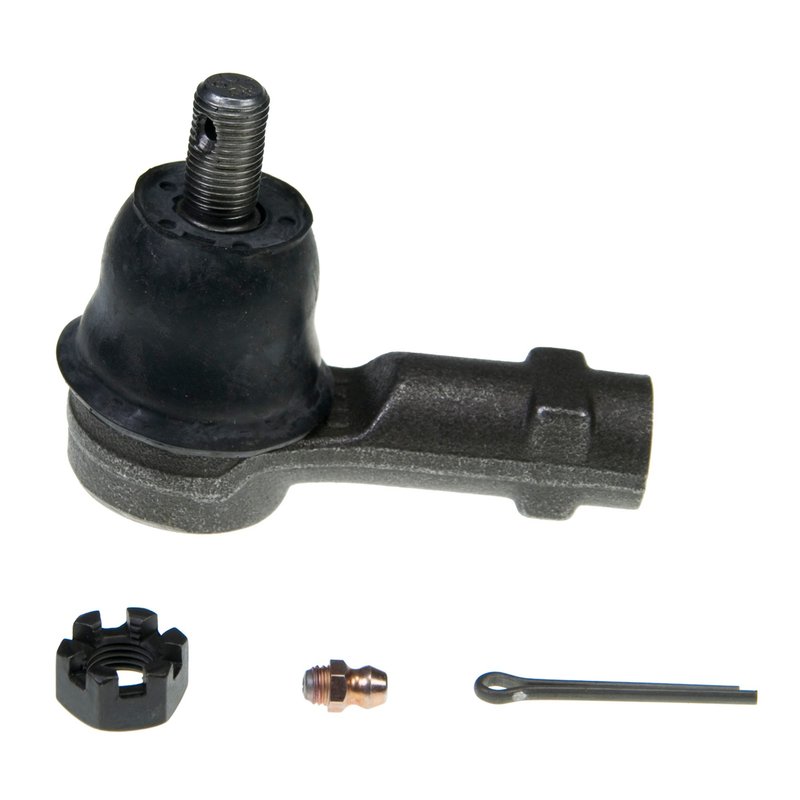

Moog ES3616 Steering Tie Rod End - Outer
MOOG ES3616 Outer Tie Rod End
MOOG ES3616 is an outer tie rod end built for steering service on the 2001-2006 Hyundai Santa Fe. It uses a bent design, greaseable construction, and a dust boot to support smoother steering response and dependable joint protection.
Key Features
- Outer steering tie rod end for the Hyundai Santa Fe
- Bent body design for application-specific steering geometry
- Greaseable design for routine maintenance
- Dust boot included to help protect the joint
- Female end configuration with 14.0 mm and 12.0 mm thread diameters
- Clockwise thread direction on End 1
- Stud center-to-end length: 2.860 in.
Detailed Description
Built for steering and suspension repair, the MOOG ES3616 outer tie rod end is engineered for the 2001-2006 Hyundai Santa Fe, outer position. MOOG uses superior materials and testing standards to support consistent performance, while problem-solving design details help make installation more straightforward. This part cross-references Beck/Arnley 101-4991 and Dorman - OE Solutions 534-375 for the same application. The ES3616 is a practical choice when replacing a worn Hyundai Santa Fe outer tie rod end, especially when steering looseness or alignment-related wear is present.
What It Helps Address
- Steering play or looseness at the outer tie rod end
- Uneven tire wear related to worn steering linkage components
- Noisy or rough steering feel during turning
- Joint contamination from damaged or missing boot protection
- Maintenance needs on greaseable steering components
Installation Notes and Tips
Fits 2001-2006 Hyundai Santa Fe, outer. Verify thread diameter, thread pitch, and overall length against the original part before installation. After replacement, a professional wheel alignment is recommended to restore steering geometry and tire wear characteristics. The greaseable design allows periodic lubrication during service intervals.
Quality Assurance
MOOG backs this outer tie rod end with materials selection and testing practices aimed at reliable steering performance. The ES3616 is part of MOOG chassis steering hardware, and the OE-style fitment details support accurate replacement on the specified Hyundai Santa Fe applications.
| Brand | Moog |
|---|---|
| Part Number | ES3616 |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Dust Boot Included | Yes |
| Type | Bent |
| End 2 Thread Diameter | 12.0 |
| Greaseable | Yes |
| End 1 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.25 |
| End 1 Thread Pitch | 1.5 |
| Length Stud Center to End | 2.860 |
| End 1 Thread Diameter | 14.0 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Hyundai | Santa Fe | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2005 | Hyundai | Santa Fe | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2004 | Hyundai | Santa Fe | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2003 | Hyundai | Santa Fe | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2002 | Hyundai | Santa Fe | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2001 | Hyundai | Santa Fe | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
