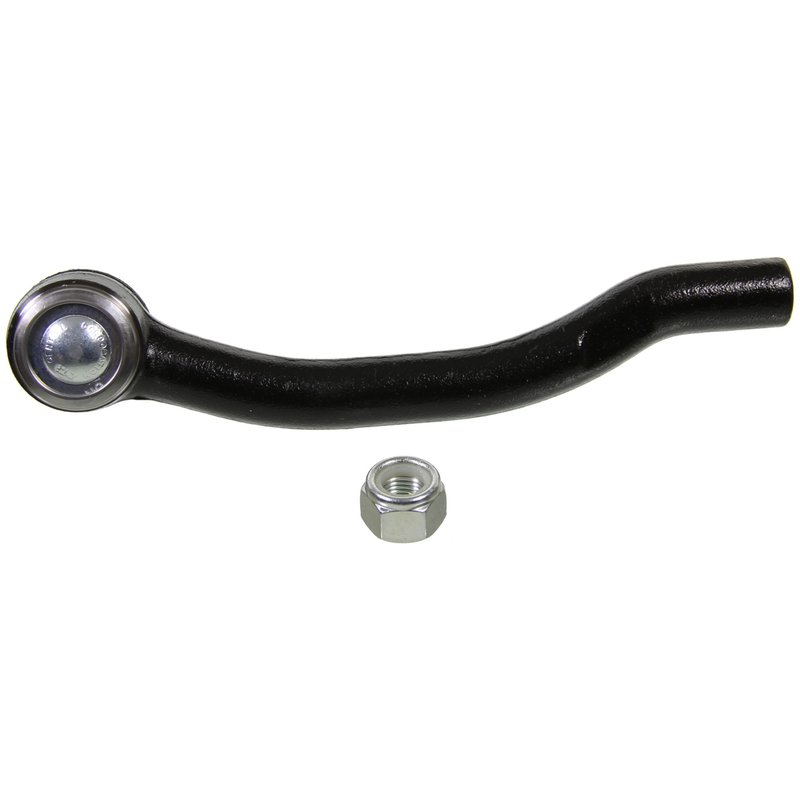

Moog ES3717 Steering Tie Rod End - Left Outer

MOOG ES3717 Outer Tie Rod End

MOOG ES3717 is an outer tie rod end built for steering repair on select Honda and Acura applications. It uses a bent design, female ends, and a dust boot to support precise steering linkage service on the left outer position.

Key Features

• Outer tie rod end for steering system repair
• Bent design for the specified application
• Female end configuration with 14.0 mm thread diameter
• Clockwise thread direction on End 1 and 1.5 mm thread pitch
• End 2 thread pitch: 1.25 mm
• Dust boot included
• Non-greaseable design
• Length stud center to end: 8.560

Detailed Description

MOOG ES3717 is an outer tie rod end for steering and suspension service where worn linkage parts can affect alignment and steering response. Built with superior materials and tested for durability, this part is intended for direct replacement on the left outer side of 2003-2008 Honda Pilot and 2001-2006 Acura MDX. If you are searching for a Honda Pilot left outer tie rod end or an Acura MDX steering tie rod replacement, ES3717 provides the correct fitment details for those applications. This part cross-references Beck/Arnley 101-5327 for the same application.

What It Helps Address

• Loose or vague steering feel
• Uneven front tire wear caused by worn steering linkage
• Clunking or play in the outer tie rod area
• Alignment issues after steering component wear
• Restoration of steering response on Honda Pilot and Acura MDX models

Installation Notes and Tips

Install ES3717 on the left outer steering position only for the listed vehicles. Verify thread direction, thread pitch, and overall length before installation, and perform a wheel alignment after replacement. Because this is a non-greaseable tie rod end with a dust boot, inspect the boot and adjacent steering components during service to confirm the rest of the linkage is in good condition.

Quality Assurance

MOOG backs this steering tie rod end with materials selection and testing focused on consistent performance and easier installation. Part number ES3717 is engineered for the specified fitment and steering application.
