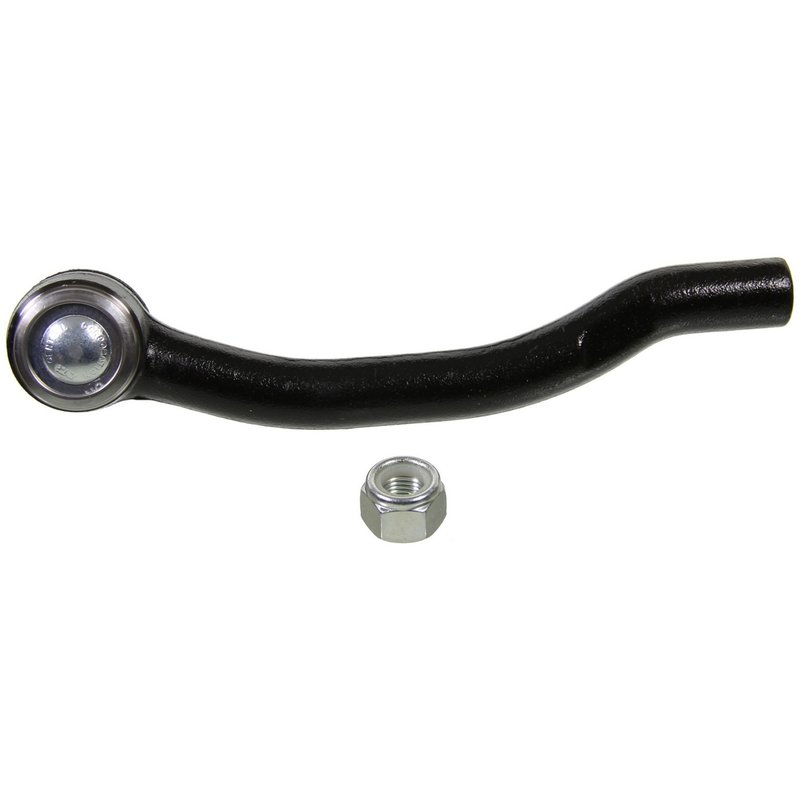

Moog ES3717 Steering Tie Rod End - Left Outer

Overview of Moog ES3717 Steering Tie Rod End

The Moog ES3717 steering tie rod end is designed specifically for Acura MDX and Honda Pilot models, providing reliable steering performance. This bent-type tie rod end features female ends on both sides and includes a dust boot for protection against contaminants.

• Compatible with Acura MDX and Honda Pilot vehicles
• Bent type design with female ends on both sides
• Dust boot included to protect internal components
• End 1 thread diameter: 14.0 mm, clockwise thread direction, 1.5 thread pitch
• End 2 thread diameter: 14.0 mm, 1.25 thread pitch
• Length from stud center to end: 8.560 inches
• Non-greaseable design for maintenance-free operation

Detailed Product Description

The Moog ES3717 steering tie rod end is engineered to meet the specific steering requirements of Acura MDX and Honda Pilot vehicles. Featuring a bent design, this tie rod end ensures proper alignment and fitment within the steering system. Both ends are female, with precise thread diameters of 14.0 mm, but differing thread pitches—1.5 on End 1 and 1.25 on End 2—allowing for secure and accurate installation. The clockwise thread direction on End 1 facilitates correct assembly. A dust boot is included to shield the joint from dirt and moisture, extending the component's service life. Although this part is not greaseable, it is designed for durability and consistent performance under normal driving conditions.

Common Applications and Issues Addressed

• Restores proper steering response and alignment on Acura MDX and Honda Pilot
• Eliminates excessive play or looseness in the steering linkage
• Prevents uneven tire wear caused by worn tie rod ends
• Reduces steering noise and vibration from damaged joints
• Replaces corroded or damaged bent-type tie rod ends for safe vehicle handling

Installation Notes and Tips

• Verify compatibility with your specific Acura MDX or Honda Pilot model year before installation
• Ensure correct thread engagement by matching thread pitch and direction on both ends
• Use proper tools to avoid damaging the dust boot during installation
• Check wheel alignment after installation to maintain optimal steering performance
• Non-greaseable design means no additional lubrication is required during service

Quality Assurance and Warranty

Moog parts are manufactured to meet or exceed OEM specifications, ensuring reliable fit and function. The ES3717 steering tie rod end undergoes rigorous quality control to provide consistent performance. While specific warranty details may vary, Moog typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
