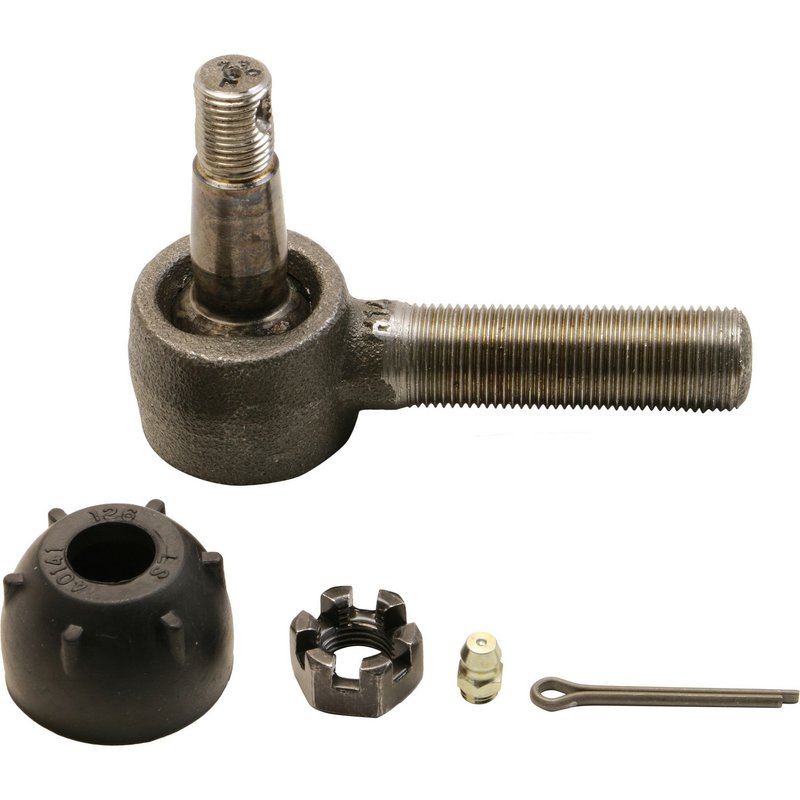

Moog ES62L Steering Tie Rod End

MOOG ES62L Steering Tie Rod End

MOOG ES62L is a steering tie rod end built for Jeep steering systems that need precise linkage movement and dependable road feel. It uses a straight design with male ends and application-specific thread sizing for direct replacement on listed Jeep CJ and Wagoneer positions.

Key Features

• Straight steering tie rod end design
• Male end configuration on both sides
• End 1 thread direction: counterclockwise
• End 1 thread diameter: 0.687 in.
• End 1 threads per inch: 18
• End 2 threads per inch: 20
• Length, stud center to end: 3.120 in.
• MOOG ES62L cross-references Mevotech Supreme MES62L for the same application

Detailed Description

MOOG ES62L is an inner steering tie rod end engineered for Jeep steering service where correct thread direction, length, and end configuration matter. The part number ES62L is listed for 1972-1973 Jeep Wagoneer at the pitman arm, 1972-1983 Jeep CJ5 at the right outer steering arm to steering arm position, 1976-1986 Jeep CJ7 at the right outer steering arm to steering arm position, 1981-1985 Jeep Scrambler at the right outer steering arm to steering arm position, and 1959-1971 Jeep CJ5 at the left outer position. For buyers searching Jeep CJ5 steering tie rod end replacement or Jeep CJ7 right outer steering linkage parts, ES62L matches the listed applications and dimensions.

What It Helps Address

• Loose or worn steering linkage at the tie rod end
• Steering play or delayed response in Jeep CJ5, CJ7, Scrambler, and Wagoneer applications
• Incorrect thread match during steering component replacement
• Uneven steering feel caused by worn linkage joints
• Service replacement for listed pitman arm and outer steering positions

Installation Notes and Tips

Verify the vehicle year, model, and steering position before installation. Match the counterclockwise thread direction, 18 TPI on end 1, 20 TPI on end 2, and the 3.120-inch stud-center-to-end length to the removed part. Because this is a steering component, final alignment should be checked after installation. Confirm the listed Jeep CJ5, CJ7, Scrambler, or Wagoneer application before ordering ES62L.

Quality Assurance

MOOG backs ES62L with materials selection and testing focused on consistent steering performance and service fit. The brand’s chassis engineering approach emphasizes reliable operation and easier installation for the specified Jeep steering applications.
