Home› Steering > Steering, Gear and Related Components› Moog ES800086 Steering Tie Rod End - Outer
Moog ES800086 Steering Tie Rod End - OuterOE Quality 60-Day Returns
Part #: ES800086

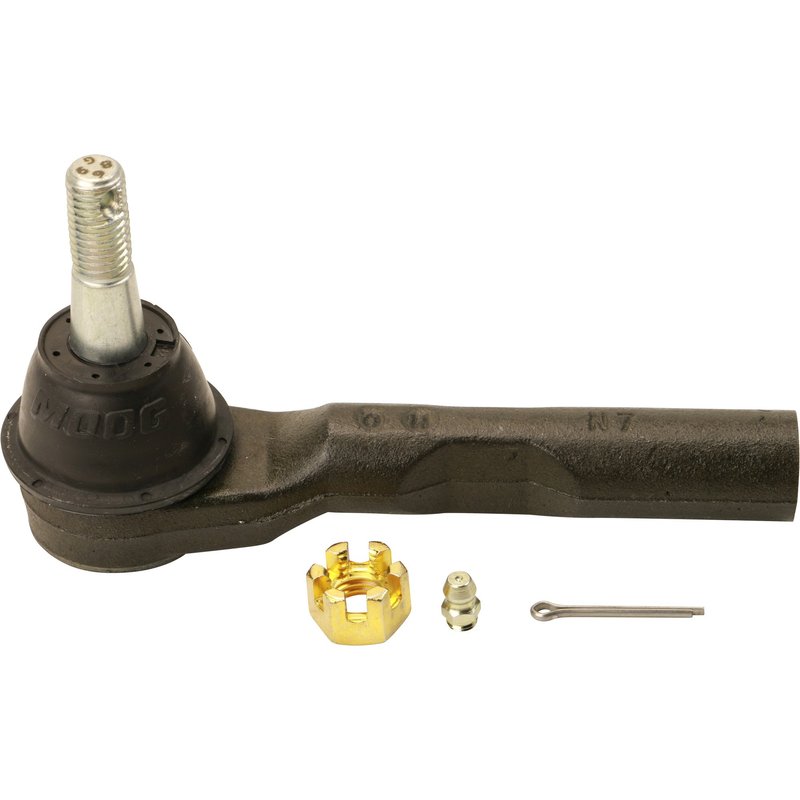

Moog ES800086 Steering Tie Rod End - Outer

Outer
23 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$47.21Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Chevrolet, Pontiac, and Saturn, Aura, G6, and Malibu
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Steering Tie Rod End options

MOOG ES800086 Outer Tie Rod End

MOOG ES800086 is an outer steering tie rod end built for direct replacement service on select Chevrolet Malibu, Pontiac G6, and Saturn Aura applications. It uses a straight, female-to-female design with a dust boot and greaseable construction to support consistent steering feel and serviceability.

Key Features

  • Outer steering tie rod end for steering linkage repair
  • Straight design with female end connections
  • Dust boot included to help protect internal components
  • Greaseable design for routine lubrication service
  • End 1 thread diameter: 14.0 mm, clockwise thread direction
  • End 2 thread diameter: 12.0 mm, 1.75 thread pitch
  • Length from stud center to end: 5.370 in.

Detailed Description

MOOG ES800086 is engineered as an outer tie rod end for steering systems that require precise linkage movement and dependable replacement geometry. The part number ES800086 is listed for 2004-2012 Chevrolet Malibu outer, 2005-2010 Pontiac G6 outer, 2007-2009 Saturn Aura outer, and 2008 Chevrolet Malibu outer applications. For shoppers searching for a Chevrolet Malibu outer tie rod end, Pontiac G6 steering tie rod end, or Saturn Aura outer steering linkage replacement, this MOOG component matches those confirmed vehicle applications.

MOOG uses superior materials and testing standards to support reliable performance, while problem-solving design details help simplify installation and routine service. The greaseable construction and included dust boot are important features for steering components that see regular road exposure and suspension movement. This part cross-references Centric Parts 612.62048 for the same application.

Common Problems This Part Can Address

  • Loose or vague steering response at the front wheels
  • Clunking or play in the outer steering linkage
  • Uneven tire wear caused by worn steering components
  • Steering wheel off-center after tie rod wear or replacement
  • Grease loss and contamination at the tie rod end joint

Installation Notes and Tips

Verify thread direction, thread diameter, and overall length before installation to confirm correct steering linkage fitment. After replacing the outer tie rod end, perform a professional wheel alignment to restore steering geometry and tire wear characteristics. For Chevrolet Malibu, Pontiac G6, and Saturn Aura steering repairs, compare the old part to ES800086 and confirm the outer position before assembly.

Quality Assurance

MOOG steering components are backed by material selection and testing practices intended to support dependable service in steering and suspension repair. ES800086 is built for confirmed OE-style replacement use on the listed applications.

BrandMoog
Part NumberES800086
End 1 GenderFemale
End 2 GenderFemale
Dust Boot IncludedYes
TypeStraight
End 2 Thread Diameter12.0
GreaseableYes
End 1 Thread DirectionClockwise
End 2 Thread Pitch1.75
End 1 Thread Pitch1.5
Length Stud Center to End5.370
End 1 Thread Diameter14.0

This part fits 23 vehicles. Search below:

YearMakeModelSubmodelPositionNotes
2012ChevroletMalibuOuter5.25 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2011ChevroletMalibuOuter5.25 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2010ChevroletMalibuOuter5.25 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2010PontiacG6OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2009ChevroletMalibuOuter5.25 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2009PontiacG6OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2009SaturnAuraOuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2008ChevroletMalibuClassic LTOuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2008ChevroletMalibuClassic LSOuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2008ChevroletMalibuHybridOuter5.25 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2008ChevroletMalibuLTZOuter5.25 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2008ChevroletMalibuLSOuter5.25 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2008ChevroletMalibuLTOuter5.25 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2008PontiacG6OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2008SaturnAuraOuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2007ChevroletMalibuOuter5.25 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2007PontiacG6OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2007SaturnAuraOuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2006ChevroletMalibuOuter5.25 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2006PontiacG6OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2005ChevroletMalibuOuter5.25 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2005PontiacG6OuterEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2004ChevroletMalibuOuter5.25 (in) Length; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

152675831594409022687089269-3396401-2059B401205945A105946A1059A531-225612.6204861362048ES4258ES800086JTE1264MES800086TO90365

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
