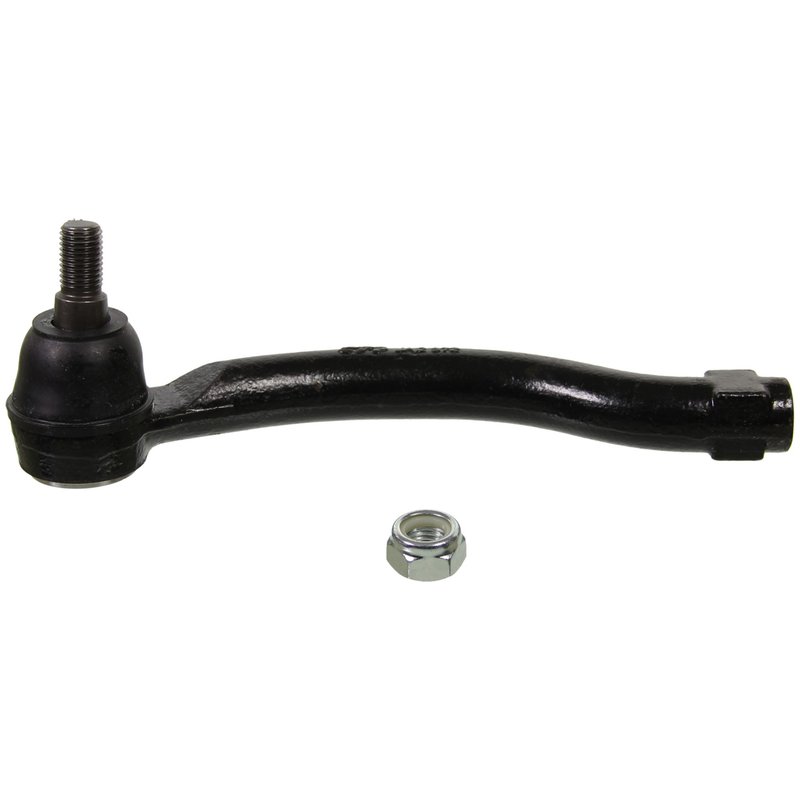

Moog ES800217 Steering Tie Rod End - Right Outer
MOOG ES800217 Outer Tie Rod End
MOOG ES800217 is an outer tie rod end built for precise steering response and dependable service on select Acura TL applications. It uses a bent design, a greaseable construction, and a dust boot to support smooth operation and easier maintenance.
Key Features
- Outer tie rod end for steering linkage service
- Bent design for the specified rack and pinion application
- Greaseable design for routine lubrication
- Dust boot included to help protect the joint
- Female end configuration with 14.0 mm and 12.0 mm thread diameters
- Thread pitch: 1.5 on end 1 and 1.25 on end 2
- Length from stud center to end: 7.820
Fitment Details
Fits 2004-2008 Acura TL, right outer. This application note references simplified design for easier rack and pinion bellows kit installation. MOOG ES800217 is listed for the right outer position on Acura TL models from 2004 through 2008.
Detailed Description
MOOG ES800217 is an outer tie rod end for steering systems that need accurate toe control and stable road feel. The female-to-female configuration, bent body style, and specified thread dimensions support direct replacement on the confirmed Acura TL fitment. If you are searching for a right outer tie rod end for 2004-2008 Acura TL, this part number provides the listed application and steering geometry details needed for a proper match. This part cross-references Beck/Arnley 101-5751 for the same application.
What It Helps Address
- Loose or imprecise steering feel
- Uneven front tire wear caused by worn steering linkage
- Clunking or play at the outer tie rod joint
- Steering pull related to worn toe-setting components
- Service replacement for a damaged right outer tie rod end
Installation Notes and Tips
Confirm the right outer position, thread sizes, and thread direction before installation. Because this part is greaseable, follow the vehicle service schedule and lubricate the joint as specified. After installation on a 2004-2008 Acura TL, perform a wheel alignment to restore steering geometry and tire wear control. Verify the rack and pinion bellows area is properly seated during service.
Quality Assurance
MOOG backs this steering component with superior materials and rigorous testing to support reliable performance. The ES800217 is part of MOOG chassis steering hardware, built for consistent fit and serviceability in the confirmed Acura TL application.
| Brand | Moog |
|---|---|
| Part Number | ES800217 |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Dust Boot Included | Yes |
| Type | Bent |
| End 2 Thread Diameter | 12.0 |
| Greaseable | Yes |
| End 1 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.25 |
| End 1 Thread Pitch | 1.5 |
| Length Stud Center to End | 7.820 |
| End 1 Thread Diameter | 14.0 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Acura | TL | Right Outer | Simplified design for easy rack and pinion bellows kit installation. |
| 2007 | Acura | TL | Right Outer | Simplified design for easy rack and pinion bellows kit installation. |
| 2006 | Acura | TL | Right Outer | Simplified design for easy rack and pinion bellows kit installation. |
| 2005 | Acura | TL | Right Outer | Simplified design for easy rack and pinion bellows kit installation. |
| 2004 | Acura | TL | Right Outer | Simplified design for easy rack and pinion bellows kit installation. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
